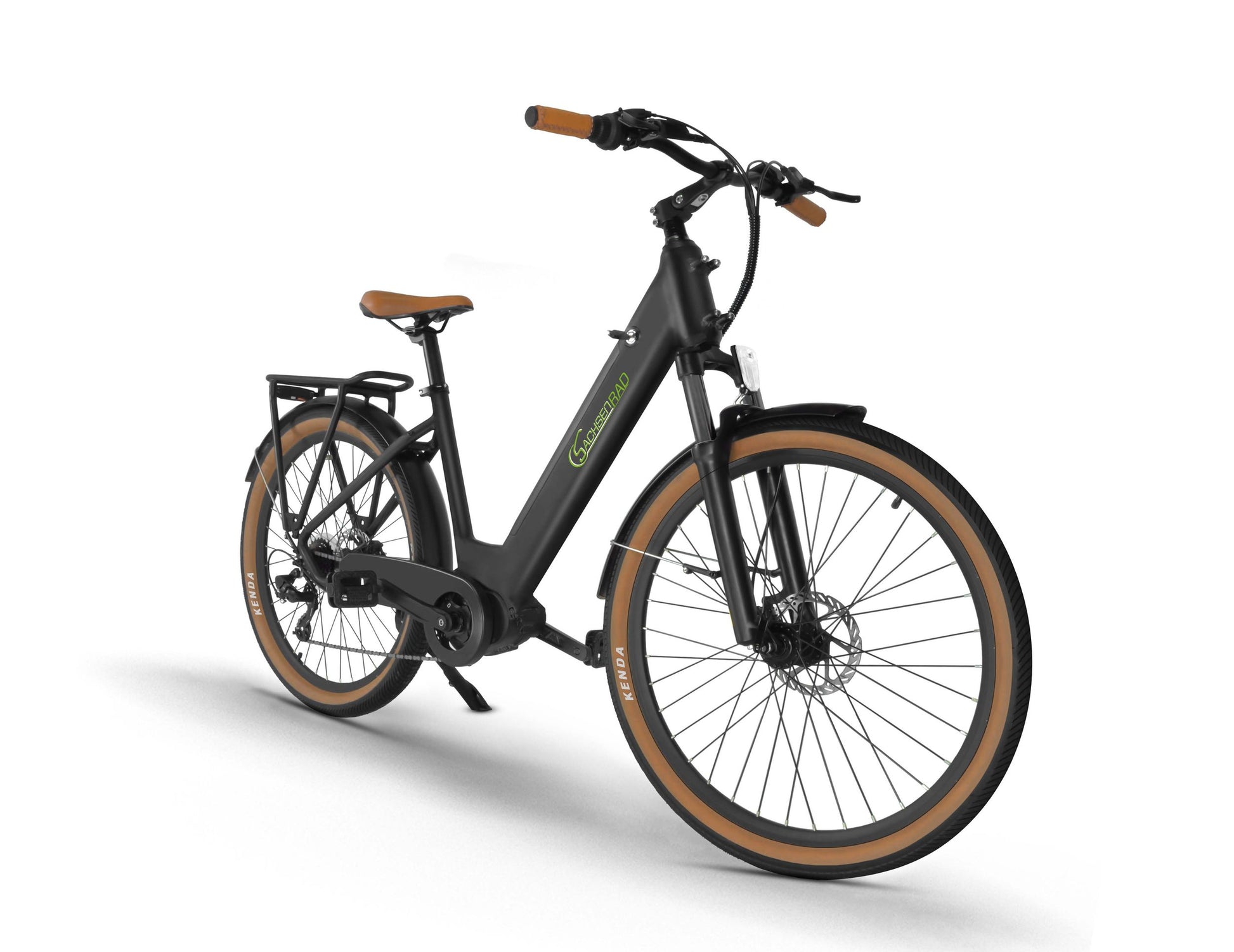

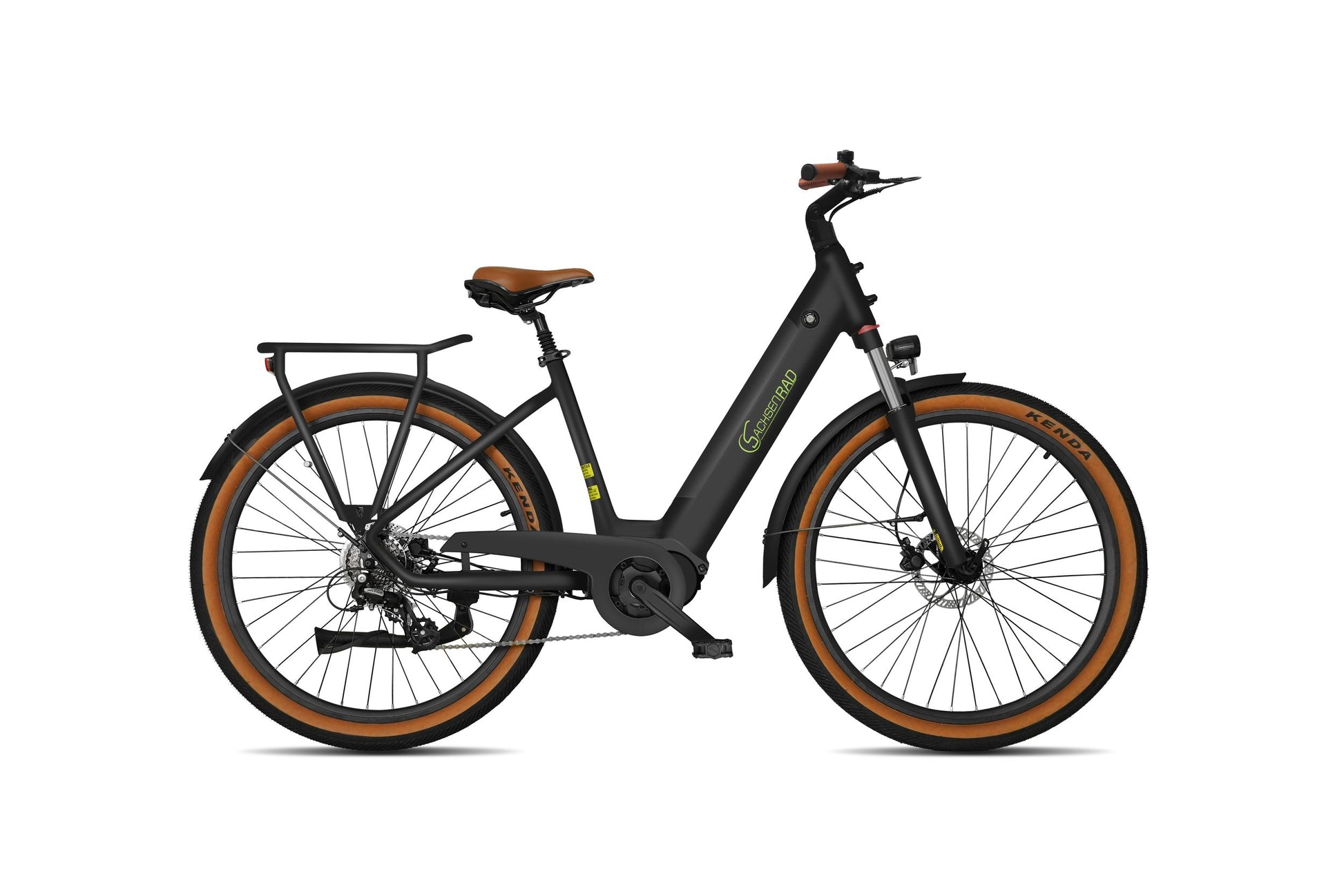

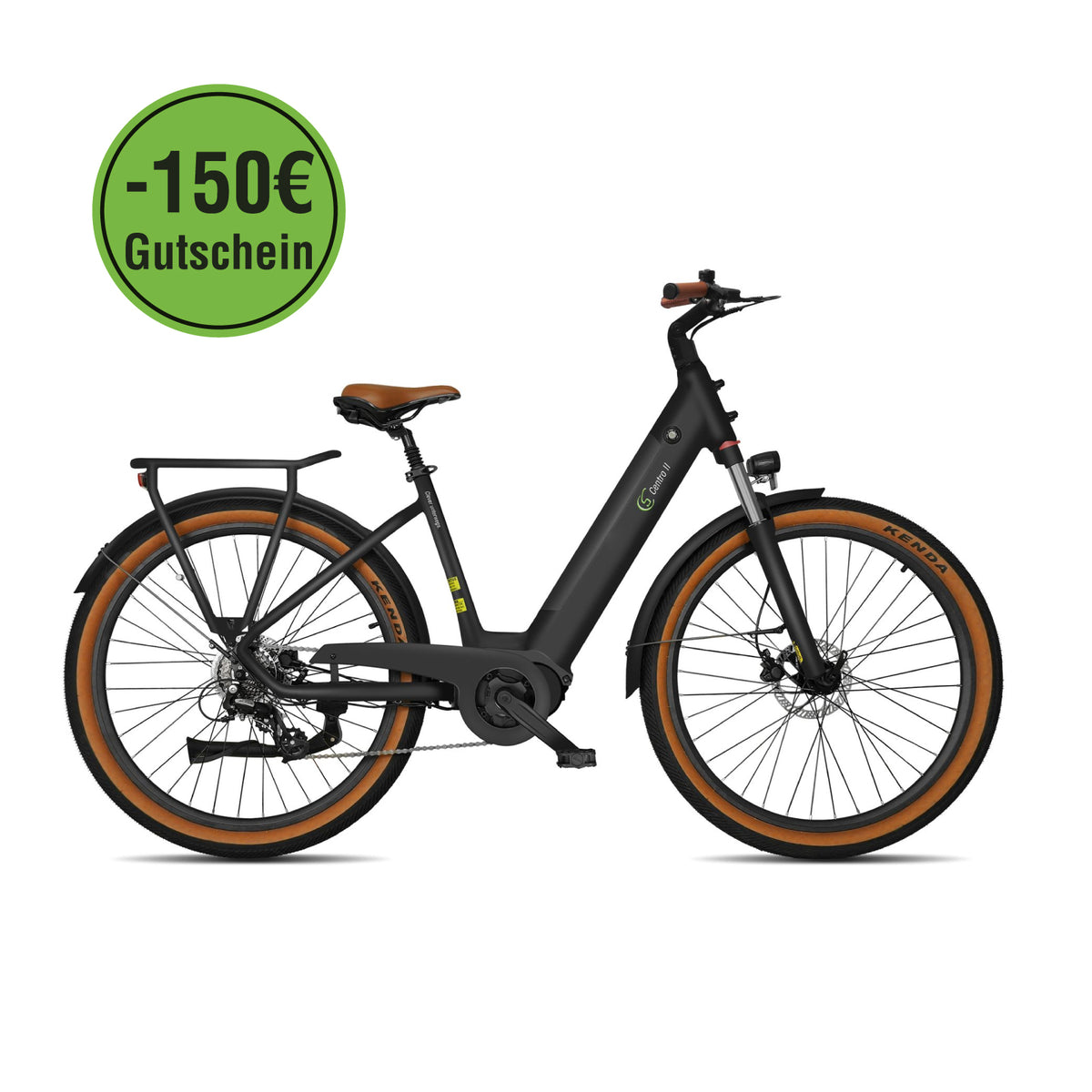

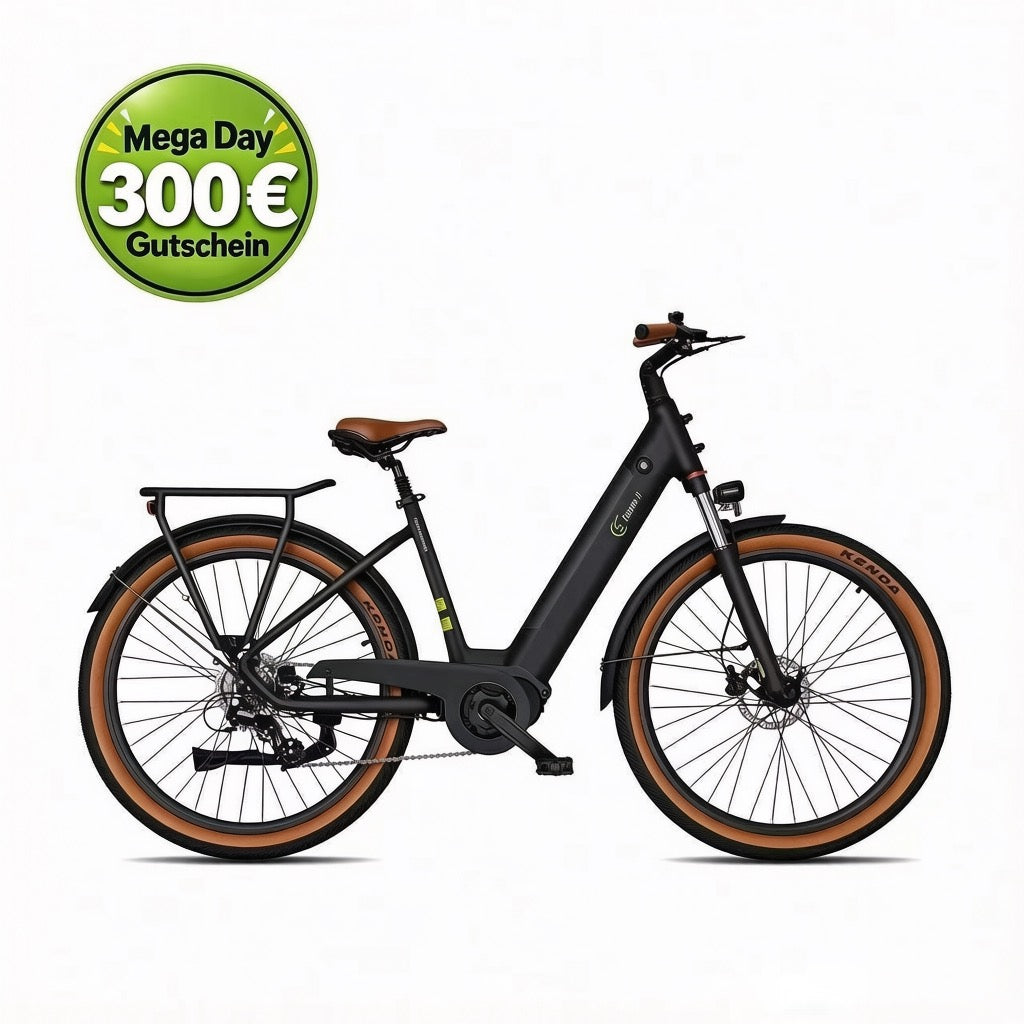

E-SUV CityBike C5 Centro II with anti-theft protection
E-SUV CityBike C5 Centro II with anti-theft protection
SKU:BB12626
Couldn't load pickup availability
THE BEST SUV FOR YOU AND THE ENVIRONMENT
Sports Utility Vehicles – SUVs for short – are finally available for all cycling enthusiasts and e-bike fans! But instead of going around looking for a parking spot on a gas-guzzler, the SachsenRAD C5 Centro II offers you affordable and green mobility. The e-bike not only looks good in the city center, but also gets you there on any field or forest path. Our SUV expertly bridges the gap between off-road and on-road and could be your perfect new company e-bike.
Everything for the forest, park, and field
Thanks to its hydraulic disc brake, wide tires, and above all, its specially developed, powerful mid-drive motor, the C5 Centro II excels on challenging paths. Mud, puddles, gravel, roots, or sand are no longer a problem. The frame is sturdier than that of standard city bikes, helping you maintain control of the bike when riding over rough terrain. The same applies to the mid-drive motor: The motor's position gives you a more familiar riding experience because the drive power is generated exactly where you are accustomed to it by pedaling. You can adjust the stiffness of the sturdy, off-road-capable suspension fork to suit your preference.
Everything for the city
Back in civilization, the C5 SUV e-bike proves to be a city bike with real presence. A sturdy rack for heavy panniers, LED front and rear lights, and mudguards make you ready for the asphalt. As a highlight, SachsenRAD has equipped it with an alarm system – an ideal anti-theft device for any city! And on neglected bike lanes, cobblestones, and tram tracks in the street, you will appreciate the off-road capability of your SachsenRAD SUV even more.
Safe thanks to the alarm system
To protect you even better against theft, the C5 Centro II is equipped with an alarm system. The included key allows you to arm or disarm the alarm system from many meters away. If your two-wheeler is moved without your knowledge, a siren will sound. This ensures that thieves will absolutely attract the attention of those around them!

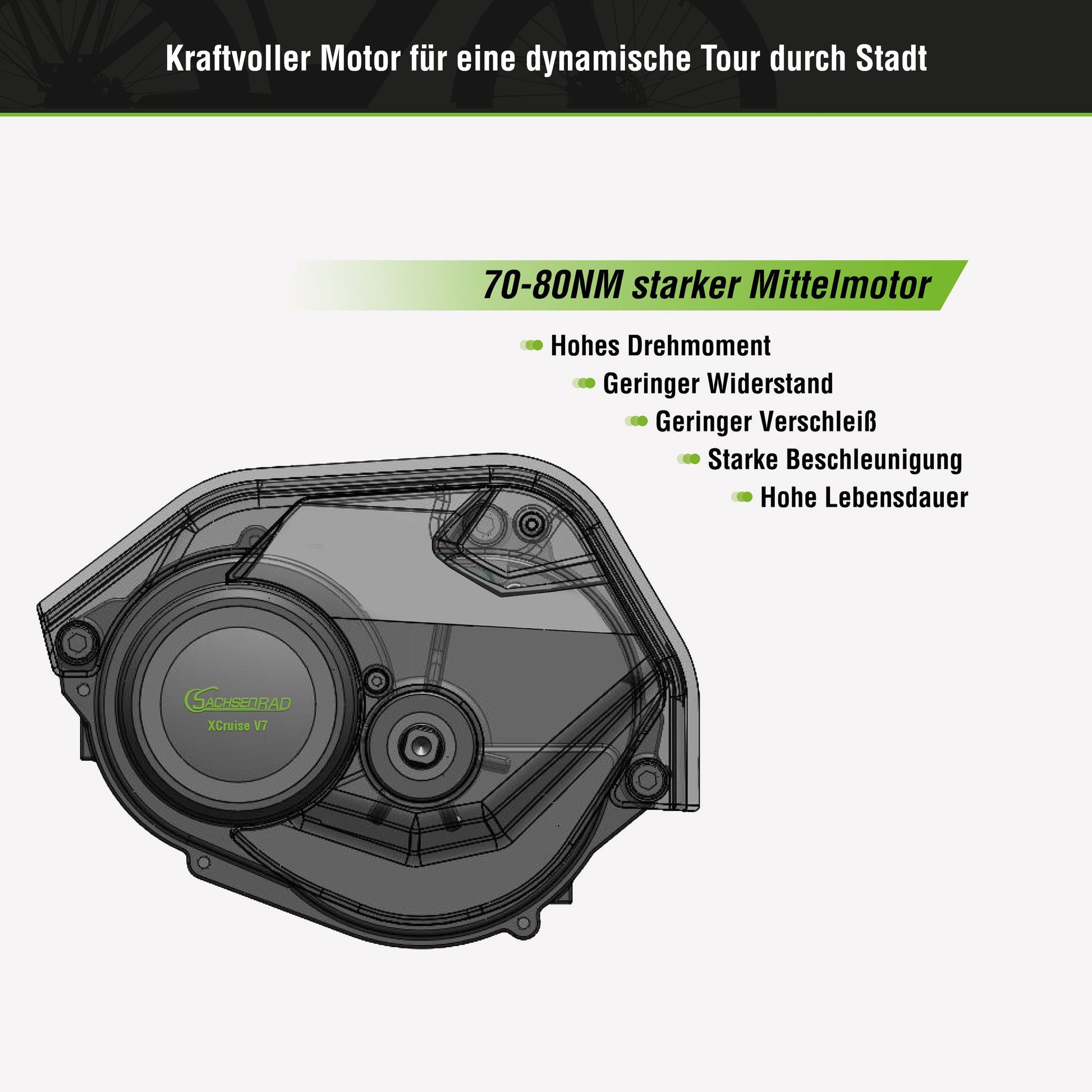

Power thanks to the XCruise V7 mid-drive motor
The C5 is powered by our newly designed M60 mid-drive motor. It delivers an impressive 70 Nm of torque and, thanks to its specially developed torque sensor , precisely registers the force with which you pedal – and adjusts the assistance accordingly. For example, when you are riding up a hill and applying more muscle power, the motor provides more assistance. This makes riding on steep terrain easier and prevents you from breaking a sweat as quickly. This technology also saves up to 30% of the battery capacity, and the pedaling assistance runs much more smoothly and comfortably.

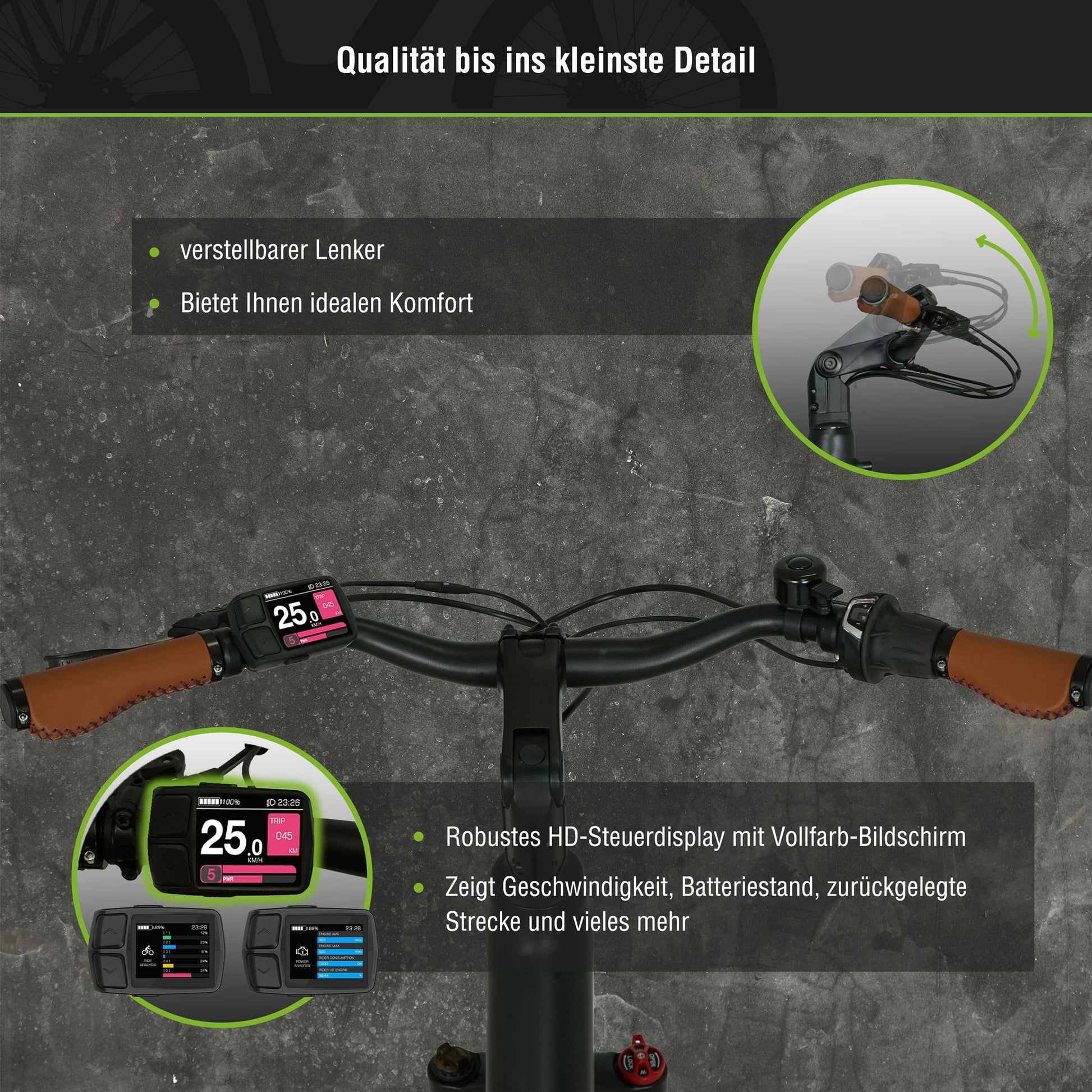

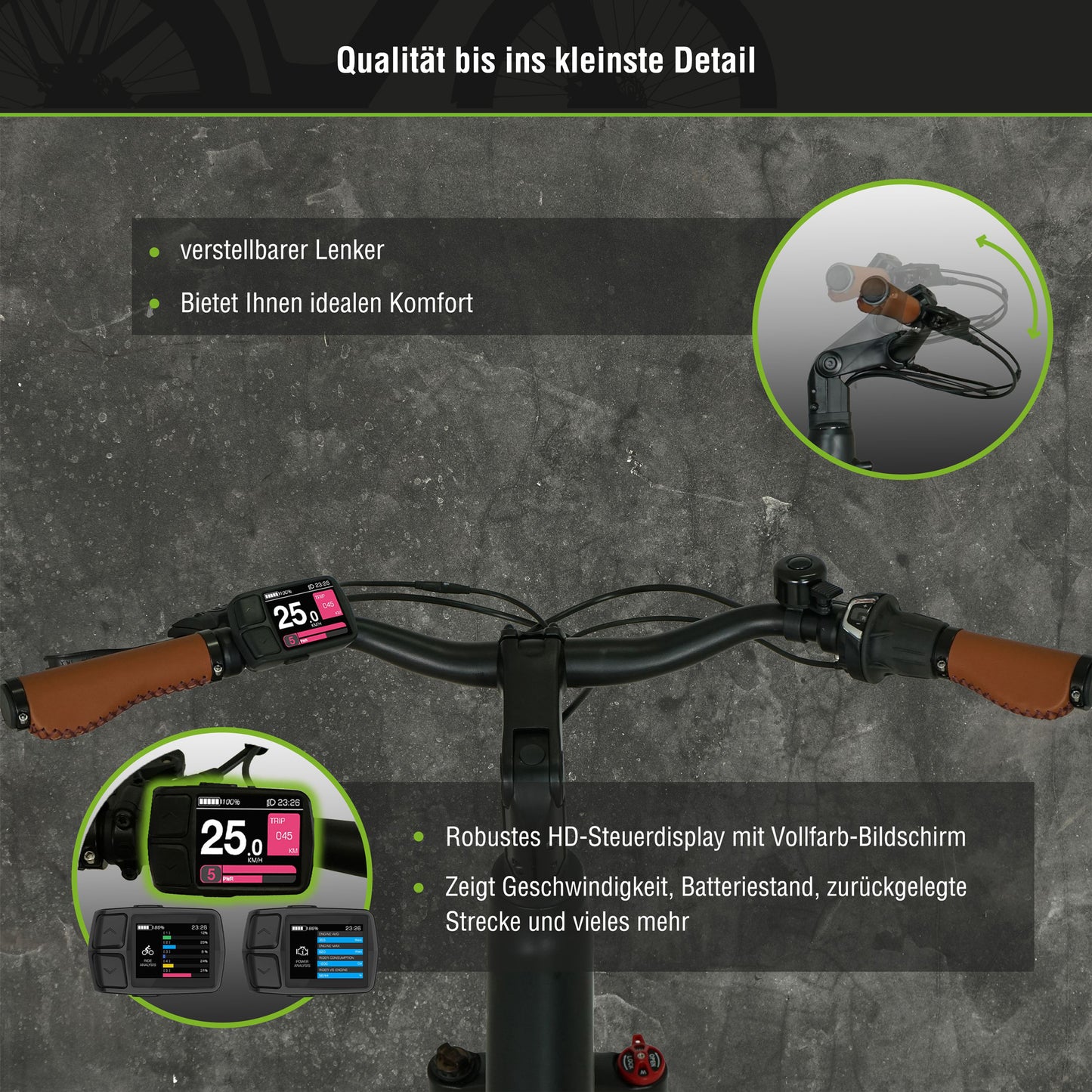

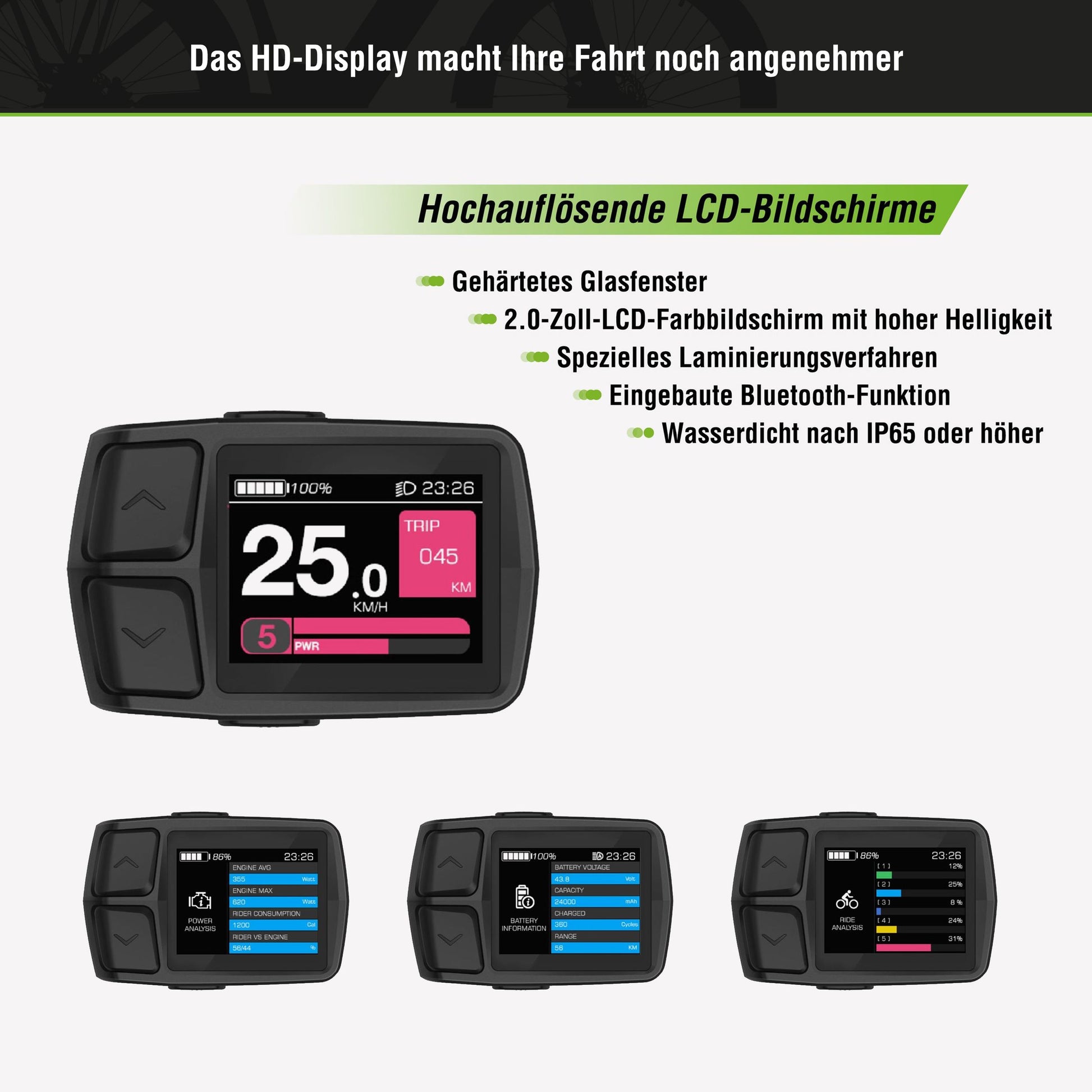

All information in color and at a glance
To keep you informed about all aspects of your current ride at all times, the C5 Centro II is equipped with a robust (IP65) 2-inch HD control display . The full-color screen is made of tempered glass with beveled edges and features independent, ergonomically designed control buttons. The display stands out with its high brightness and wide viewing angle (IPS LCD). Special screen adjustment technology ensures excellent readability even in sunlight and outdoors.
One for everything

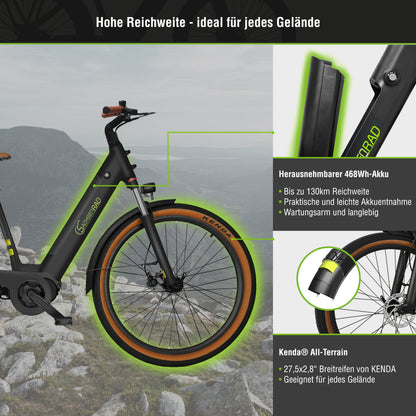

Instead of having to make room in the garage or storage room for a mountain bike, a city bike, and a training bike, the C5 Centro SUV e-bike combines all their advantages in one well-thought-out bicycle. With a range of up to 130 km in ECO mode (depending on riding style, weight, and terrain), you can commute to work without breaking a sweat even on longer and more challenging routes. And on the weekend, the SachsenRAD invites you on an extended bike tour and a wild ride through nature. The C5 Centro II is a true all-rounder!
Technische Details

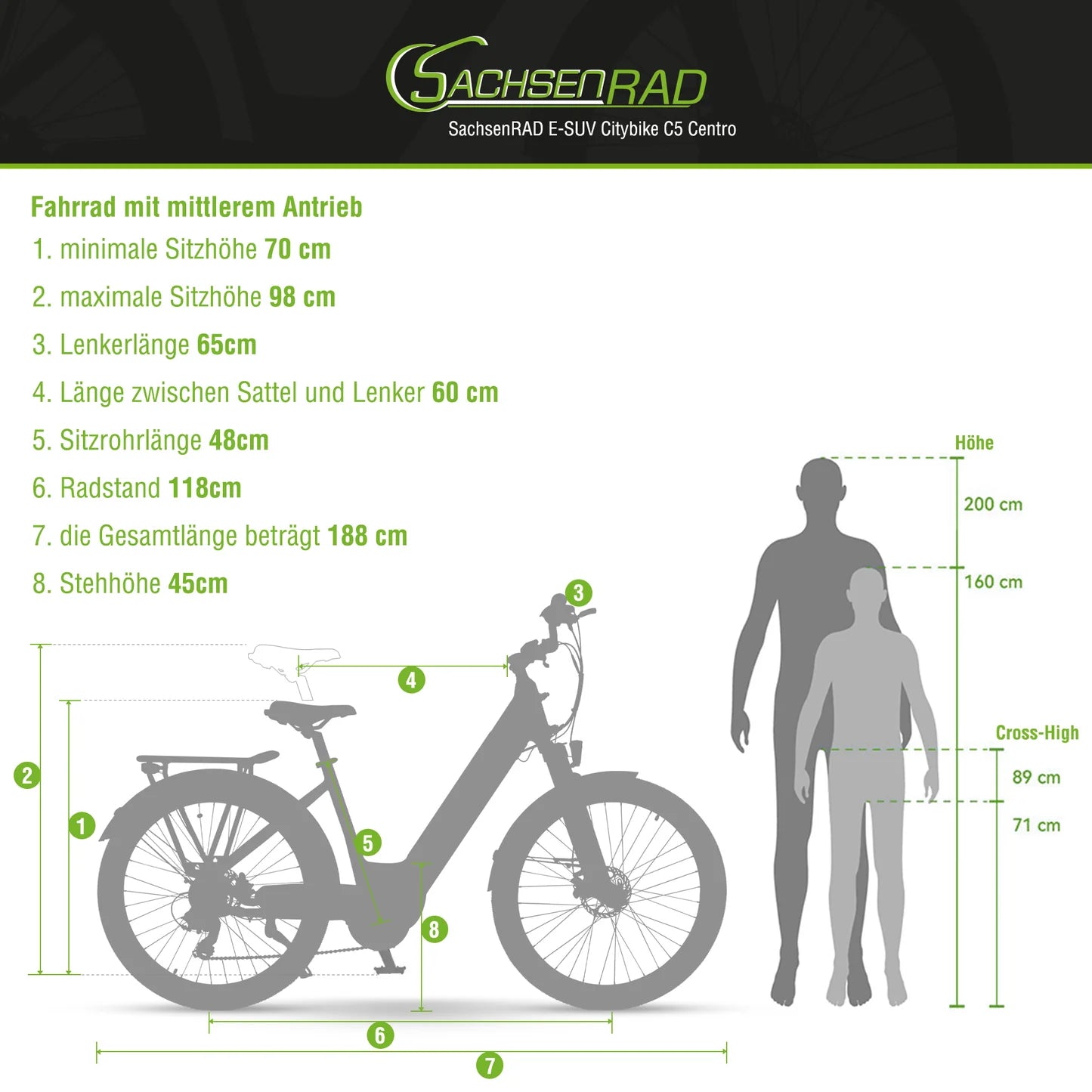

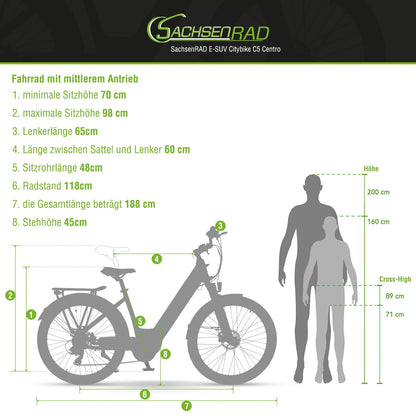

Gewicht: 25.0 kg , Produktmaße: 188 × 110 × 65 cm

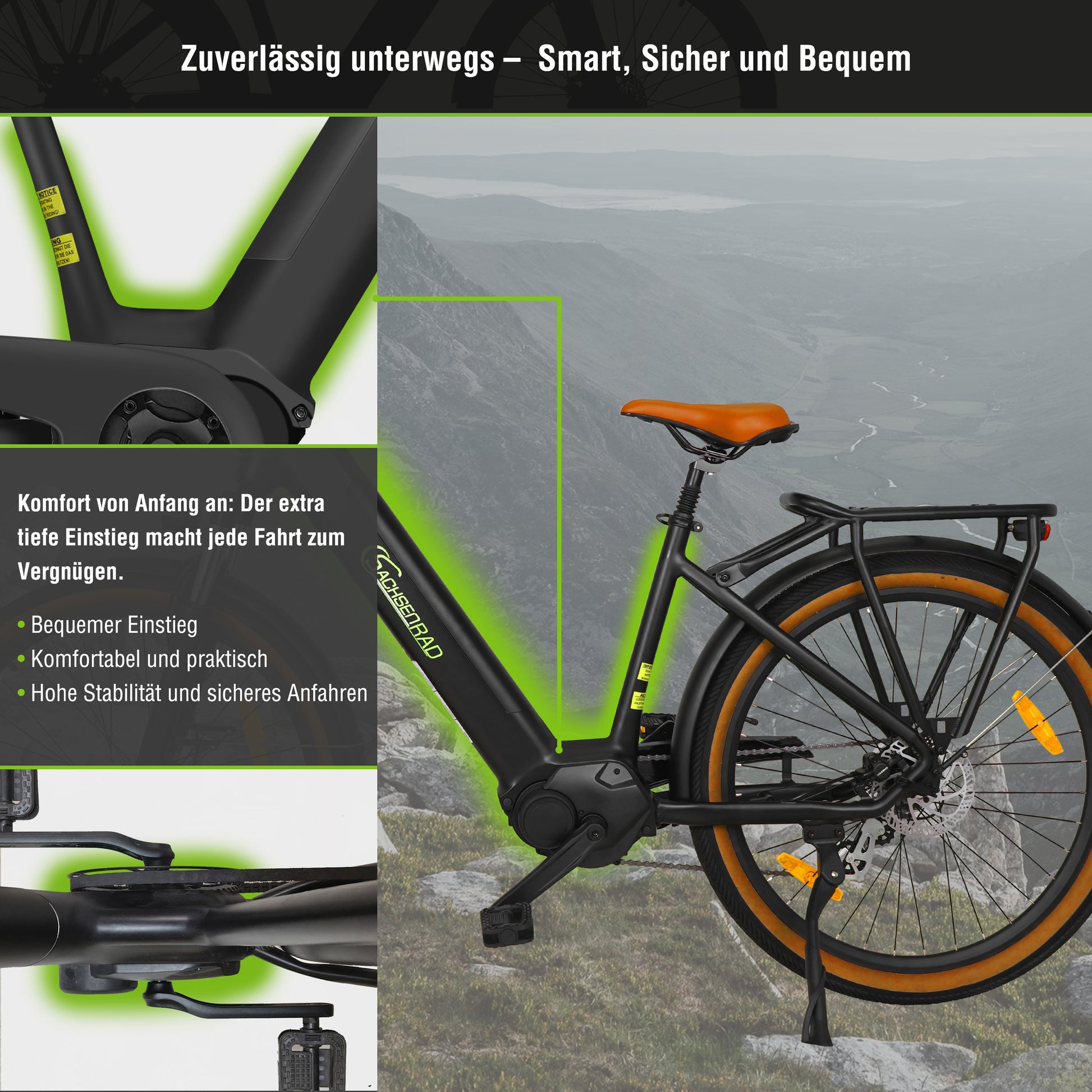

Rahmen & Geometrie Hardtail, Step-through frame, aus Aluminum, Rahmenhöhe 48 cm, empfohlen für Schrittlänge 75–95 cm, Körpergröße 160–190 cm, Rahmennummer is located above the bottom bracket, on the left side, on the motor housing, zulässiges Gesamtgewicht 145 kg
Motor SachsenRAD XCruise V7 Mid-engine (Bottom bracket), 70 Nm, 36 V/250 W, max. 25 km/h, Torque sensor, brushless, low-maintenance
Akku & Stromversorgung 1 Lithium-ion Akku, 522 Wh / 14.5 Ah (36 V), 130 km Reichweite depending on driving style, under optimal conditions, Akkugewicht: 3.2 kg, lockable, removable, geladen in ca. 6 h, Position: Downtube
Display & Fahrassistenz Displaygröße: 2.0 Zoll, mit 5 Unterstützungsstufen und Push assist , Anzeige von Battery level, assistance levels, current speed, max. and min. speed, motor output, operating time, distance and total distance, error codes, also with assistant function, switching the lights on/off, various setting options, Menüsprache(n): English
Schaltung & Antrieb Chain drive, Shimano Altus Derailleur gear 8 Gang/Gänge (1 Kettenblatt/-blätter mit 42 Zähnen, 8 Ritzel), Chain guard box, Thumb shift lever Shimano, Twist grip, Platform pedal (slip-resistant)
Bremsanlage
vorne: Tektro HD-M275 Disc brake (hydraulic), Bremsscheibendurchmesser 160 mm
hinten: Tektro HD-M275 Disc brake (hydraulic), Bremsscheibendurchmesser 160 mm
Bremsbeläge: Standard 30x20mm; mounting hole: long side

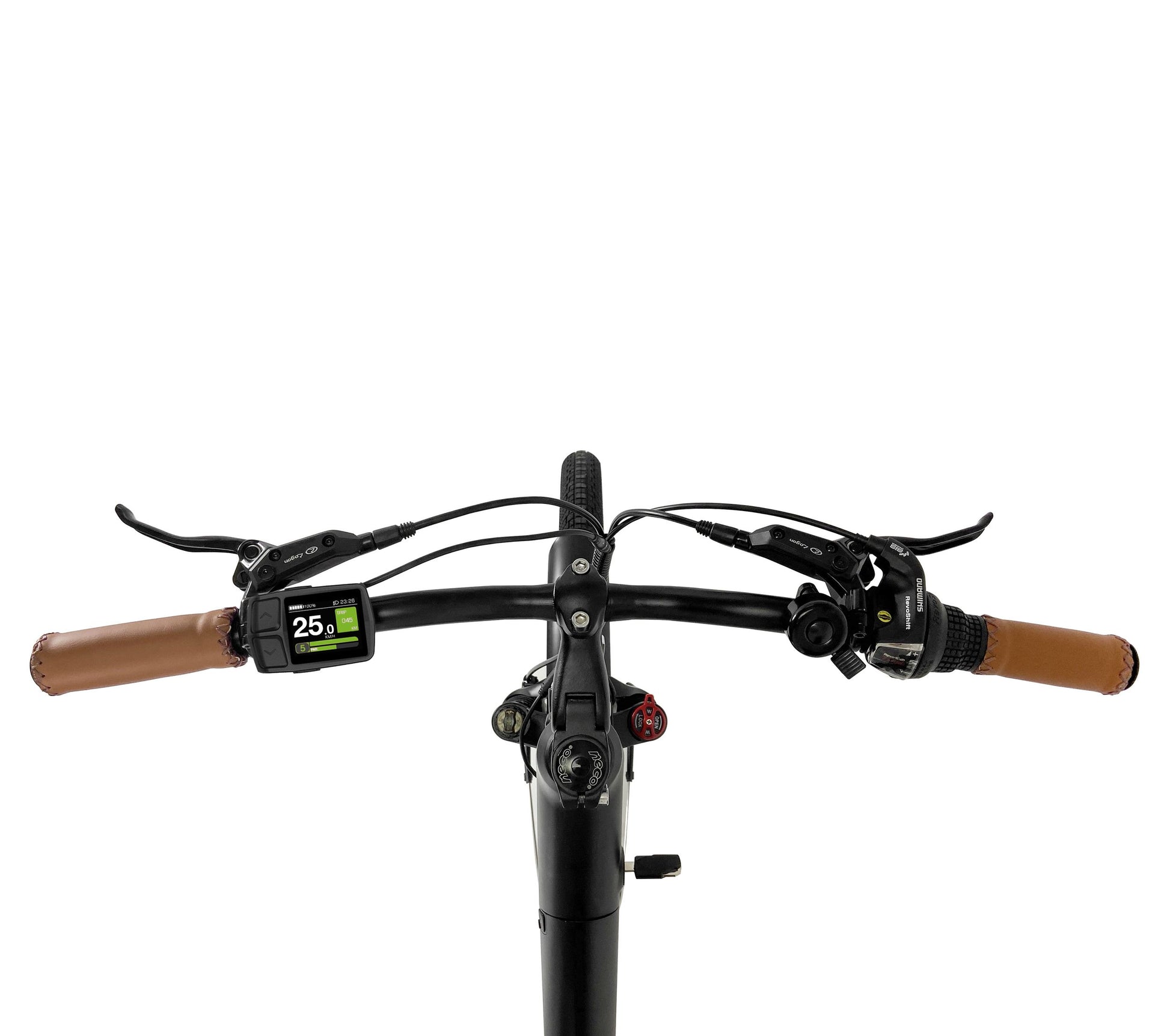

Lenker & Vorbau City handlebars, 640 mm breit, Höhe min. 111 cm, Höhe max. 115 cm, Screw clamping, adjustable, Leather look, ergonomic, angle-adjustable

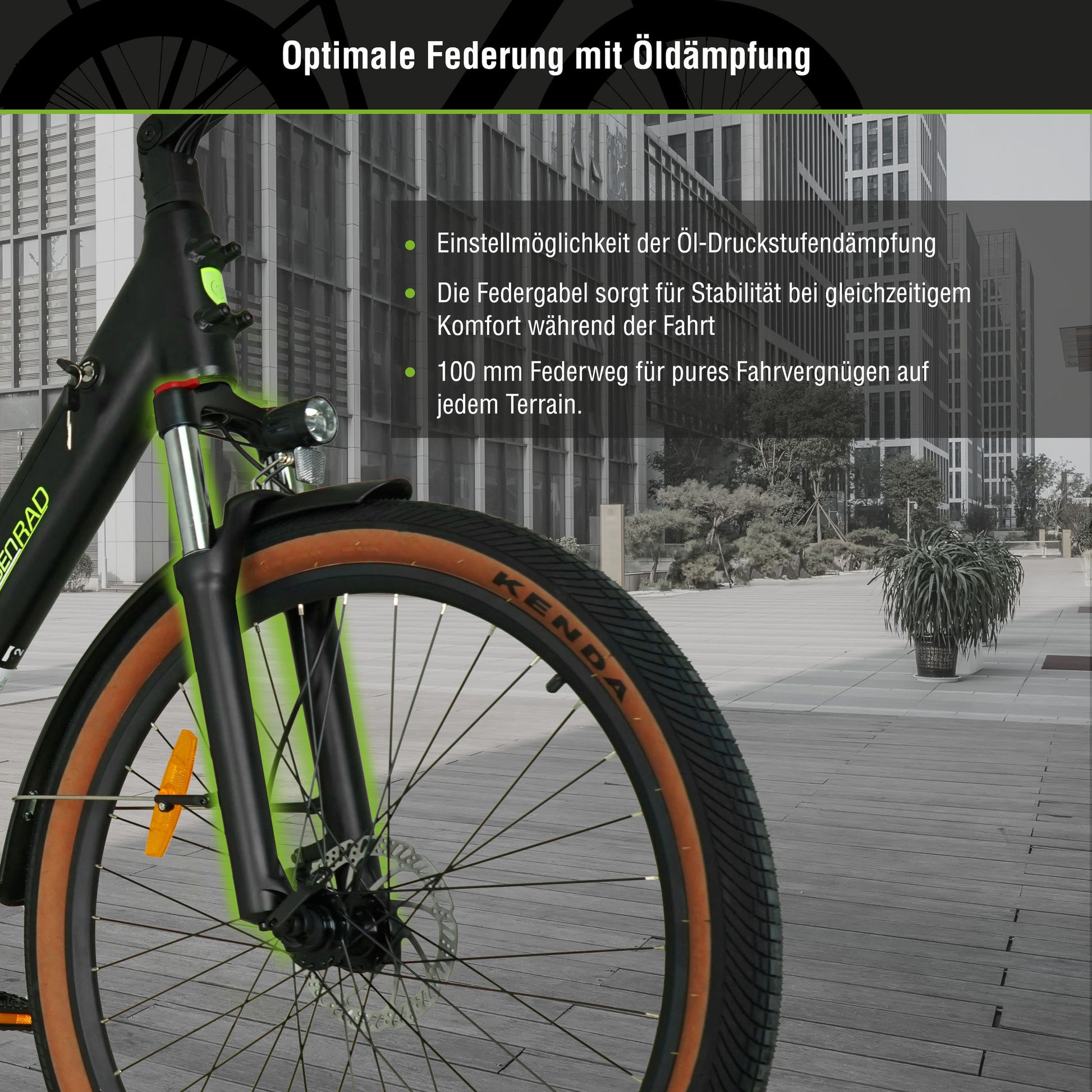

Gabel & Federung Telescopic fork (Suspension fork), 100 mm Federweg, mechanisch gedämpft (Oil suspension), with lockout

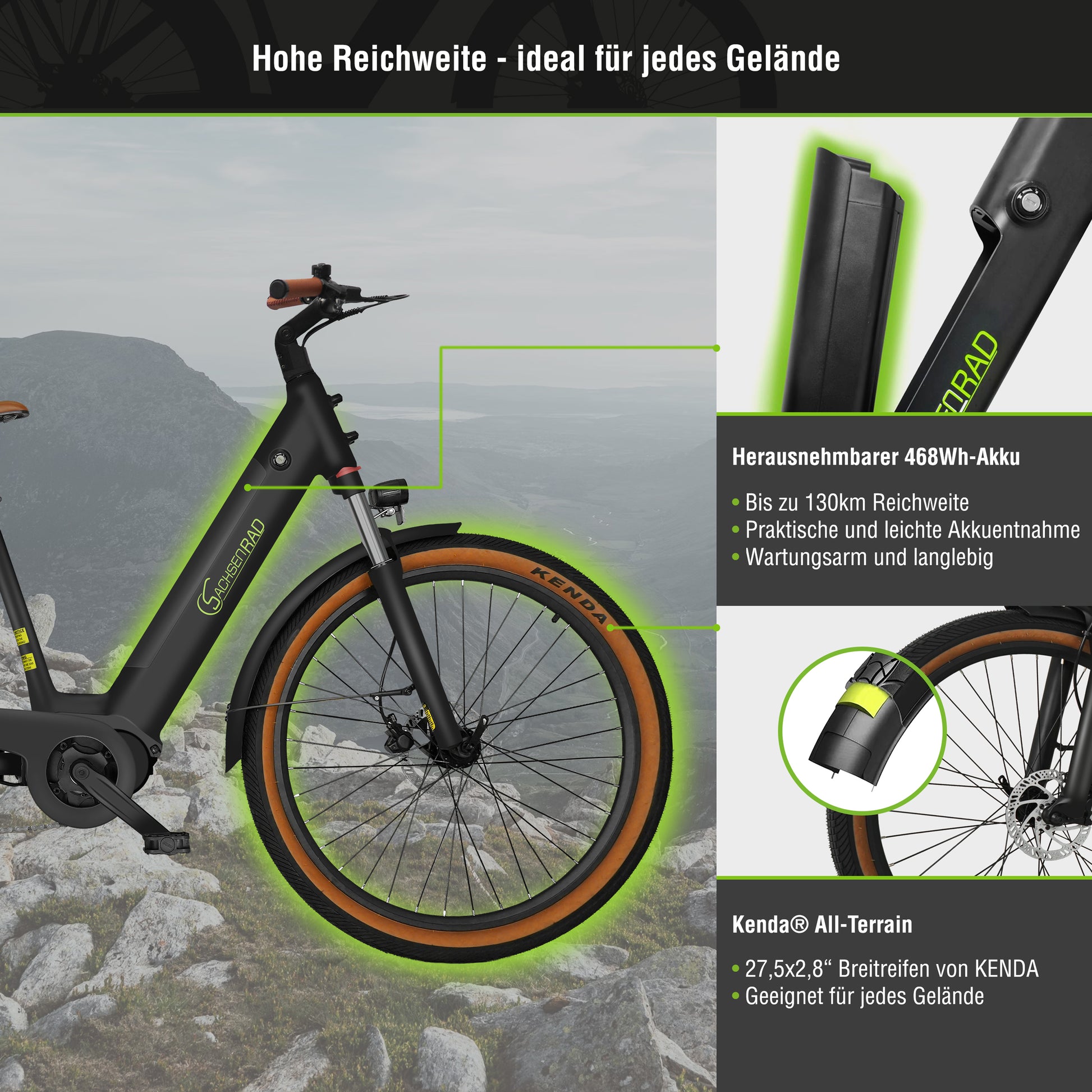

Reifen & Laufräder vorne 27.5 Zoll Tubeless tire, hinten 27.5 Zoll Tubeless tire, von Kenda, Breite 2.4 Zoll, 49.0 mm Reifenstärke, for on- and off-road use, Tire valve

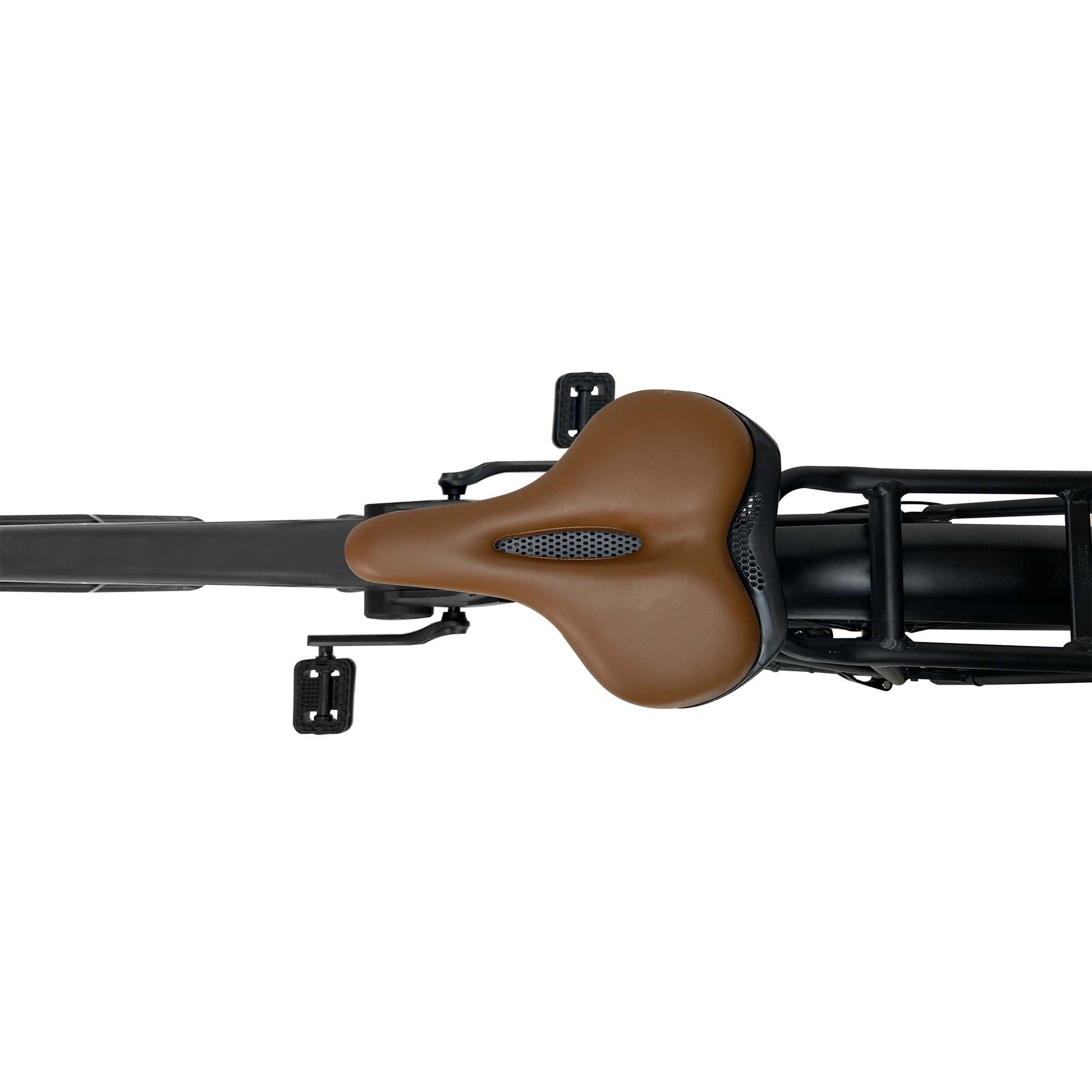

Sattel & Sattelstütze City saddle, 26.0 cm lang, 18.0 cm breit, ergonomically designed, Sitzhöhe min. 70 cm, Sitzhöhe max. 98 cm, Suspension seatpost, Länge 30.0 cm, Durchmesser 30.4 mm, height-adjustable, befestigt mit Quick release
Beleuchtung
Pedal reflectors, spoke reflectors

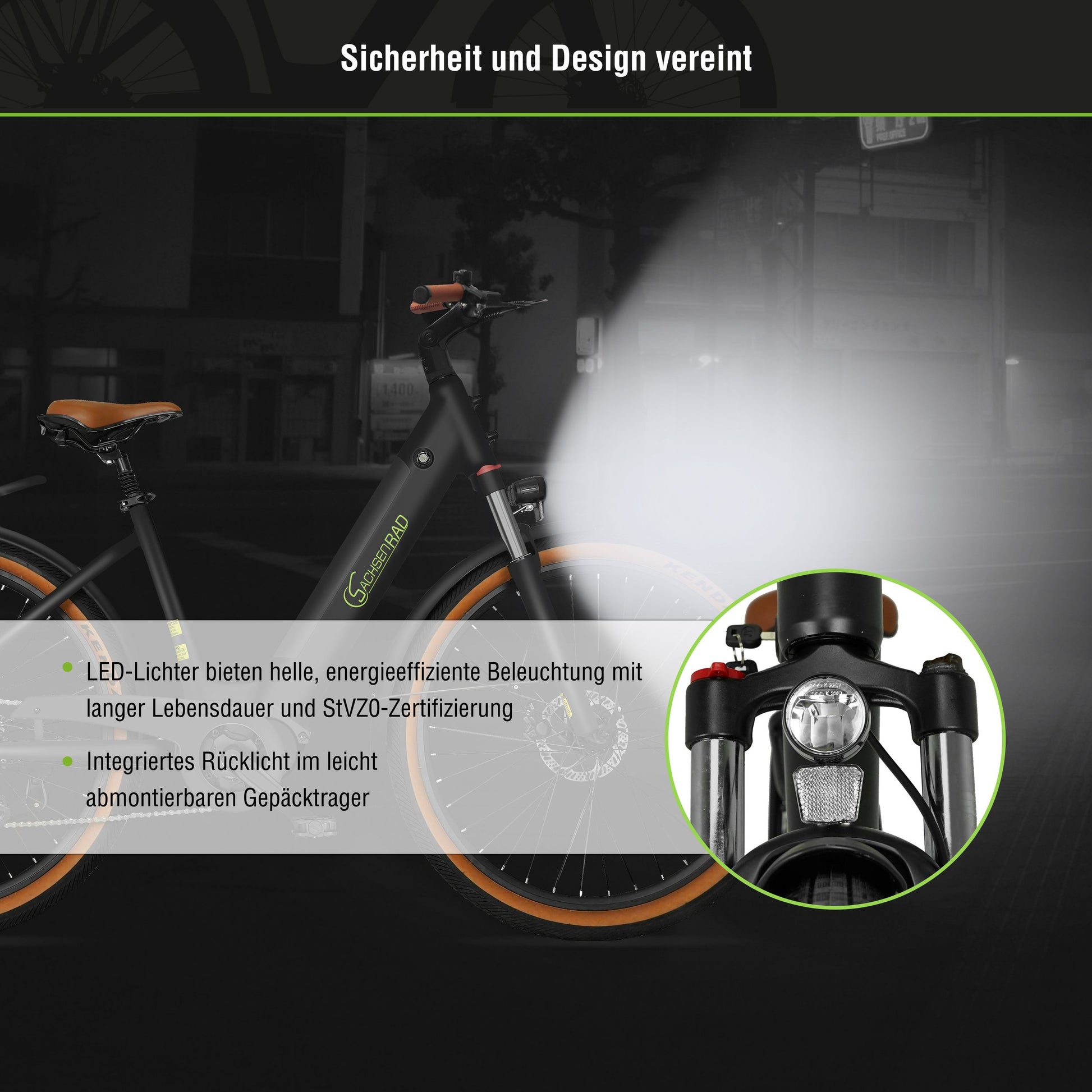

Frontlicht mit LED (Night driving light, continuous light), Rücklicht mit LED (Continuous light), Standlicht front, back
Ausstattung TFT color LCD control display, LED headlight, alarm system, mudguard, luggage rack, bell, Fahrradständer
Lieferumfang SachsenRAD E-CityBike C5, User Manual, Charger, Assembly Tool, Bedienungsanleitung
Montagehinweise The item is almost fully pre-assembled. Check the brakes, align the handlebars. See instructions, noch zu montieren: Pedals, saddle, front wheel, handlebars
