E-MTB M5 Centro
E-MTB M5 Centro
SKU:BB12145
Couldn't load pickup availability
CONQUERS EVERY MOUNTAIN
The SachsenRAD E-Mountainbike M5 Centro feels right at home in the harsh outdoors and is a lot of fun off-road - are you too? Then you'll make the perfect team!
Design for the great adventure
The color combination and striking lines give the M5 a modern and energetic look in the style of the well-known Husqvarna Bikes. The sturdy frame and high-quality components are robust and reliable. Together with the agile geometry, the bike makes you really want to get out and enjoy the next dynamic outdoor experience!
Fully suspended for maximum fun

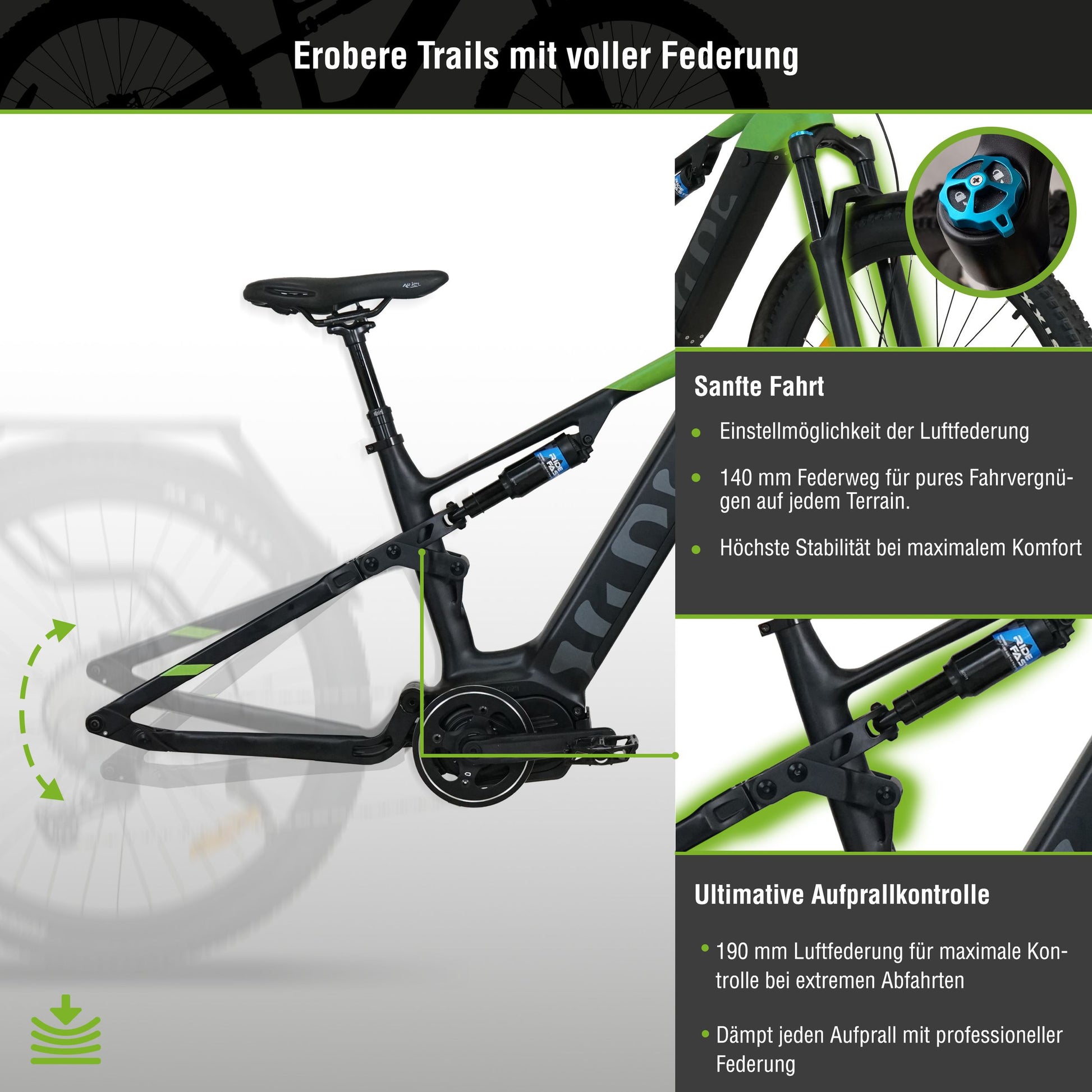

Whether on trails, uphill or downhill. Thanks to front and rear suspension, the M5 glides smoothly and remains easy to control over roots and rocks, and through puddles and mud. The suspension travel is 140 and 190 mm respectively and can be easily adjusted. Achieve optimal comfort on every ride!
Powerful motor

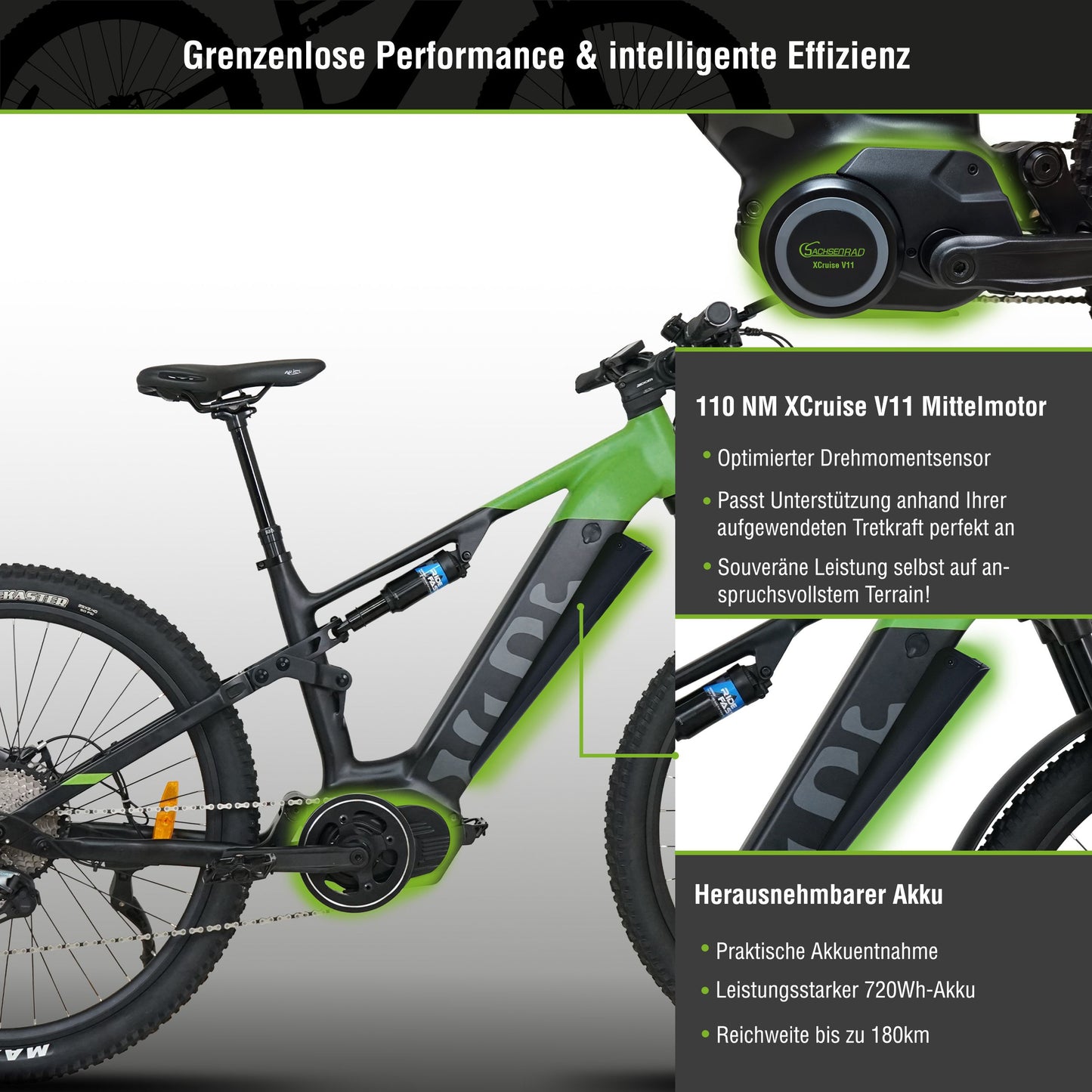

In the M5 Centro e-MTB, we have installed our extra-powerful XCruise V11 mid-drive motor for the first time. This powerhouse with 110 Nm of torque generates more than enough power to catapult you up steep, rugged mountain paths. The motor position gives you a more familiar riding experience because the drive power is generated exactly where you are used to it by pedaling.
High battery capacity
You have never gone this far before - at least not on an e-bike: The generous 720 Wh/20 Ah battery takes you on a journey of 60 to 180 kilometers, depending on how much you push it (depending on riding style, weight, and terrain). The battery therefore does not give up even on many steep climbs.

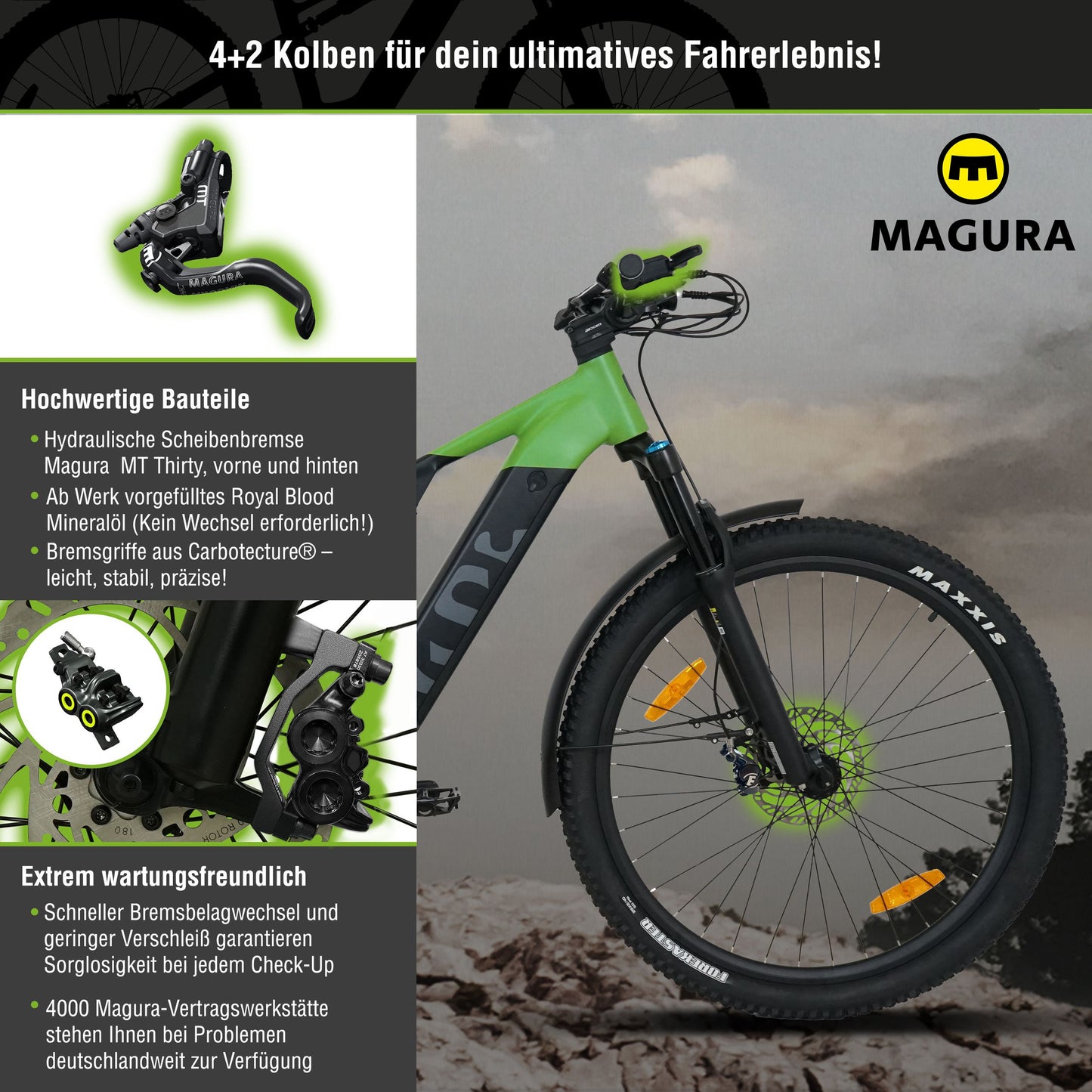

Top brakes from Magura
When you are tearing through the terrain with a lot of energy, you also need to be able to brake effectively. The hydraulic disc brakes Magura MT Thirty at the front and rear bring the M5 to a safe stop with precisely applied pressure from the Carbotecture brake levers, even when fully loaded and carrying heavy weight. The brakes were developed with absolute ease of maintenance in mind. Particularly quick pad changes and low wear guarantee you peace of mind during all future check-ups and repairs. Even better: You never have to change the Royal Blood mineral oil that comes prefilled from the factory. And should anything ever happen to the brakes, over 4,000 Magura authorized workshops are available nationwide.
Smooth shifting with Shimano Deore
The 11-speed chain drive from Shimano ensures smooth gear changes. With only one chainring at the front and twelve sprockets at the rear, the gear steps of this drivetrain are more even. It makes it easier to select the optimal gear for different situations and enables precise shifting.
The right tires
Maxxis, one of the largest and most renowned tire manufacturers in the world, supplies the robust 29x2.4“ mountain bike tires for the M5. The tread and material composition ensure optimal grip on slopes. The casing withstands sharp rocks, roots, and sharp edges – just right for any off-road tour.
That certain something extra
On the SachsenRAD M5, you will discover great details – e.g. the remotely operated seatpost with cable remote. This allows you to quickly adjust the seat to the surroundings and your comfort. The cables are mostly routed through the frame, which protects the cables and the full functionality of the bike, especially on demanding and wild MTB tours.

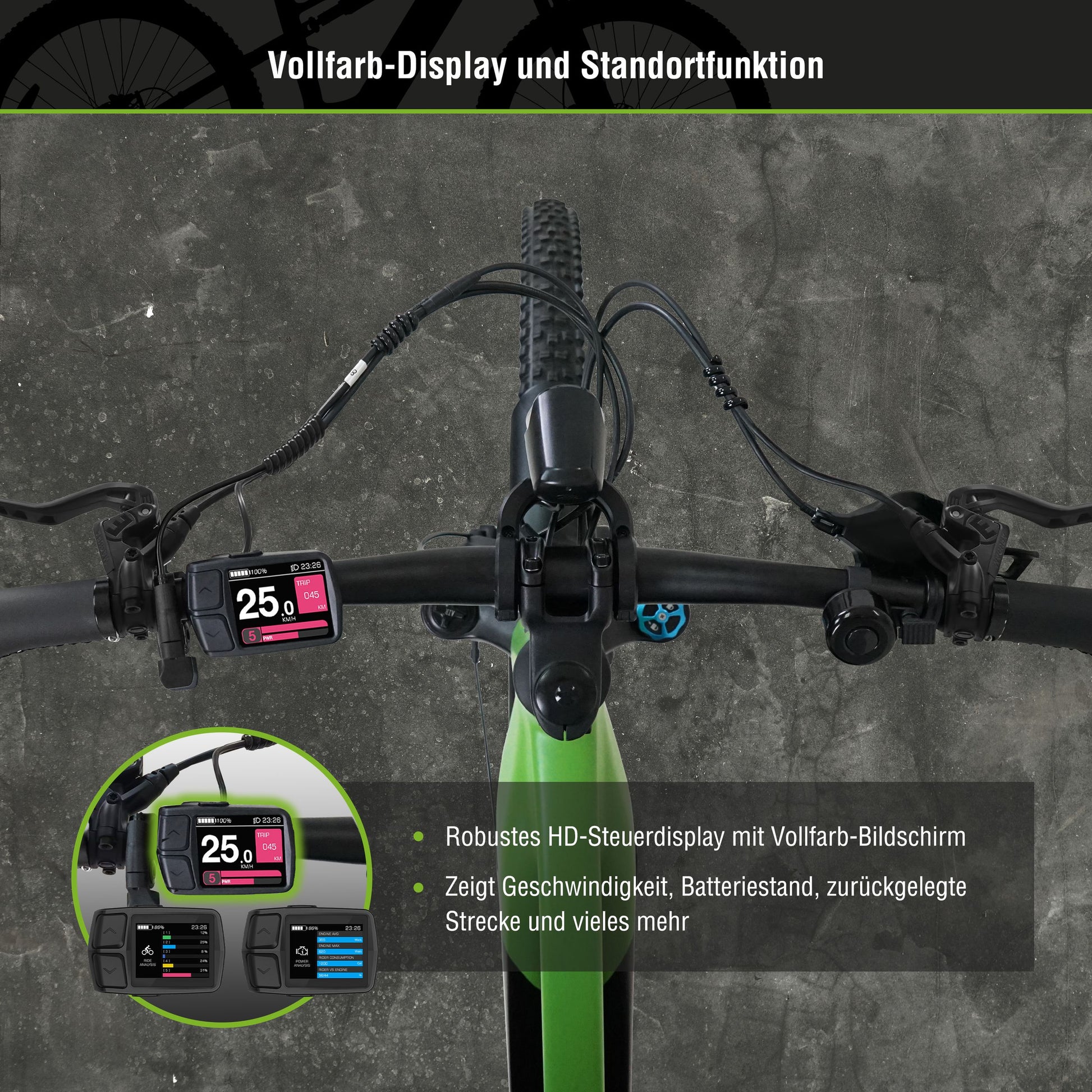

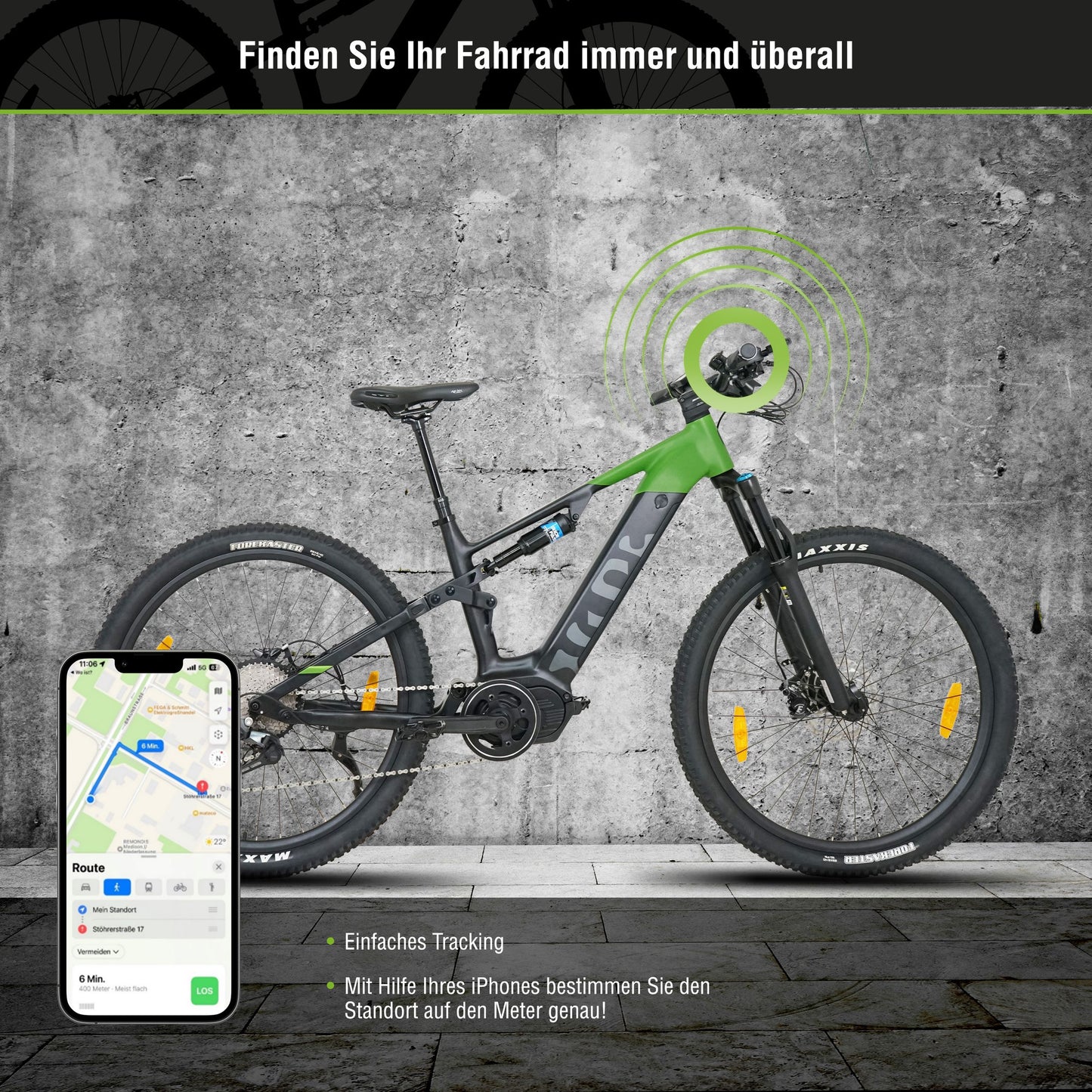

The durable full-color control display keeps you informed about all the important details. The integrated Apple FindMy system additionally protects against theft and helps with navigation. This way, you will always be able to find your valuable bike. Currently, the system only works in conjunction with an iPhone.
The SachsenRAD M5 Centro is a powerful e-mountain bike with strong motor performance, solid suspension, well-thought-out components - and on top of that, made in Germany! Effortlessly conquer even demanding off-road routes with an extra dose of fun - the adventure can begin!
Technische Details
Gewicht: 28.4 kg , Produktmaße: 200 x 70 x 106 cm
Rahmen & Geometrie Vollständig, Mountain bike frame, aus Aluminum, Rahmenhöhe 46 cm, empfohlen für Schrittlänge 85–100 cm, Körpergröße 175–195 cm, Oberrohr 62.0 cm, Rahmennummer right side, at the motor mount of the frame, next to the chainring, zulässiges Gesamtgewicht 145 kg
Motor Bafang XCruise V11 Mid-drive motor Mid-engine (Bottom bracket), 110 Nm, 36 V/250 W, max. 25 km/h, brushless, low-maintenance
Akku & Stromversorgung 1 SachsenRAD Lithium-ion Akku, 720 Wh / 20.0 Ah (36 V), 200 km Reichweite in ECO mode, Akkugewicht: 4.0 kg, removable, lockable, geladen in ca. 8 h, Position: Downtube
Display & Fahrassistenz Displaygröße: 2.4 Zoll, mit 5 Unterstützungsstufen und Push assist , Anzeige von Battery level, assistance levels, speed, operating time, distance and total distance, error codes, switch lights on/off, Menüsprache(n): German, English
Schaltung & Antrieb Chain drive, Shimano Deore RD-M6100 Derailleur gear 12 Gang/Gänge (1 Kettenblatt/-blätter mit 38 Zähnen, 12 Ritzel), no chain guard, Trigger Shimano, Rapidfire Plus, Platform pedal (slip-resistant)
Bremsanlage
vorne: Magura MT Thirty Disc brake (hydraulic), Bremsscheibendurchmesser 180 mm
hinten: Magura MT Thirty Disc brake (hydraulic), Bremsscheibendurchmesser 180 mm
Lenker & Vorbau MTB handlebar, 700 mm breit, Höhe min. 106 cm, Höhe max. 106 cm, Handlebar clamp plate, Rise Bar
Gabel & Federung Telescopic fork (Suspension fork), 190 mm Federweg, mechanisch gedämpft (Air suspension), adjustable, with lockout
Reifen & Laufräder vorne 29.0 Zoll Tubeless tire, hinten 29.0 Zoll Tubeless tire, von Maxxis, Breite 2.4 Zoll, 60.0 mm Reifenstärke, Off-Road MTB Tread Tires, Car valve/Scharder valve
Sattel & Sattelstütze MTB Saddle, 30.0 cm lang, 20.0 cm breit, ergonomically shaped, padded, Sitzhöhe min. 90 cm, Sitzhöhe max. 106 cm, Vario seatpost, Länge 44.5 cm, Durchmesser 30.9 mm, height-adjustable, befestigt mit Quick release
Beleuchtung
Pedal reflectors, spoke reflectors
Frontlicht mit LED (Night driving light, continuous light) (Night driving light, continuous light), Standlicht front, back
Ausstattung Display with FindMy, automatically adjustable seat post, bell, optional luggage rack and mudguard, Fahrradständer
Lieferumfang SachsenRad E-MTB M5, User Manual, Charger, Assembly Tool, Bedienungsanleitung
Montagehinweise Check the brakes, attach the pedals and handlebars, noch zu montieren: Pedals, handlebars, front light
