E-folding bike F12
E-folding bike F12
SKU:BB12190
Couldn't load pickup availability
F12 videos and instructions in DE/EN/FR/CZ/DK/NL/PL/SI/SK!
URBAN COMMUTER BIKE IN ONE PIECE
With the SachsenRAD F12 E-Folding Bike, you can leave typical everyday obstacles such as searching for parking, traffic jams, poor public transport connections (and strikes) behind. Our smart, foldable e-bike supports you in leading a healthy lifestyle while guaranteeing elegance and speed at the same time. The F12 stands out with its high-quality, aesthetically pleasing design, strong brand recognition, and clear distinction from other folding e-bikes.
Affordable frame with a seamless design

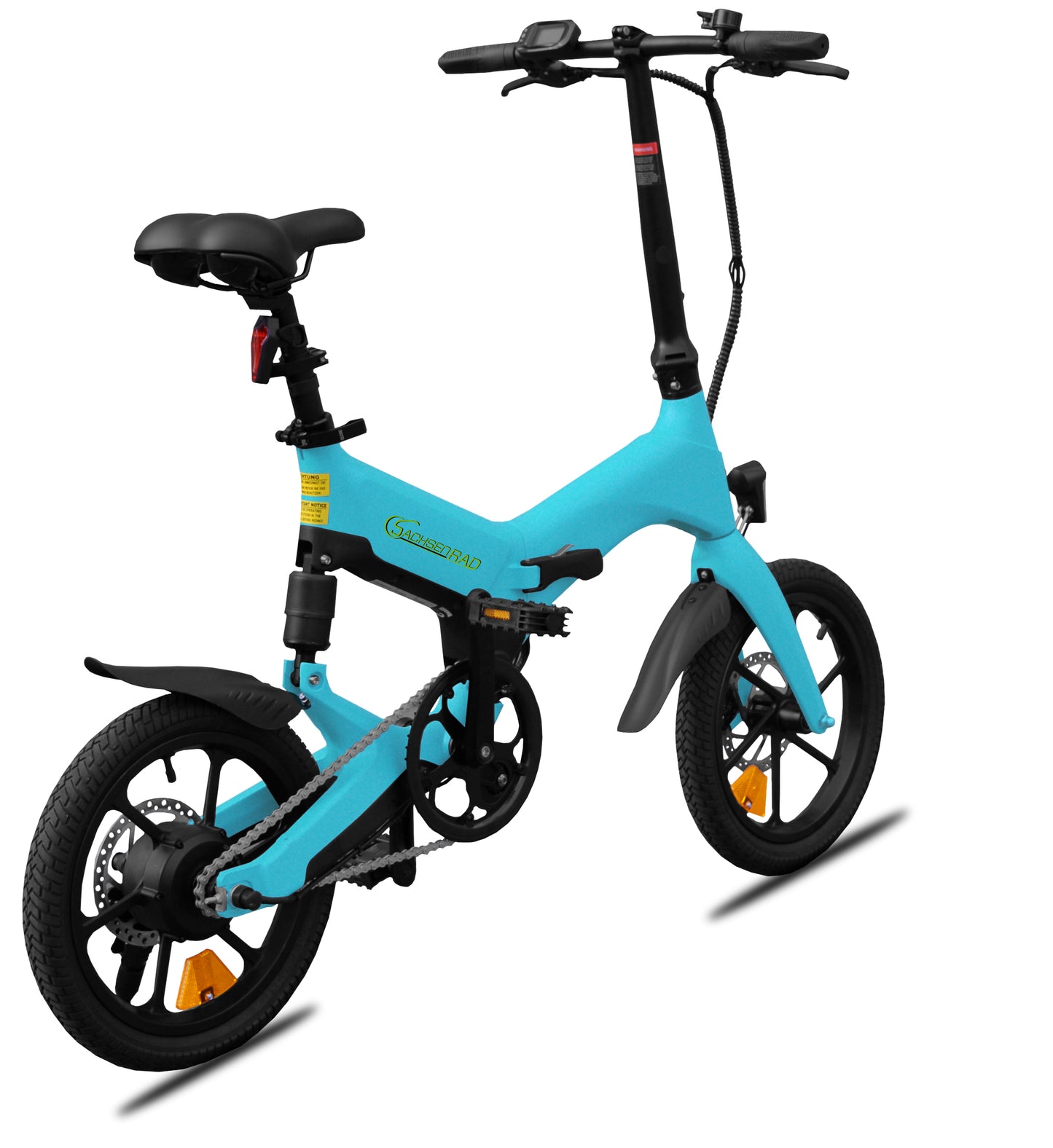

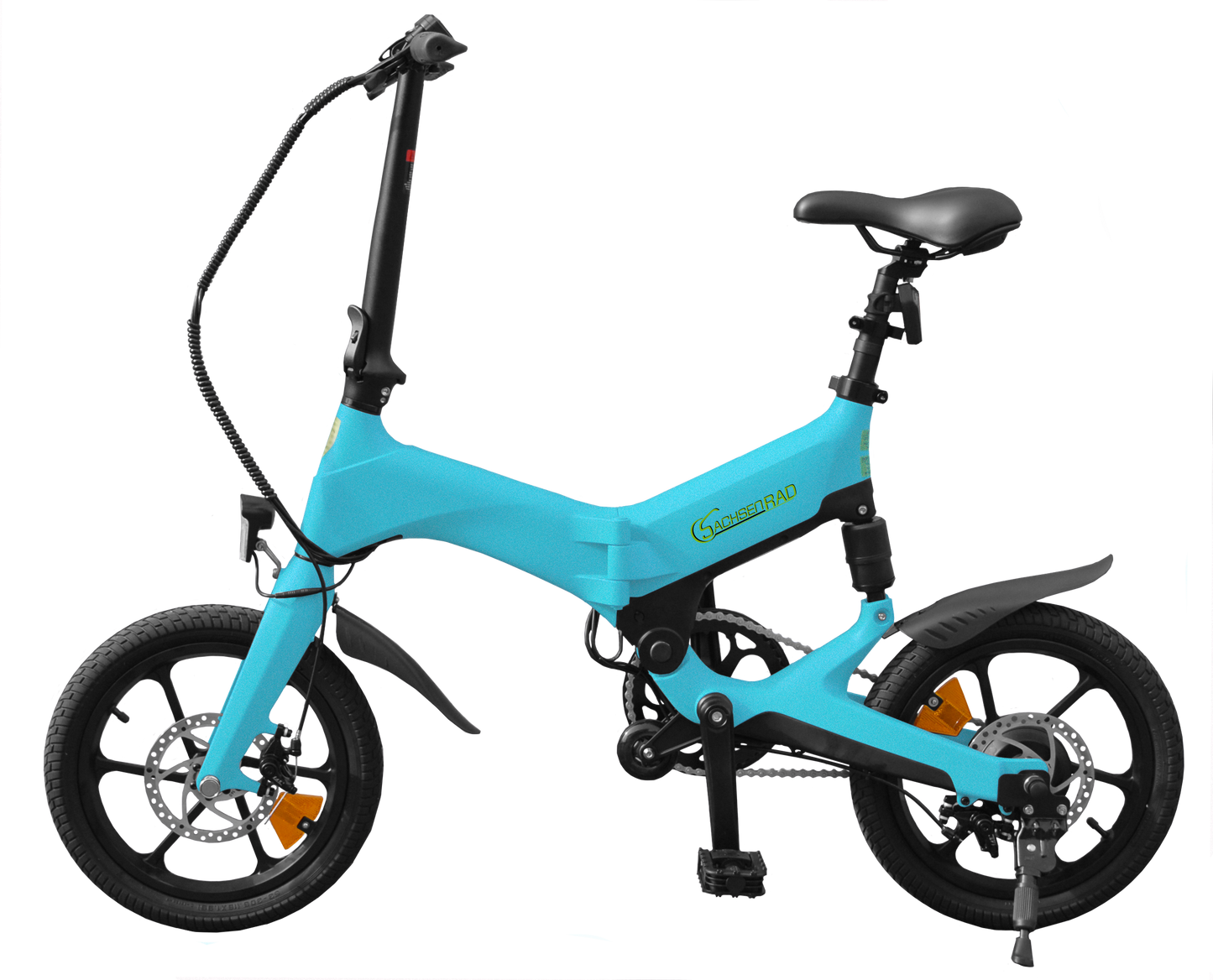

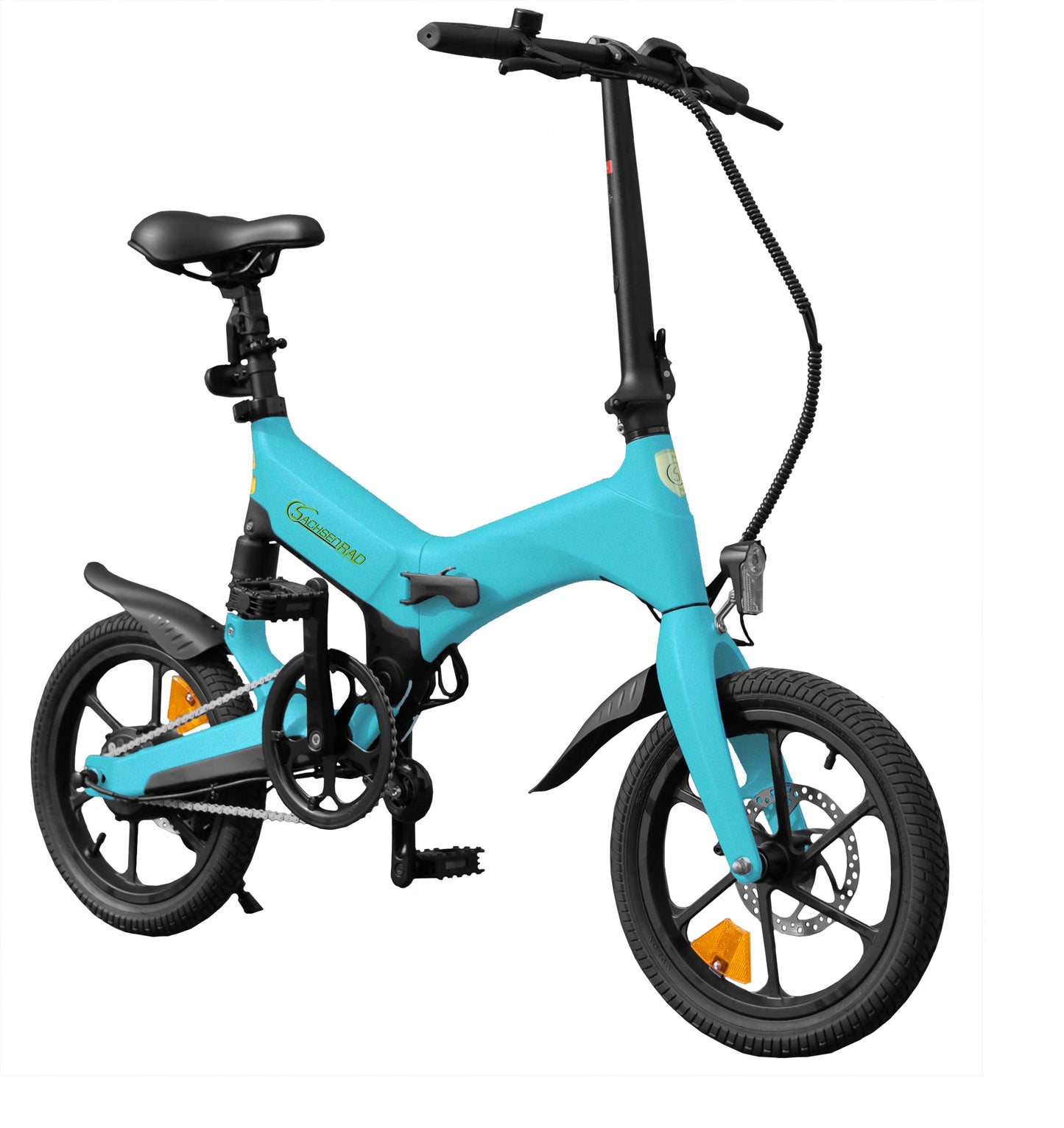

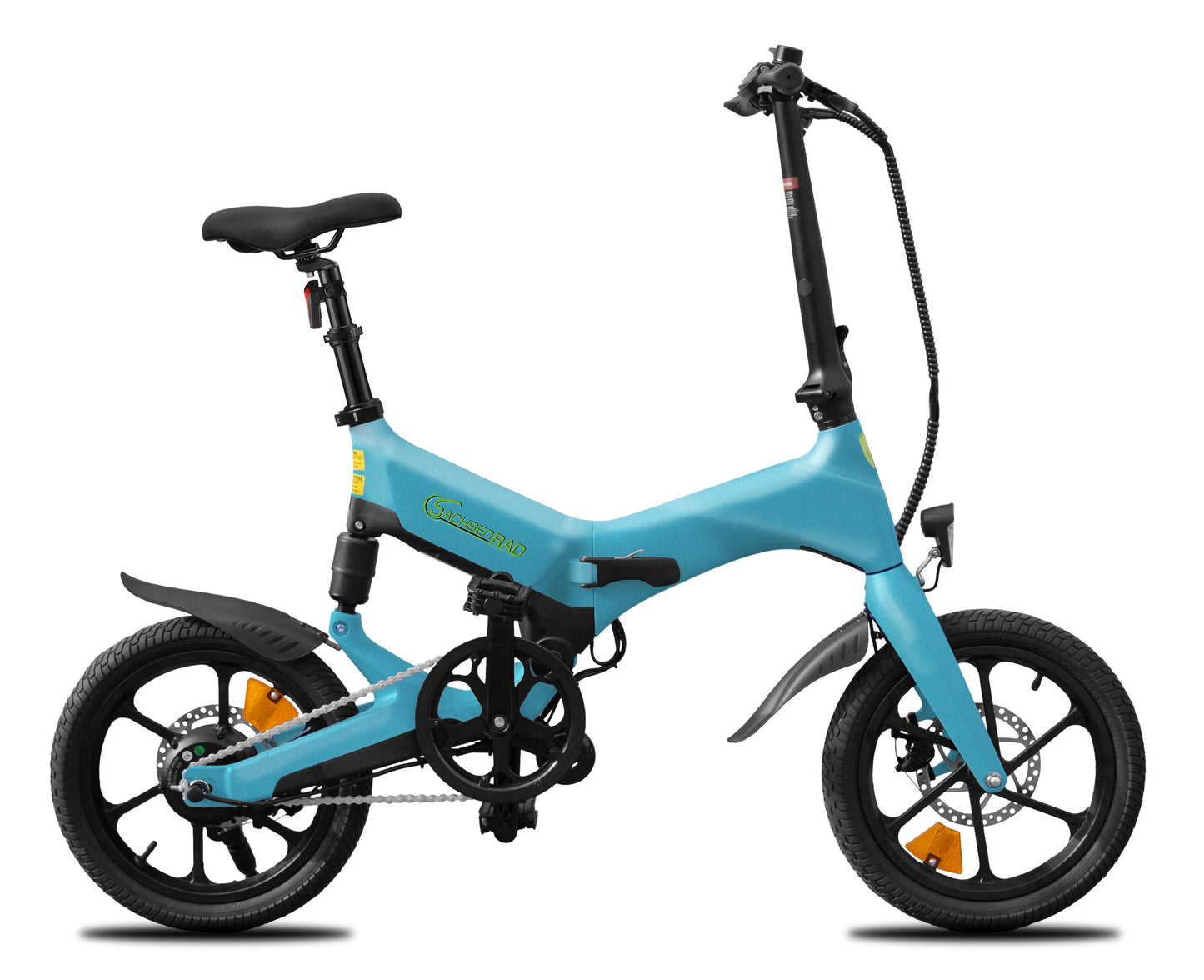

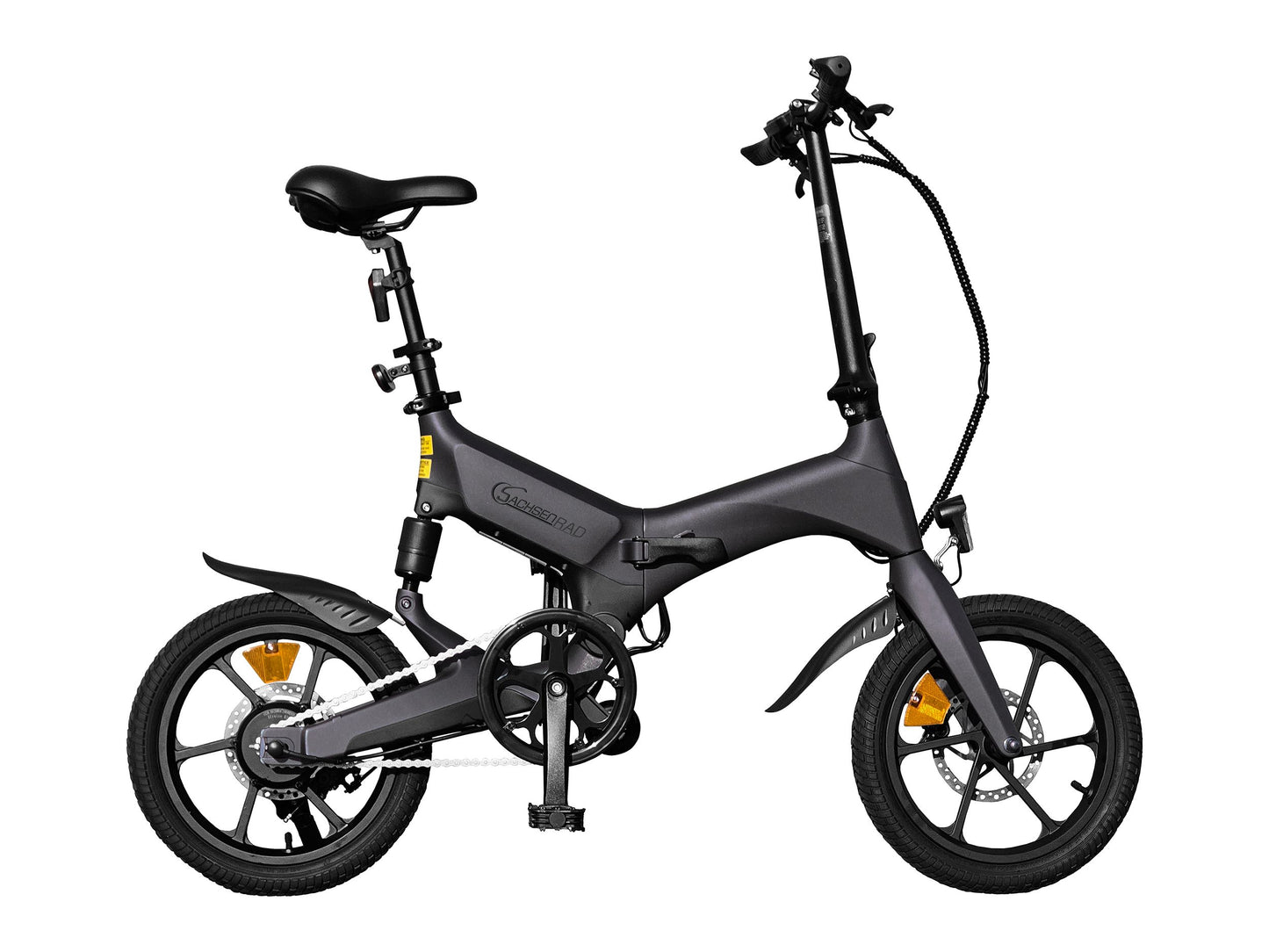

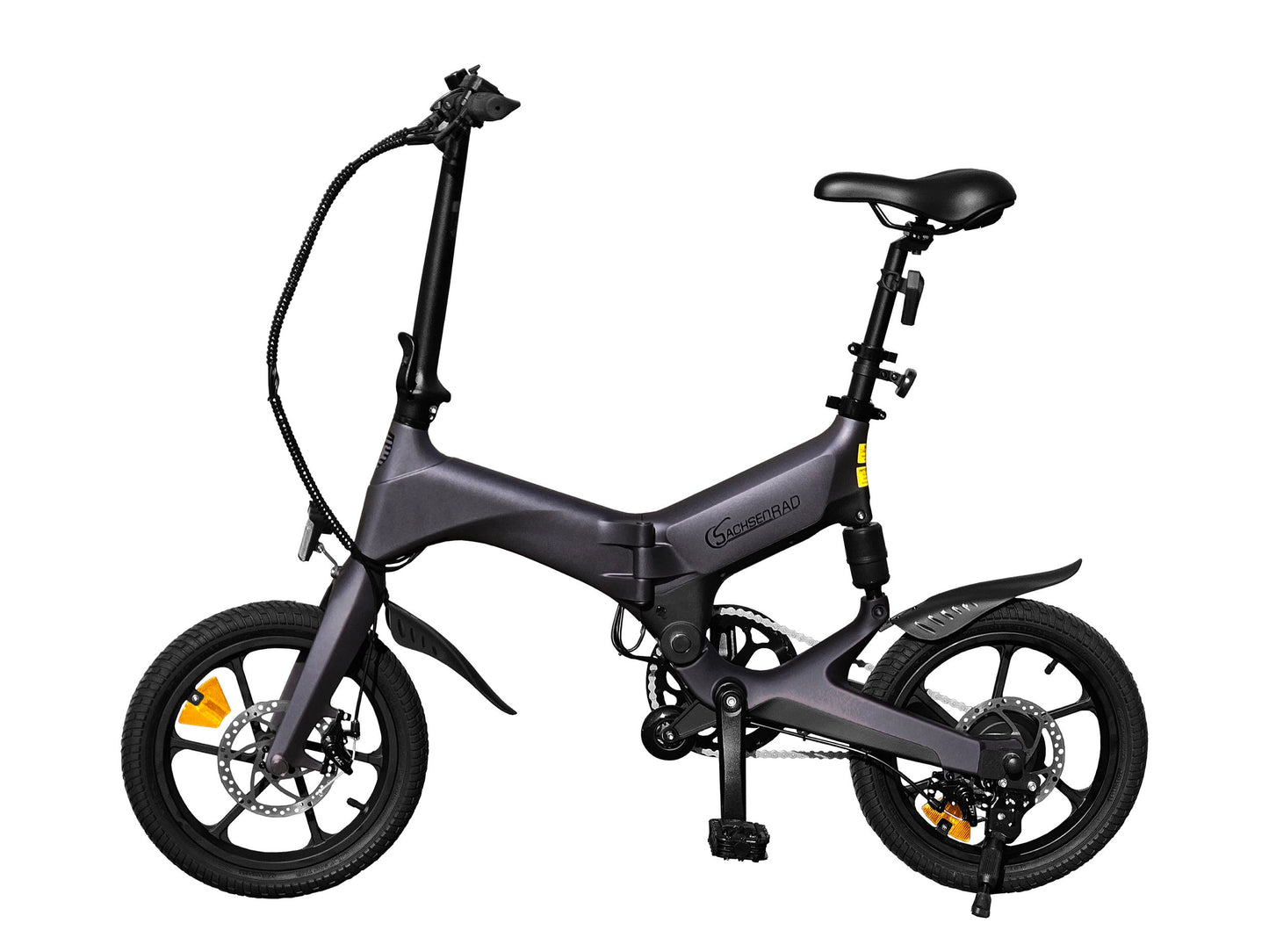

The F12's beautifully shaped frame is made of cast magnesium, and thus from a single piece. Thanks to this aircraft-grade, environmentally friendly material and the forged light-metal wheels, the e-bike impresses with its low weight (19 kg) while remaining reliable and stable. Since the frame is manufactured using the die-casting process, we can do without weld seams. The beautifully shaped, uniform design is patented and will delight you—it also impressed the jury of the IF Design Award!
Easy to fold and transport

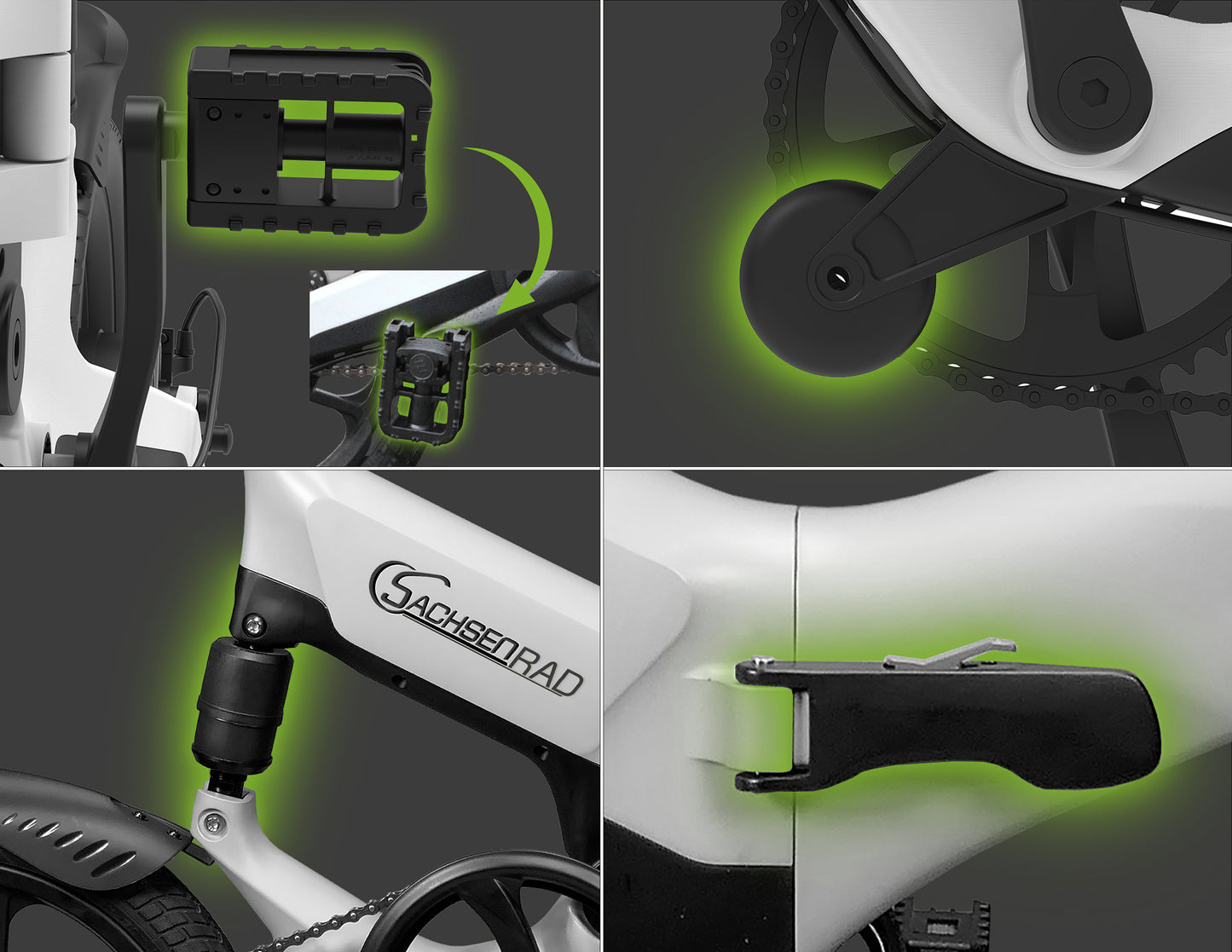

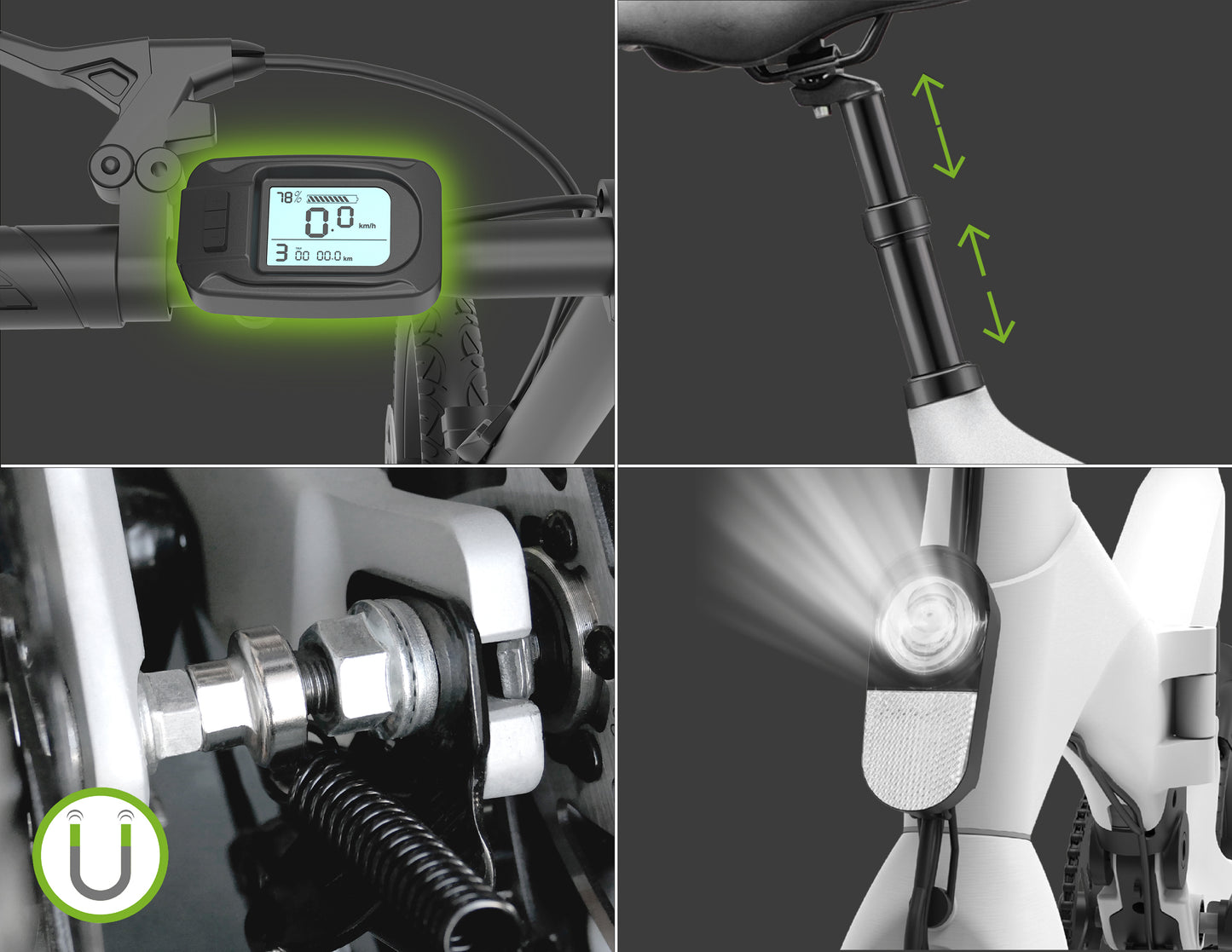

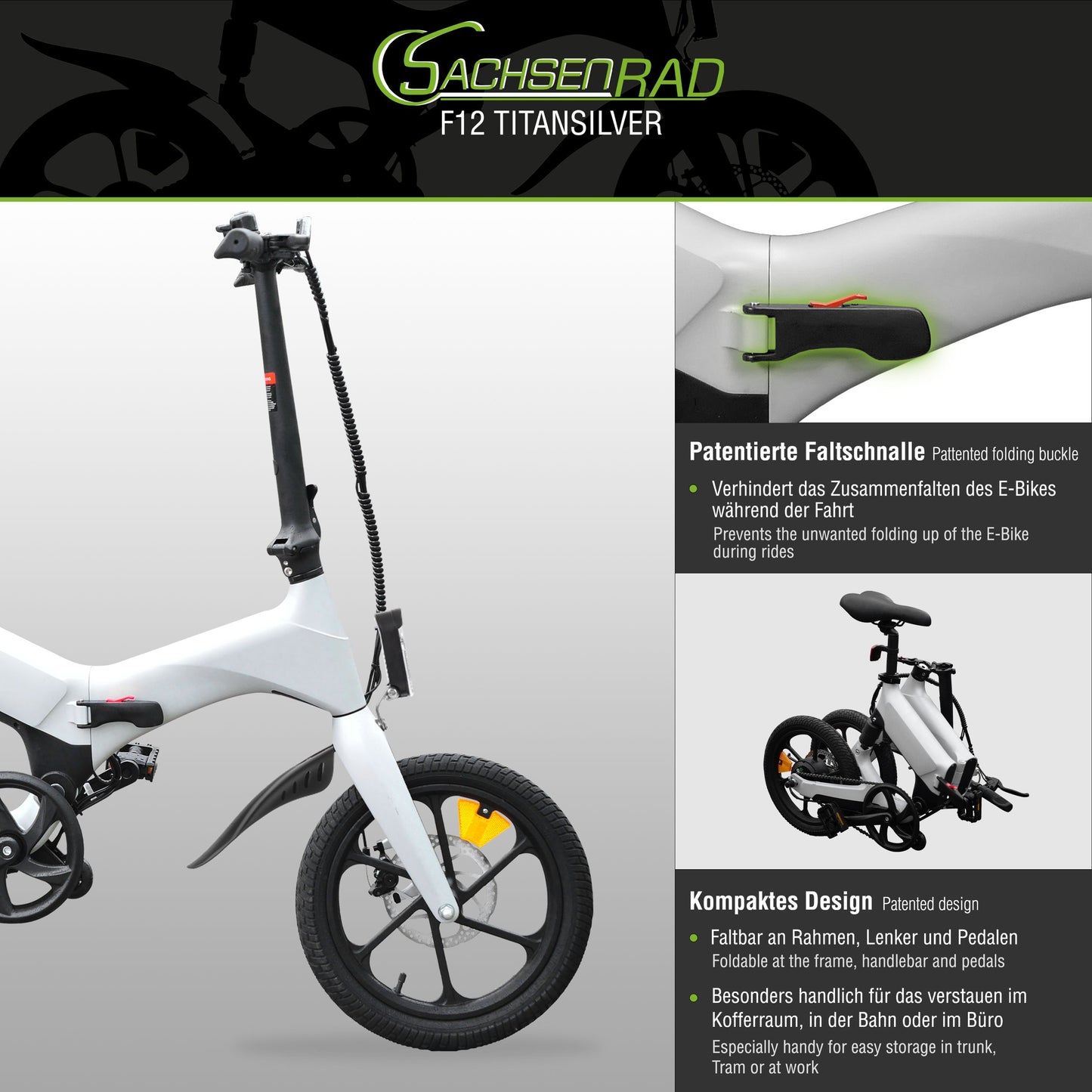

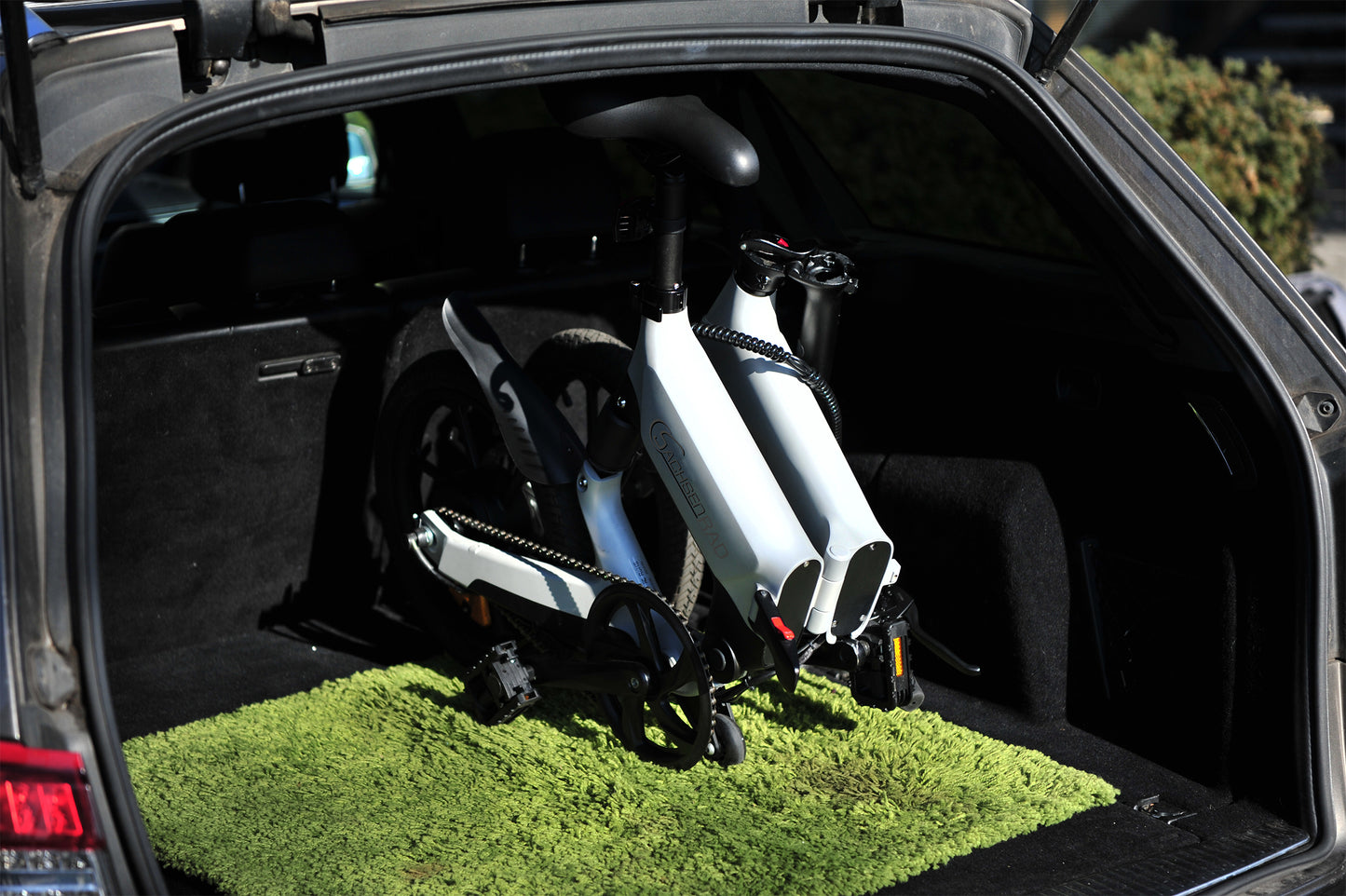

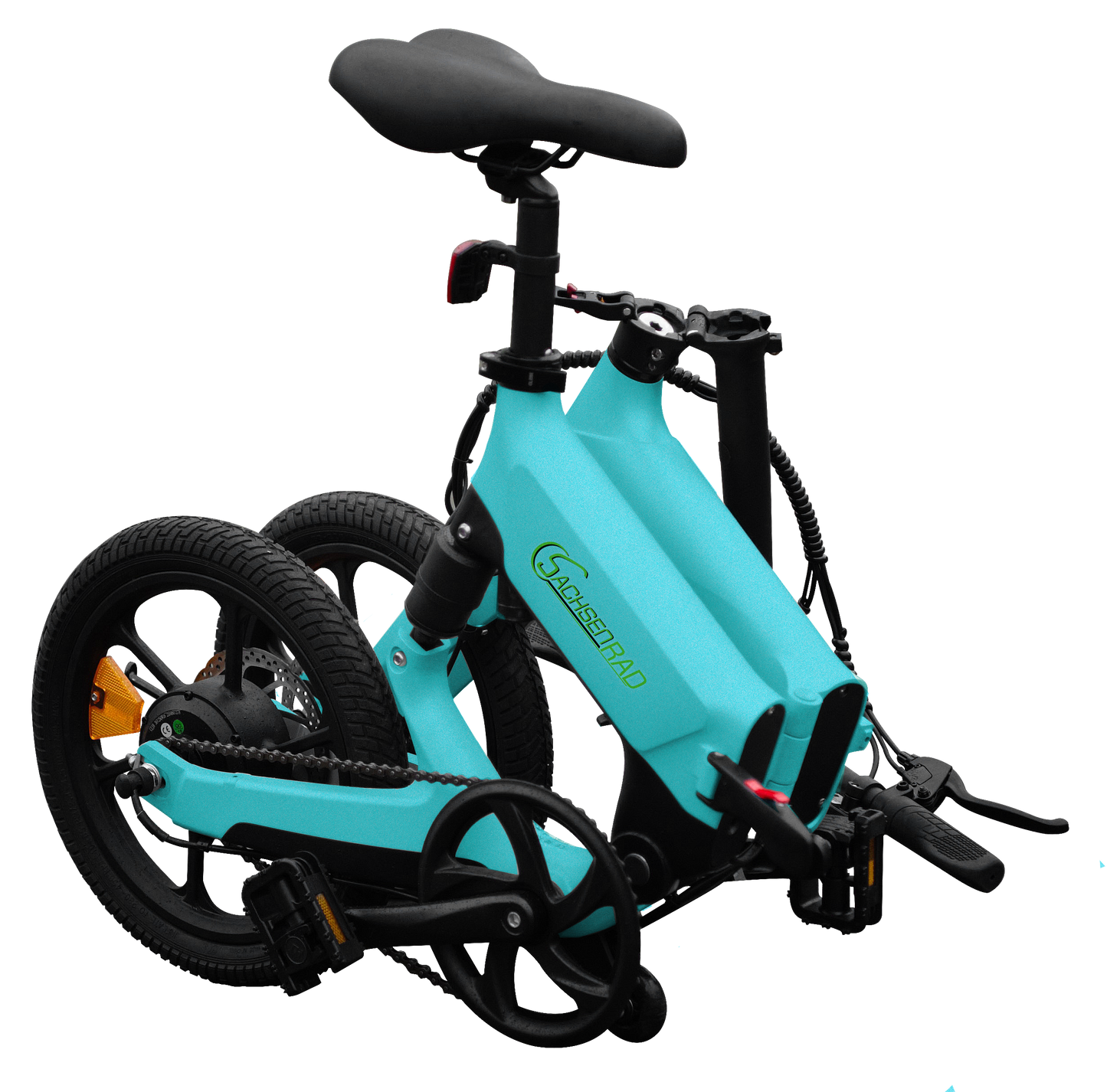

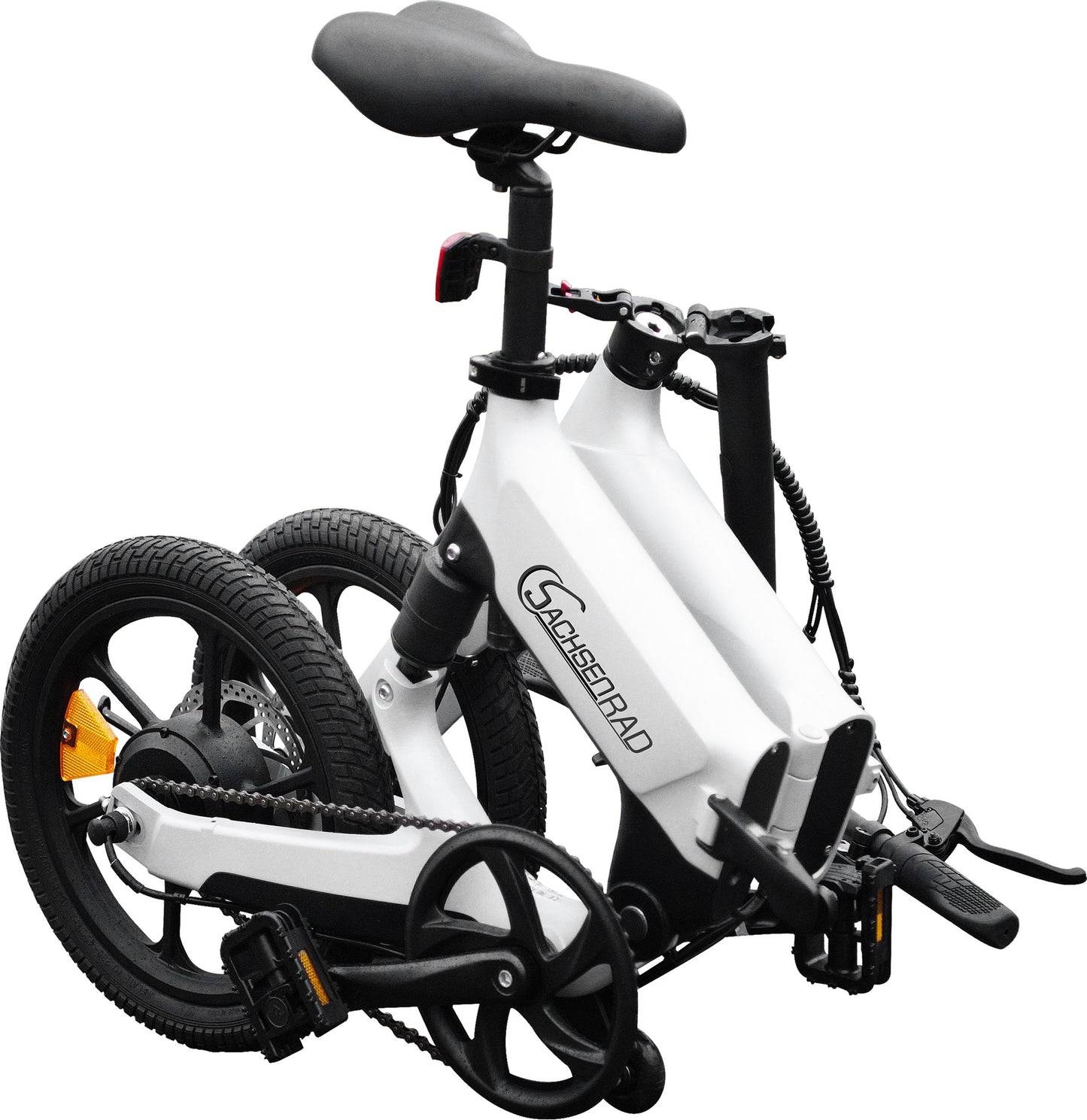

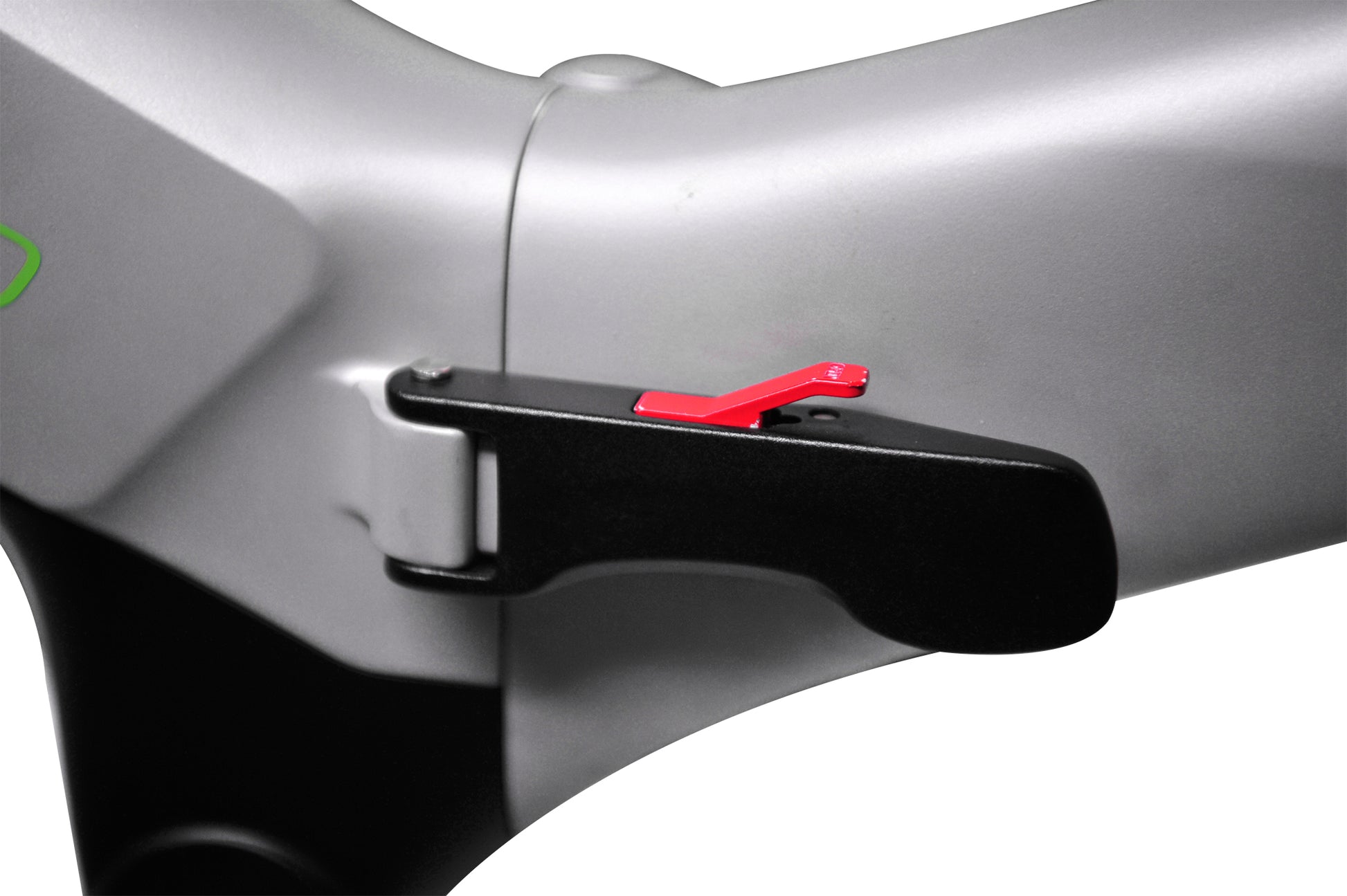

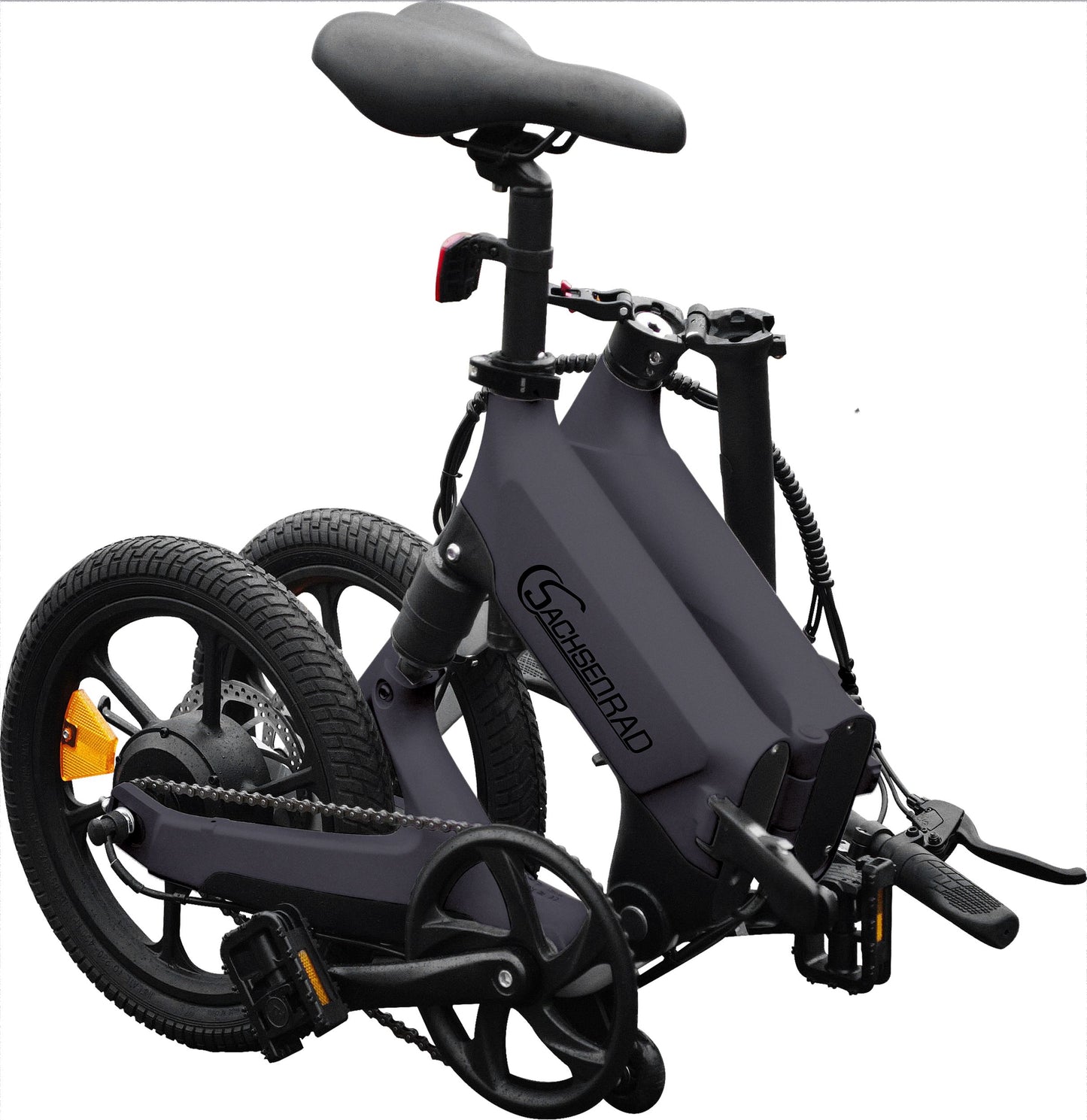

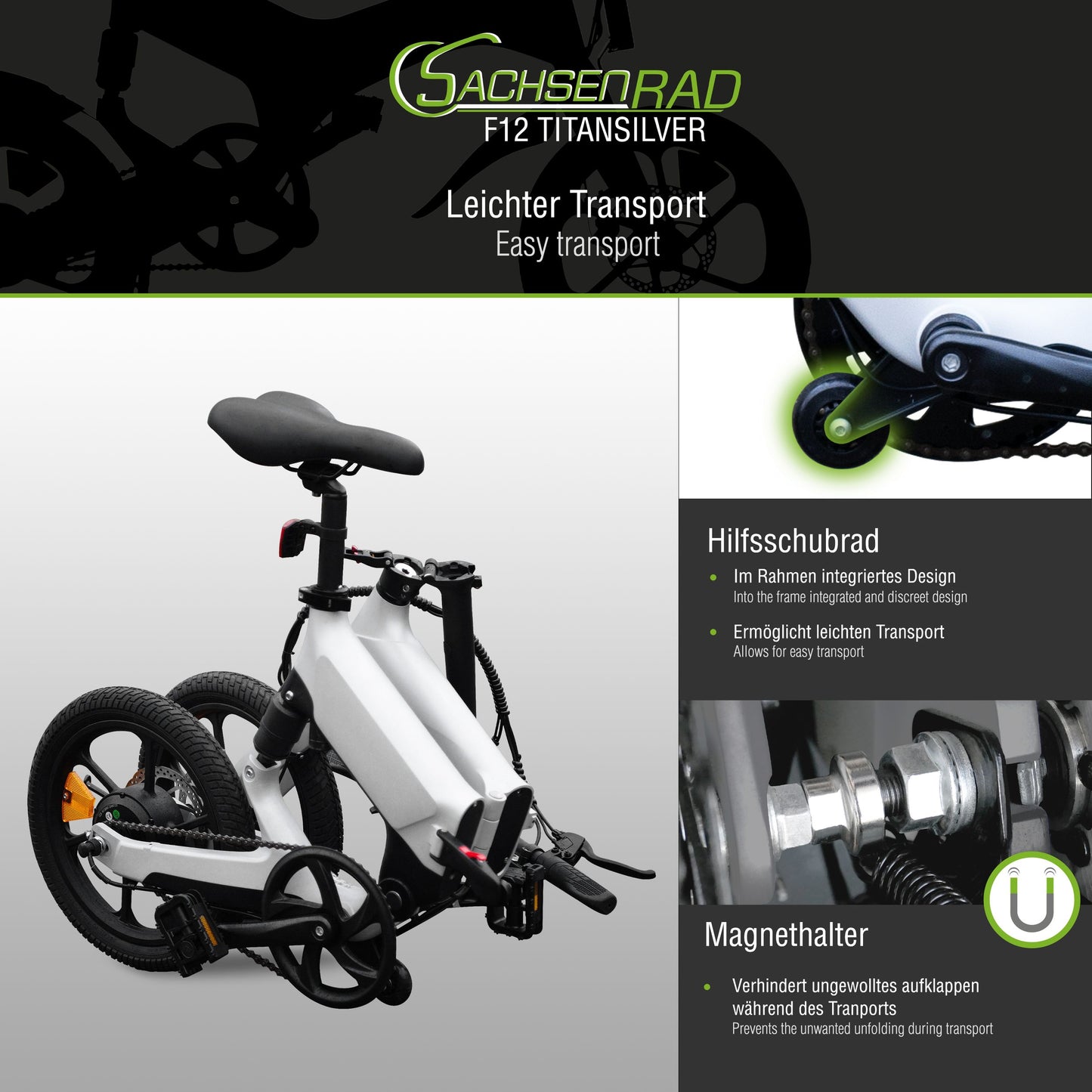

The folding bike can be folded quickly and effortlessly. Open the patented latch on the frame and push the pedals together to fold it. Now you can fold the F12 and, thanks to the auxiliary caster wheel, even push or pull it with one hand on the handlebars. A practical magnetic holder prevents the bike from unfolding on its own during transport. It becomes even more compact when you fold down the handlebars. Then the e-bike fits well in the trunk or on a tram, bus, or train. You can even adjust the seat to your body size (up to 1.90 m) using the 2-stage telescopic seat post and quickly fold it up for transport. Since it is then considered luggage, you can take it free of charge with most transport companies (e.g., Deutsche Bahn)!
Electrified through the city
The SachsenRAD F12 has a low-maintenance single-speed drive. The 250-watt brushless motor provides 3 pedal-assist levels, which feel like three gears to you and can be easily controlled via the LCD display. With an adjusted riding style and depending on the terrain and load, you can easily achieve a range of 50 km. The 5.2 Ah battery is fully charged again in around 5 to 8 hours and is integrated into the frame, where it does not disrupt the beautifully shaped lines of the design.
Become independent
If you want full flexibility on your way through the city, eco-friendly commuting is important to you, and you value beautiful, modern design, then the SachsenRAD F12 E-Folding Bike is just right for you. You can switch between cycling and public transport anytime you like. The pedelec will reliably get you to your destination without breaking a sweat. And there, you don't even need a place to lock it: Simply fold it and take it inside.
Technische Details
Gewicht: 19.2 kg , Produktmaße: 135.8 x 59 x 109.8 cm , geklappt: 80 x 32 x 77 cm
Rahmen & Geometrie Vollständig, Folding frame, aus Magnesium casting, Rahmenhöhe 43 cm, empfohlen für Schrittlänge 80–94 cm, Körpergröße 160–185 cm, Rahmennummer Bottom bracket on the underside, zulässiges Gesamtgewicht 120 kg

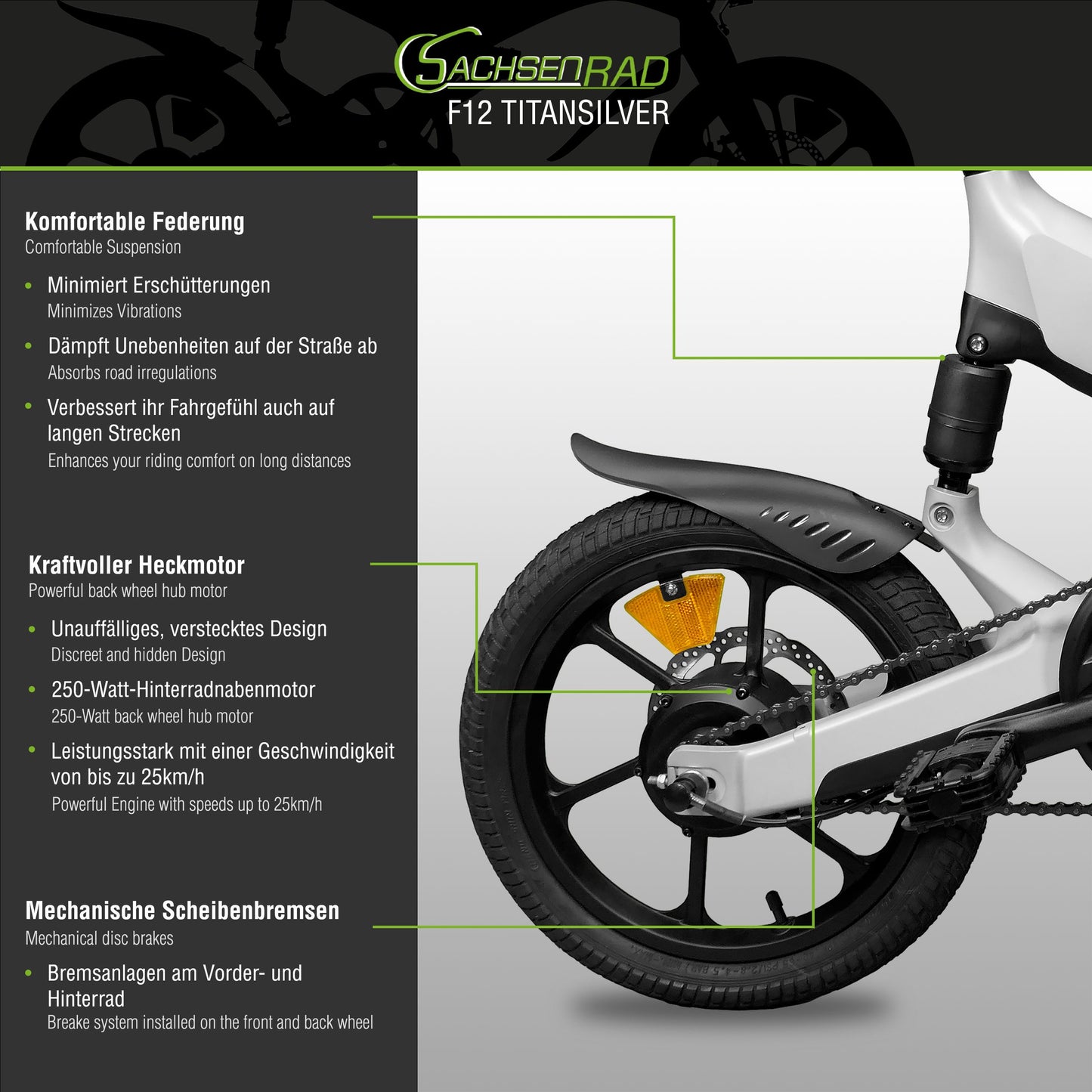

Motor Rear hub motor (Hub), 40 Nm, 36 V/250 W, max. 25 km/h, brushless, low-maintenance
Akku & Stromversorgung 1 Lithium-ion Akku, 190 Wh / 5.2 Ah (36 V), 50 km Reichweite depending on driving style and under optimal conditions, Akkugewicht: 3.5 kg, maintenance-free, geladen in ca. 7 h, Position: fully integrated
Display & Fahrassistenz Displaygröße: 4.5 Zoll, mit 3 Unterstützungsstufen , Anzeige von Battery level, speed, pedal assist level, total mileage, daily mileage, Menüsprache(n): German, English
Schaltung & Antrieb Chain drive Switching between 3 levels of pedal assistance (1 Kettenblatt/-blätter, 1 Ritzel), no chain guard, Flat pedals (foldable)
Bremsanlage
vorne: Disc brake (mechanical), Bremsscheibendurchmesser 160 mm
hinten: Disc brake (mechanical), Bremsscheibendurchmesser 160 mm
Lenker & Vorbau Folding bike handlebars, 590 mm breit, Höhe min. -1 cm, Quick release, ergonomic, non-slip, foldable
Gabel & Federung Telescopic fork (Rigid fork), Rear suspension
Reifen & Laufräder vorne 16.0 Zoll Tubeless tire, hinten 16.0 Zoll Tubeless tire, Breite 1.95 Zoll, 41.0 mm Reifenstärke, Tire valve, empfohlener Reifendruck 2.5 to 4.5 bar
Sattel & Sattelstütze City saddle, -1.0 cm lang, ergonomically designed, Sitzhöhe min. 82 cm, Sitzhöhe max. 103 cm, Patent seat post, Durchmesser 31.6 mm, height-adjustable, befestigt mit Quick release

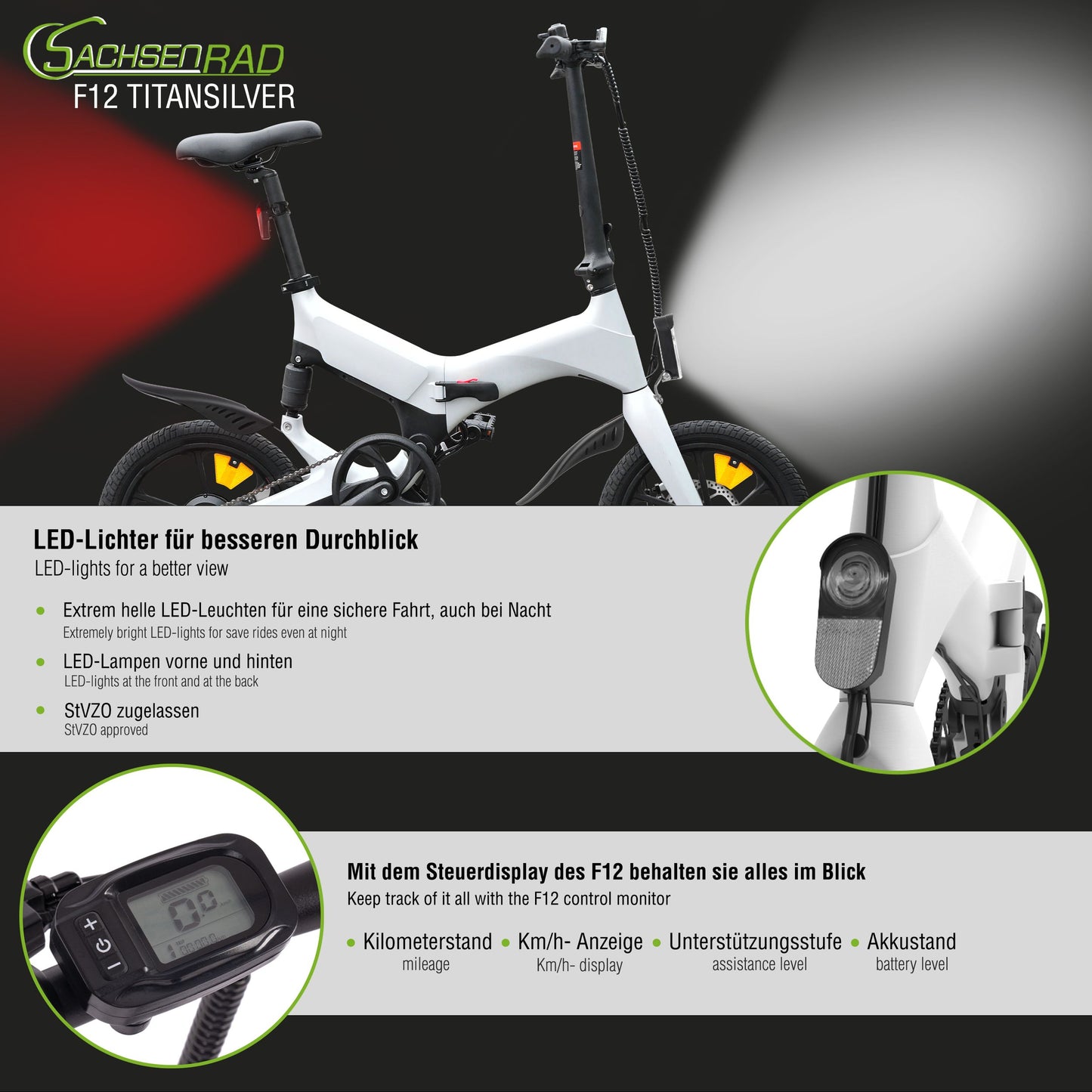

Beleuchtung
Spoke reflectors, pedal reflectors
Frontlicht mit LED, Rücklicht mit LED, Standlicht front
Ausstattung Auxiliary steering wheel, patented folding mechanism, magnetic mount, mudguards, bell, rear suspension, Fahrradständer
Lieferumfang SachsenRad F12 Electric Folding Bike, User Manual, Charger, Bedienungsanleitung
Montagehinweise Check the brakes; the item is almost fully preassembled. Straighten the handlebars., noch zu montieren: Handlebars
