E-folding bike F11 MagPuma with transport bag
E-folding bike F11 MagPuma with transport bag
SKU:BB12163
Couldn't load pickup availability
HIGH-QUALITY FOLDING DESIGN IN ONE PIECE
Our SachsenRA D F11 MagPuma represents a real revolution in urban life and opens up new horizons for your mobility. Thanks to the F11, you can avoid typical everyday obstacles such as looking for a parking space, traffic jams and poor public transport connections in a way that is both simple and ingenious. Our intelligent, foldable e-bike supports you in your healthy lifestyle and at the same time guarantees elegance and speed on the last mile. The MagPuma comes in a high-quality, aesthetically pleasing design, with strong recognition value and clear differentiation from other e-folding bikes.

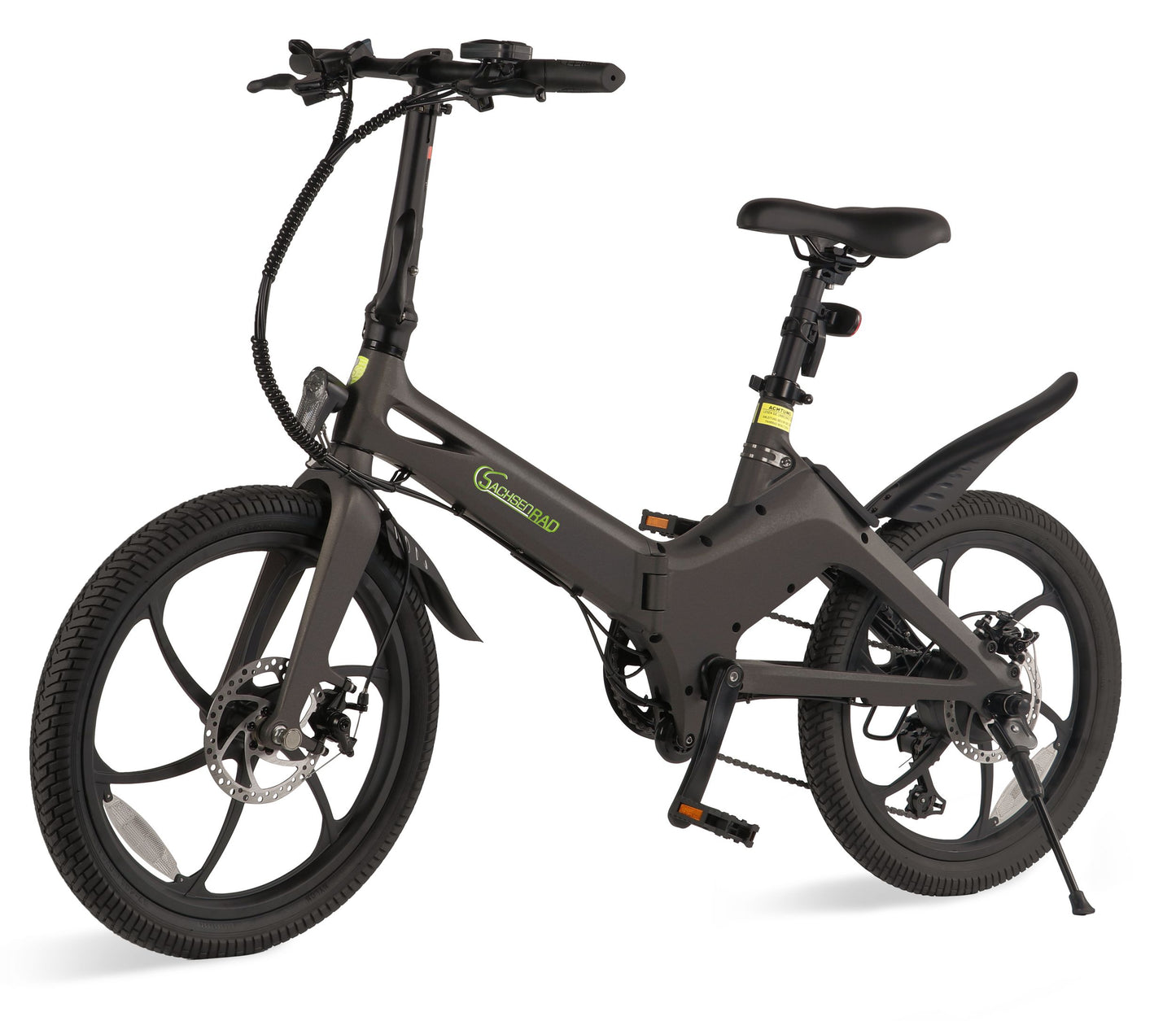

Frame cast from extra strong magnesium
The absolute highlight of the F11 MagPuma is its compact, 19 kg lightweight magnesium frame , which is manufactured using an industrial die-casting process and therefore consists of a single piece. This aircraft-grade and environmentally friendly material makes the e-bike extremely light, reliable and safe. We therefore use the same processes in producing the frame as are even used in the manufacture of modern electric cars. The material and the die-casting process give the frame first-class wear resistance and maximum stability . The frame was put through its paces in the factory and passed extreme break tests in which it was exposed to high tensile and compressive forces as well as vibrations 300,000 times.

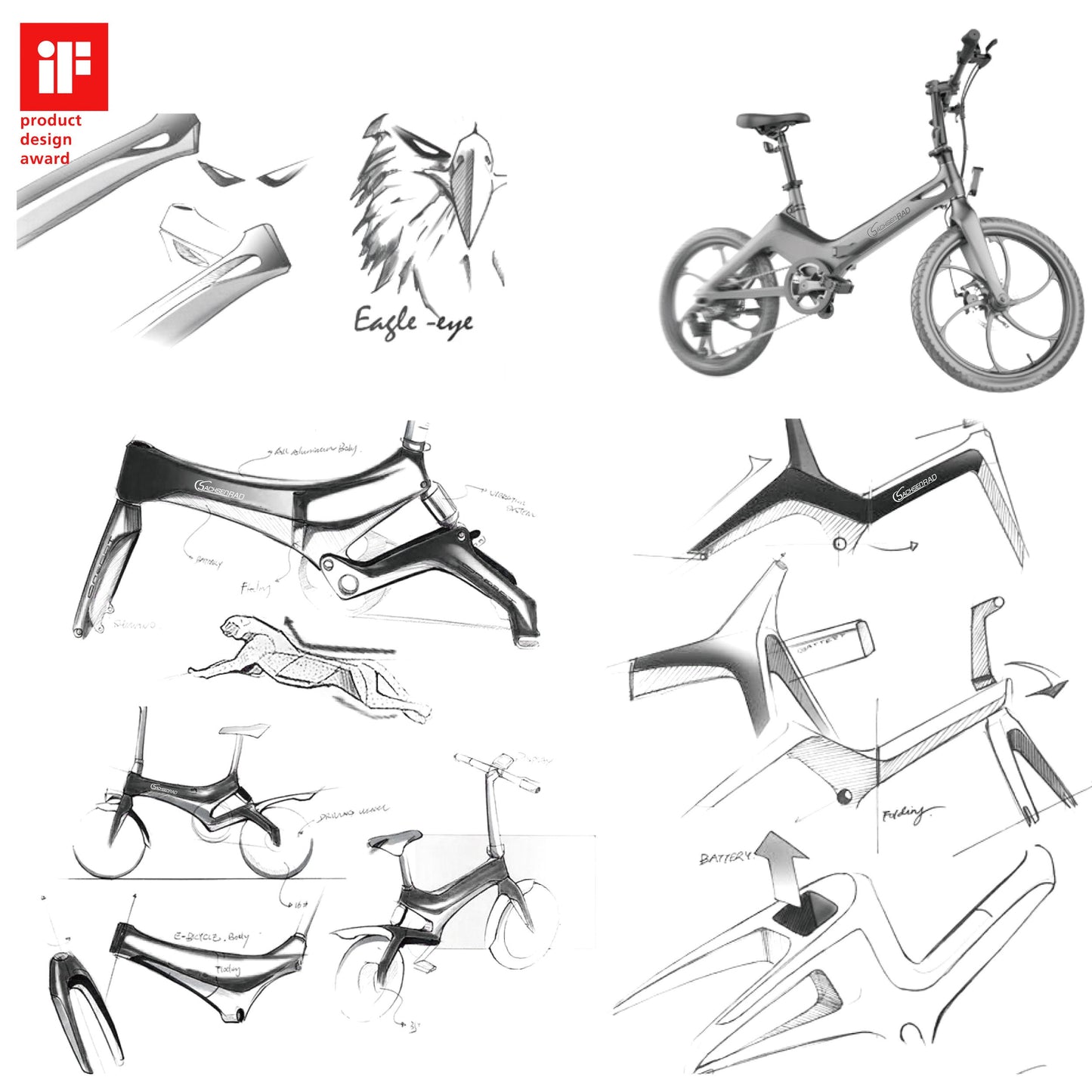

Award-winning, patented design

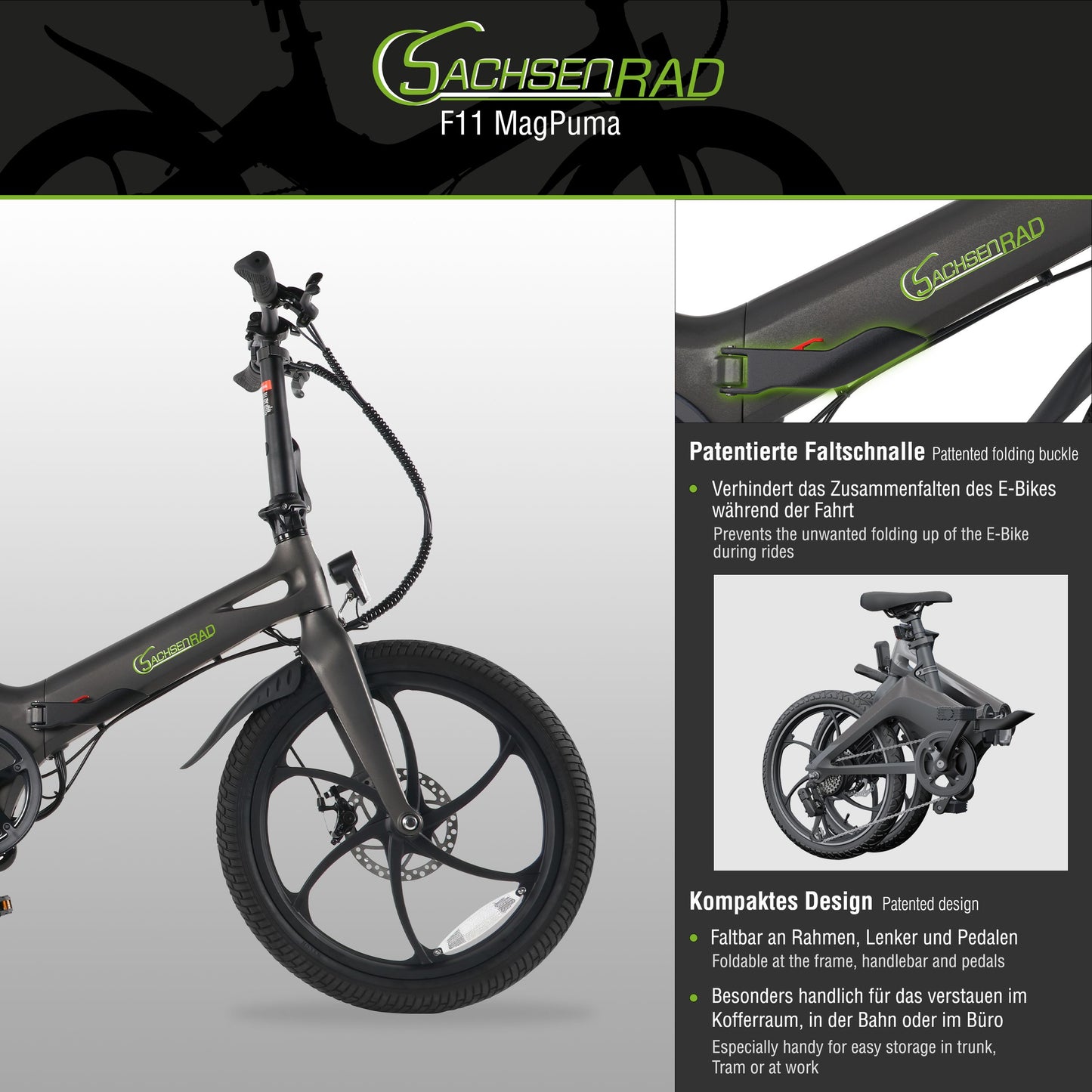

Since the frame is cast, we can do without welds. The patented design is inspired by a jumping puma and also impressed the jury of the renowned Industry Forum Design , who awarded it the IF Design Award in the bicycle category. Other patents include the unusual folding structure, the folding buckle and the battery lock.
Just drive, fold, pack

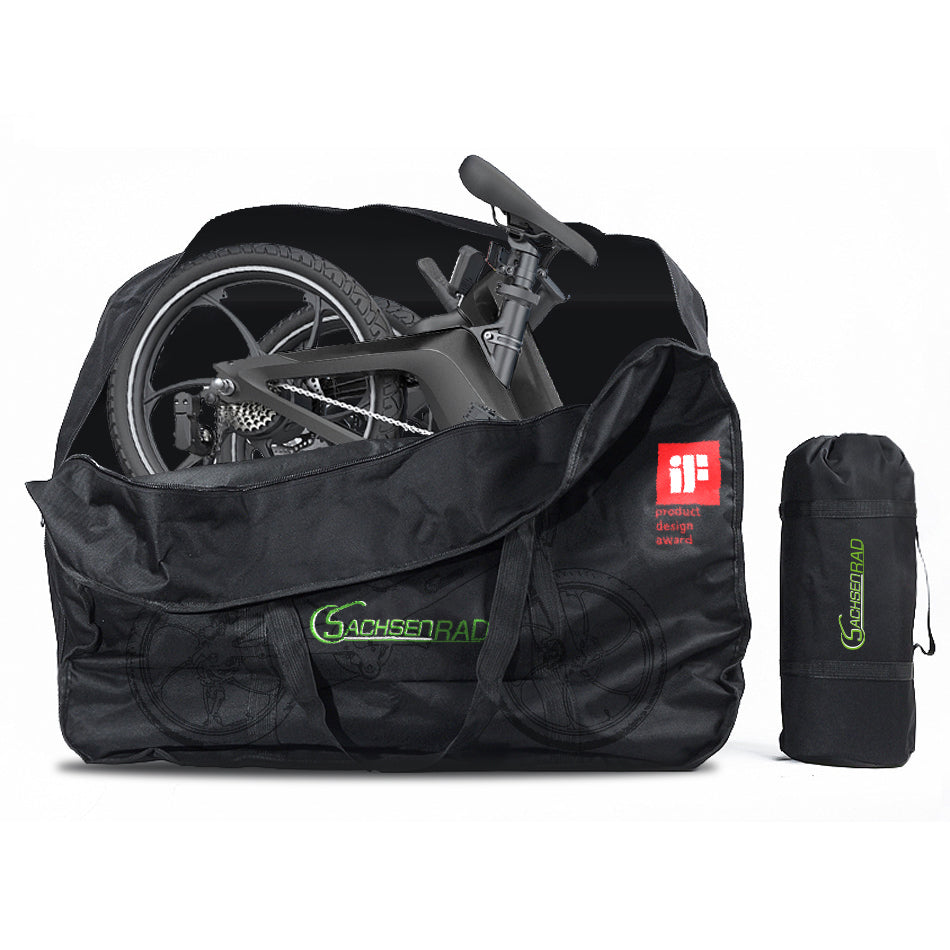

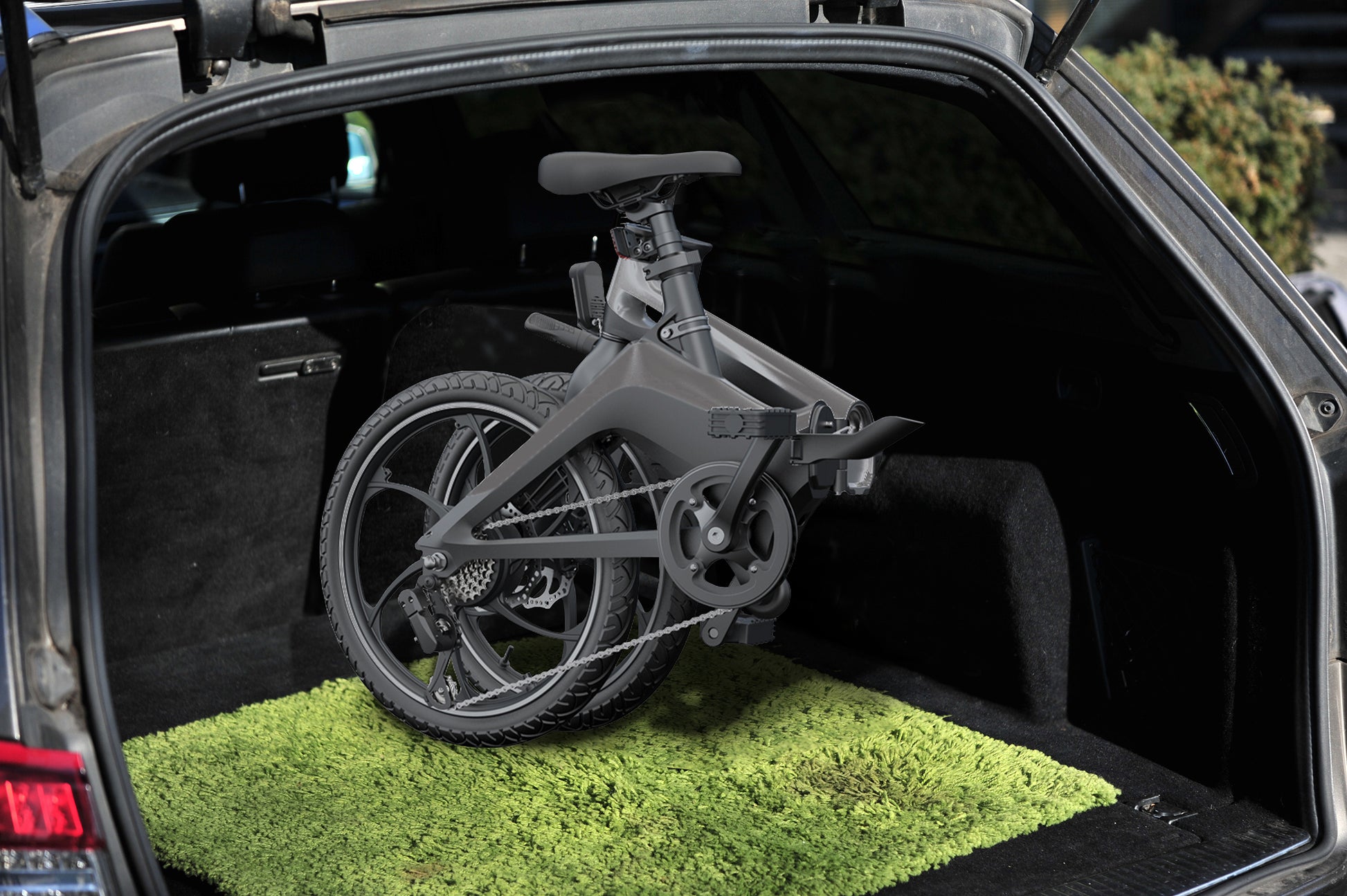

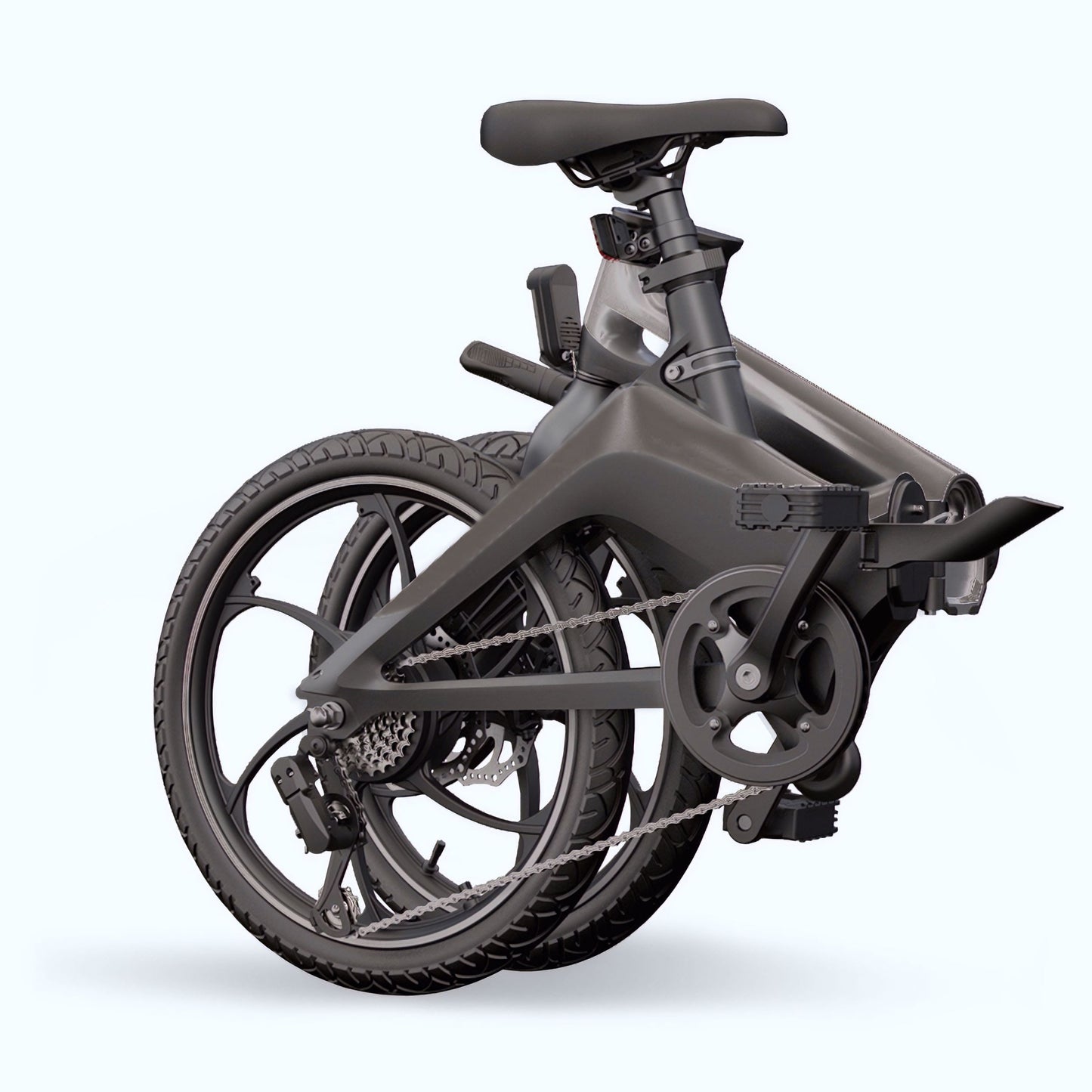

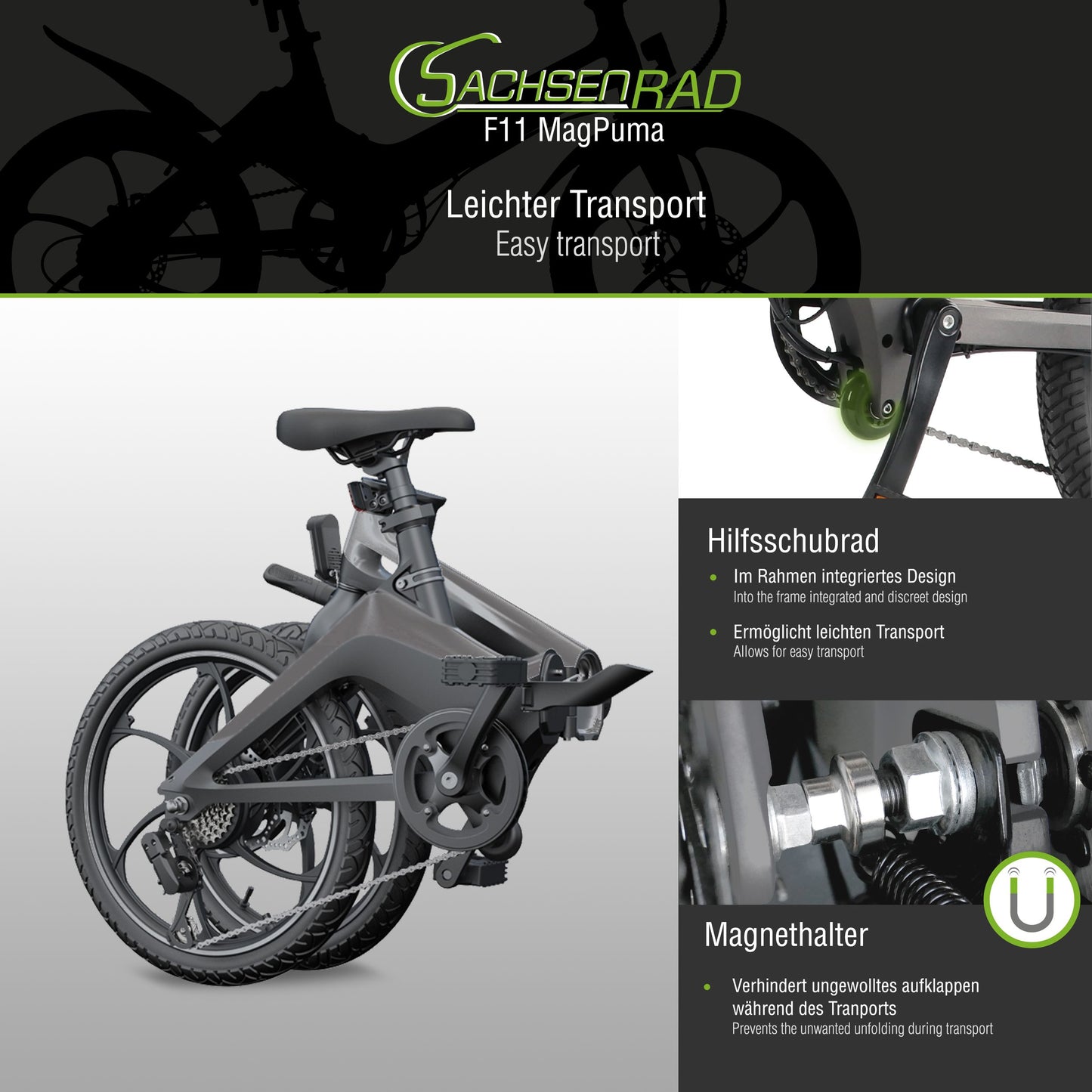

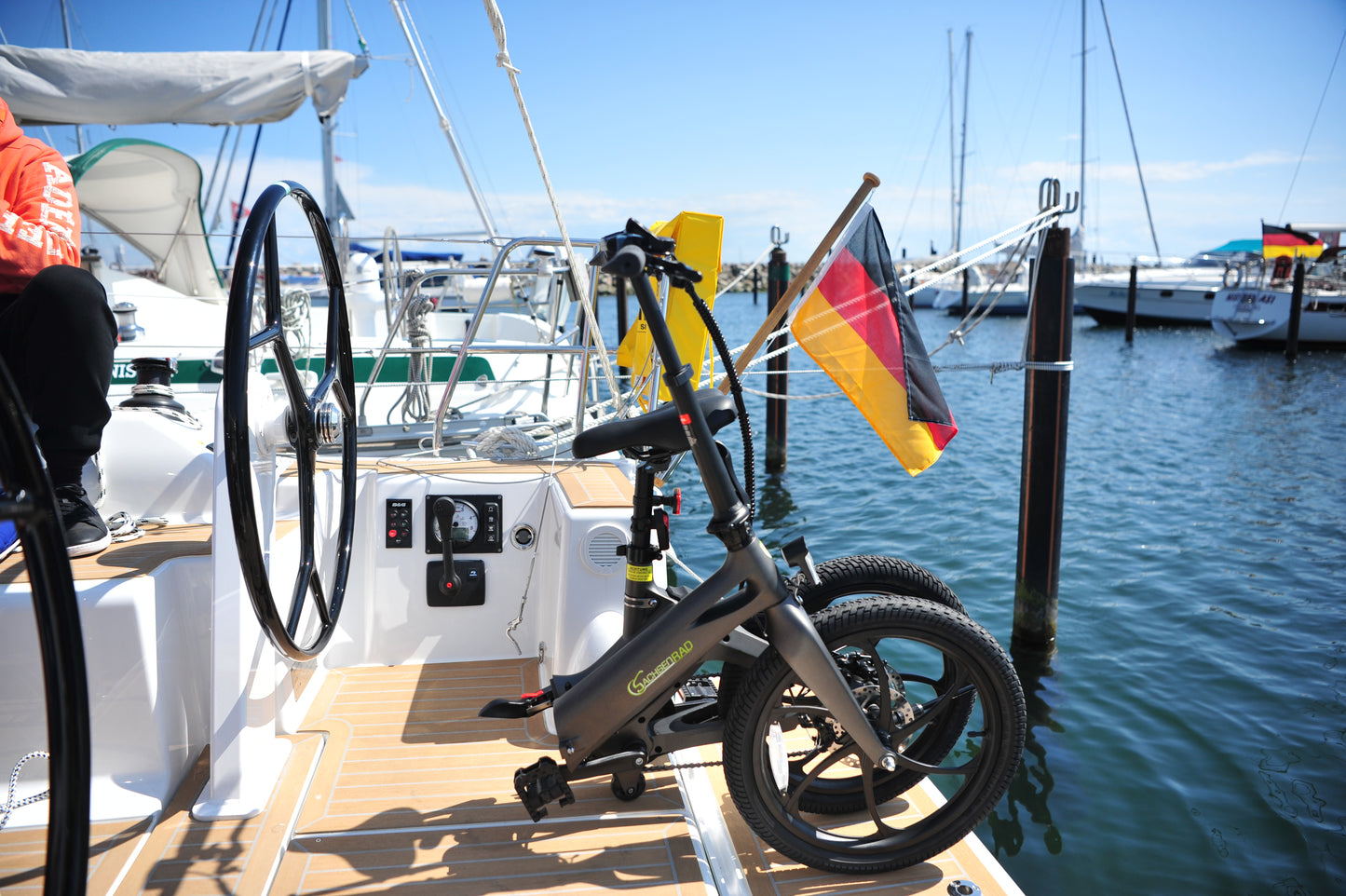

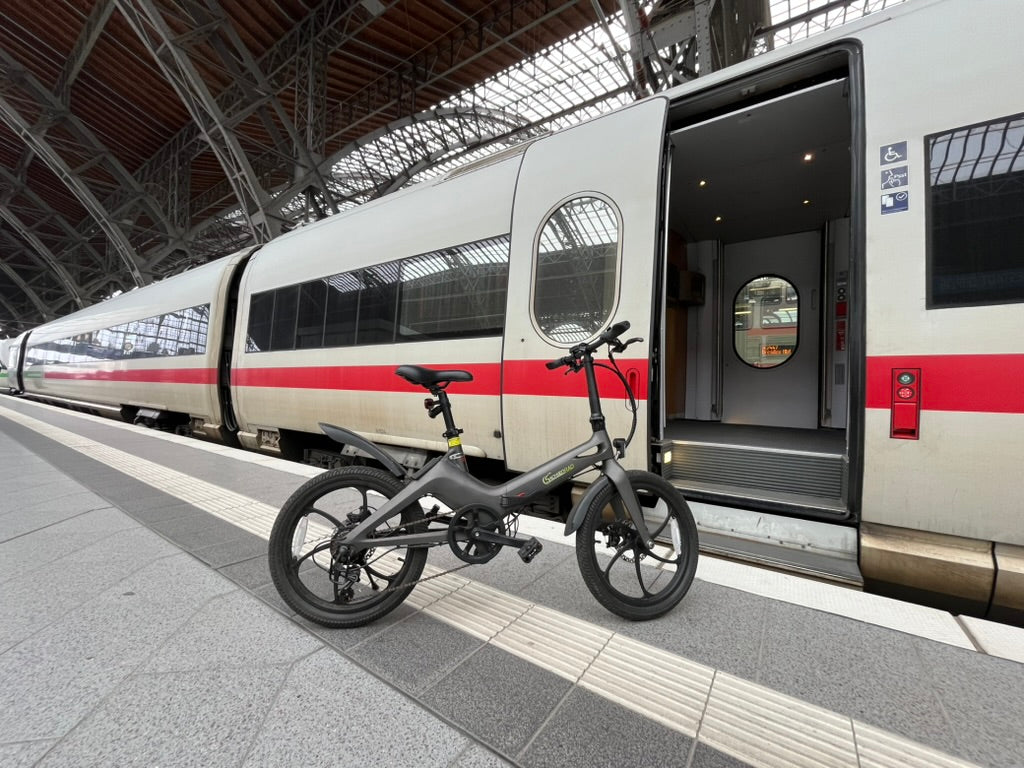

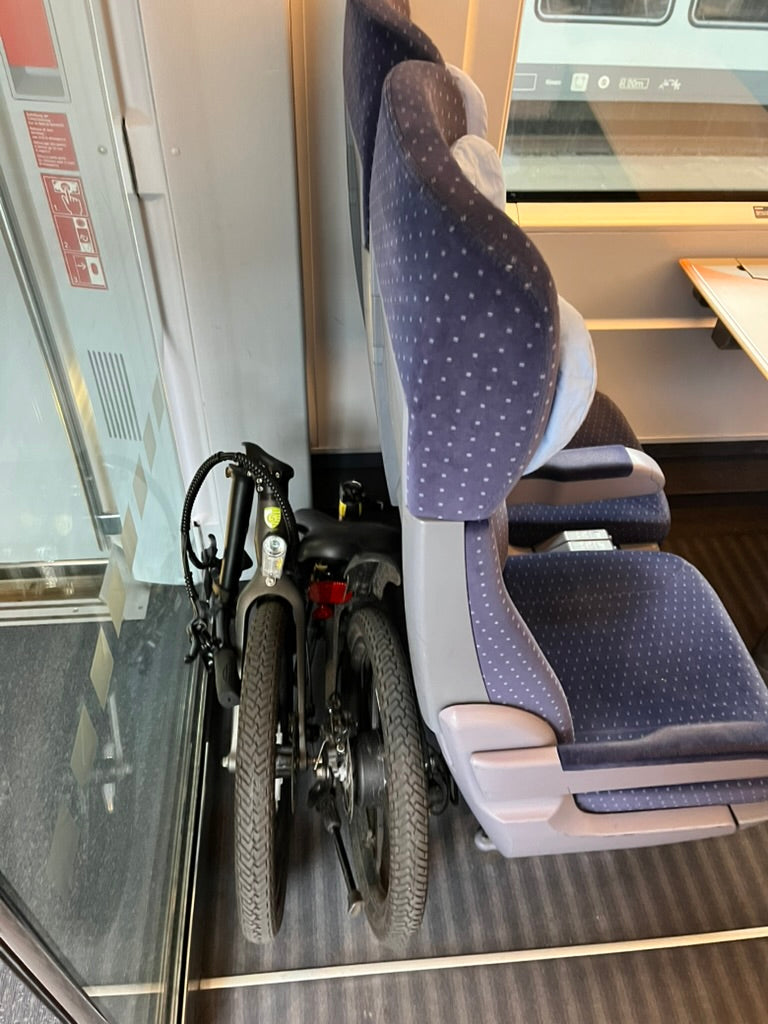

A folding bike is a great companion in the city. With an electric motor, you can easily tackle mountainous roads and long distances. Thanks to the triple folding structure of the E-Folding Bike F11, you can fold it up to a handy size (on the frame, handlebars, pedals) and store it in any corner - whether in your trunk, at work or in your apartment, in a camper van, caravan or on a boat. We also supply a free transport bag for the F11 MagPuma electric bike - this gives you a watertight argument to the public transport staff if there is any doubt that the folding bike is hand luggage. Another practical detail: a magnetic holder prevents the bike from opening when folded.
Going further electrically
A range of 80 km in ECO mode is more than enough to get anywhere in the city at any time. The patented battery locking system lets you pull out the battery quickly and easily and charge it anywhere. Of course, the battery is lockable. The motor's innovative sensor design also automatically detects the condition of the road, such as uphill driving, and adjusts the motor power intelligently and efficiently.
Quality down to the last detail

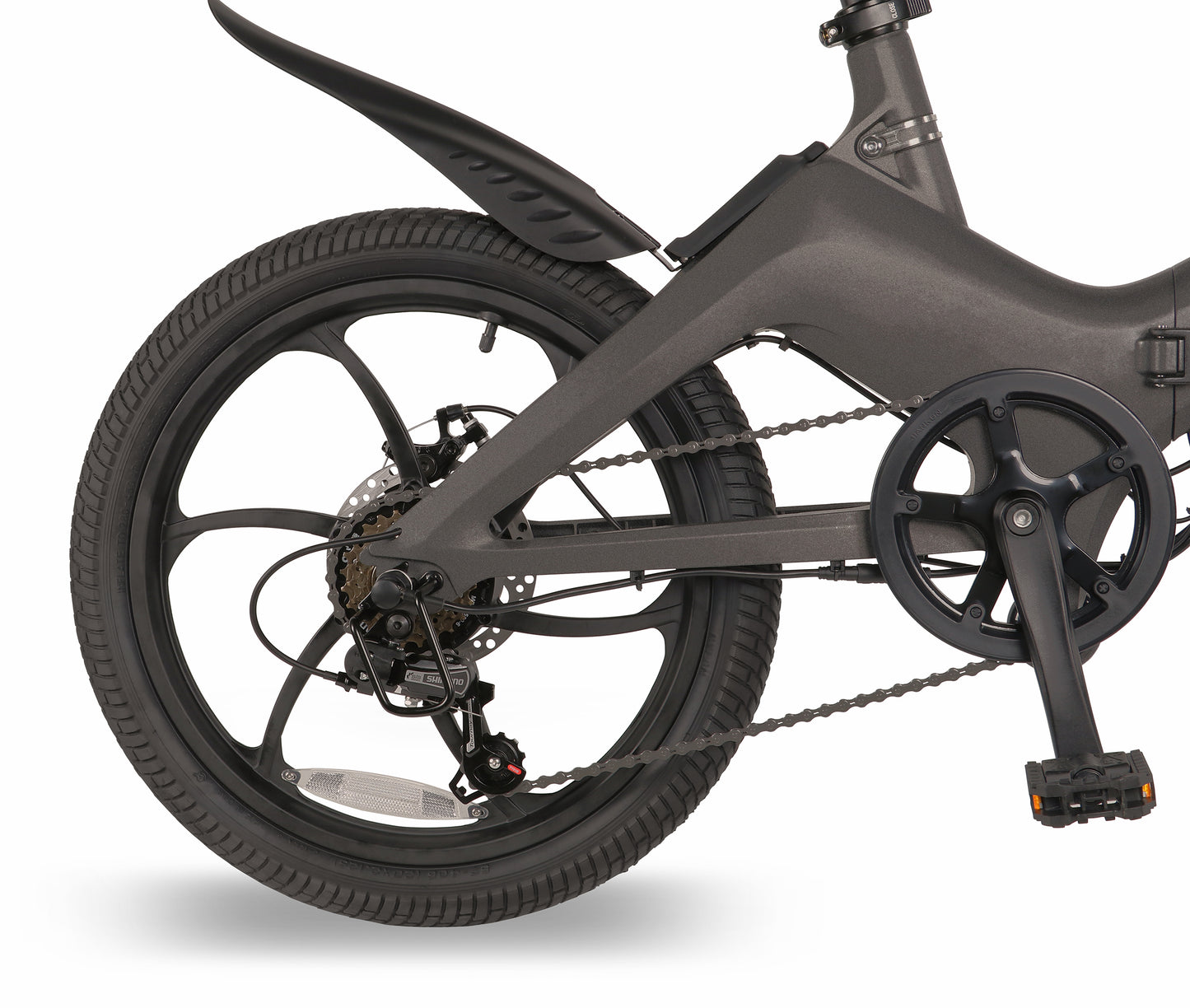

The MagPuma is not only comfortable and practical to handle, but also to cycle. This is ensured by a comfortable saddle and the 6-speed quality rear derailleur from Shimano. Furthermore, the lighting and mechanical disc brakes at the front and rear ensure that the F11 StVZO is approved.
- - - - - - - - - - - - - - - - - -

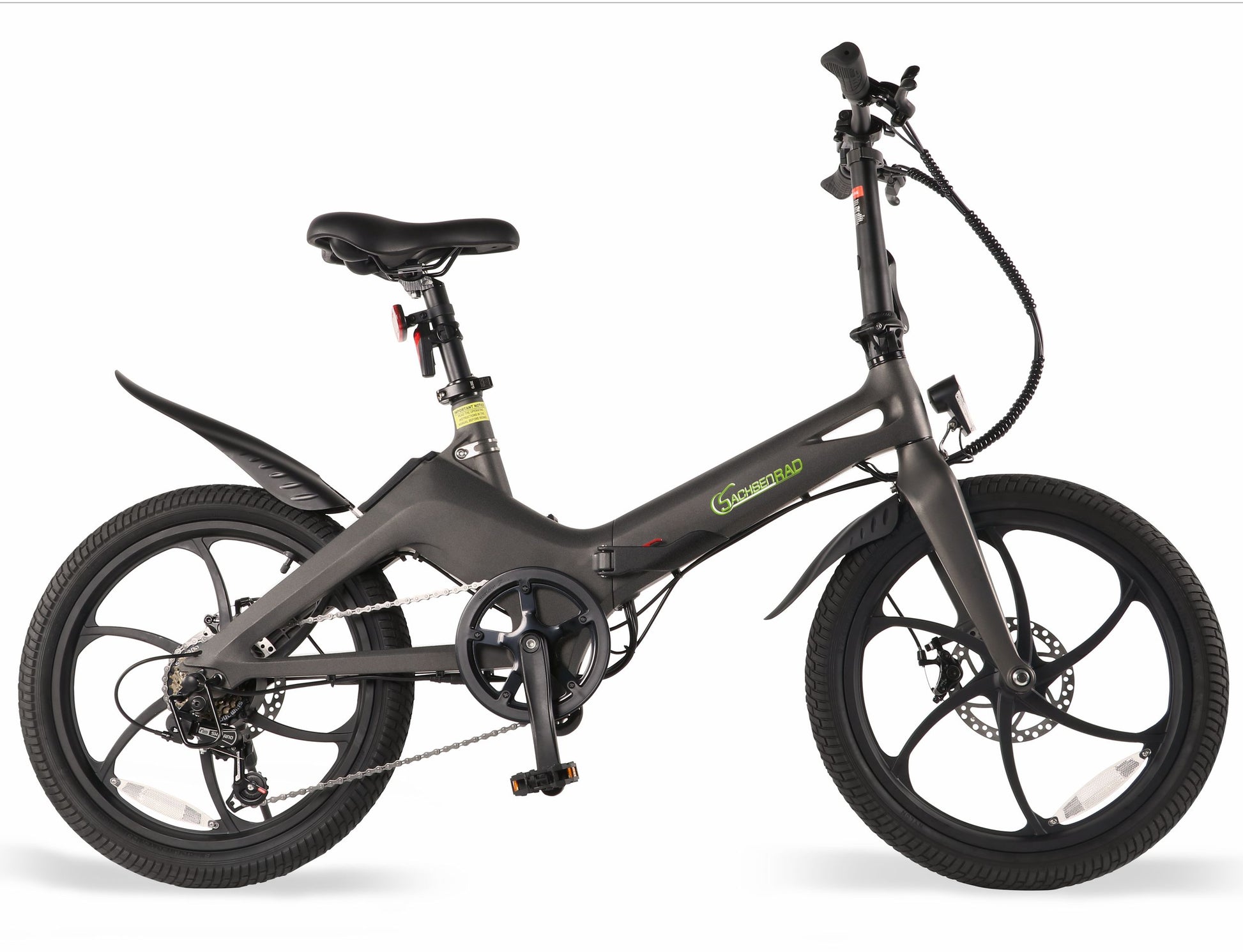

Technical details
COLOR
Black
FRAME MATERIAL
Extremely stable magnesium alloy (over 30,000x tested against shocks and stretching)
FRAME
patented frame
unfolded: 1520x650x1080mm

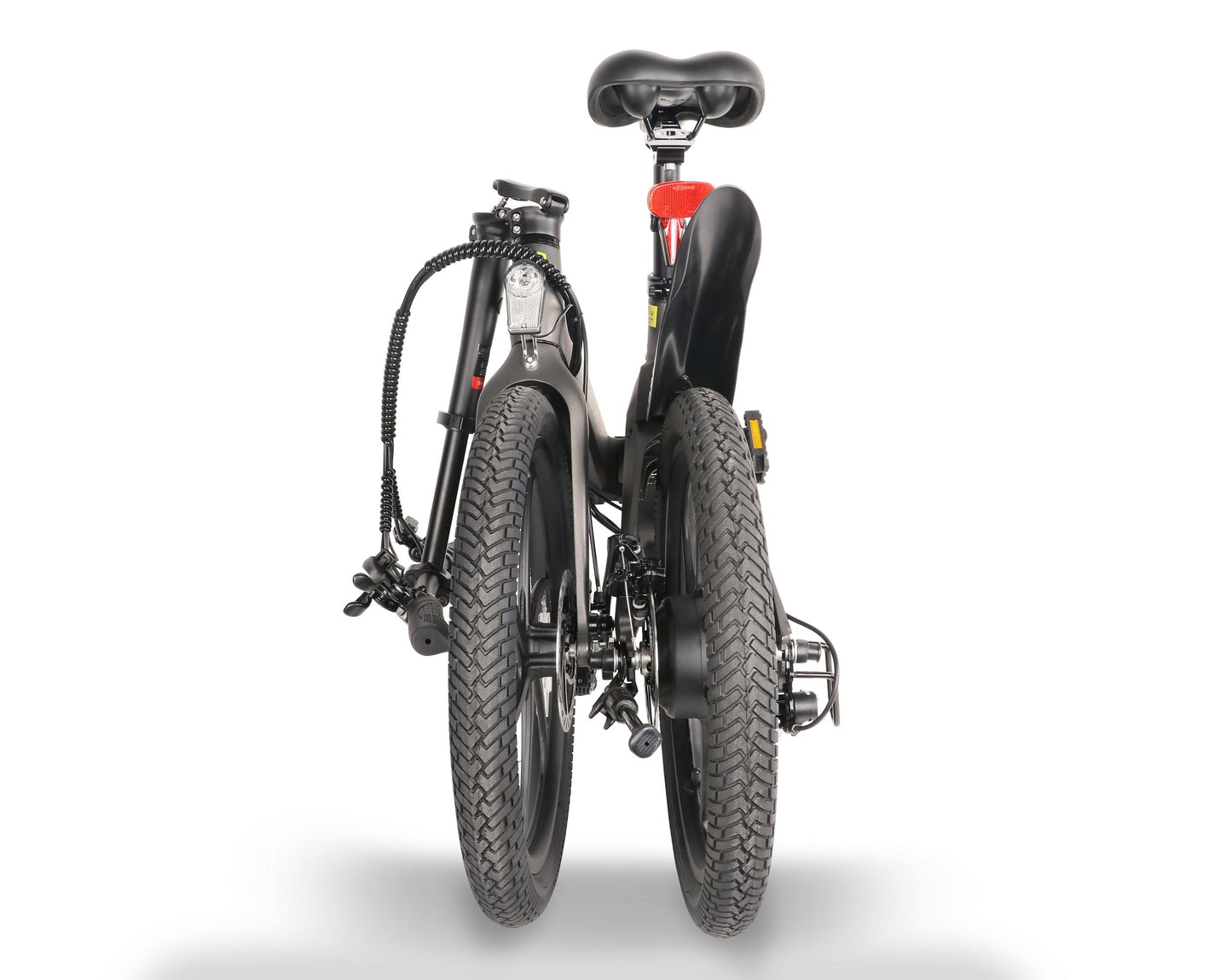

folded: 800x430x670mm
TIRES
On- and off-road tires, 20x2.125"
CIRCUIT
Shimano SIS 6-speed gears
BRAKE
mechanical disc brake
ENGINE:
36V, 250W
SPEED
up to 25km/h, speed sensor
BATTERY
36V / 7.8Ah lithium battery, charger 42V, 1.5A
RANGE
80km maximum range in ECO mode
STAND
Rear stand (aluminium)

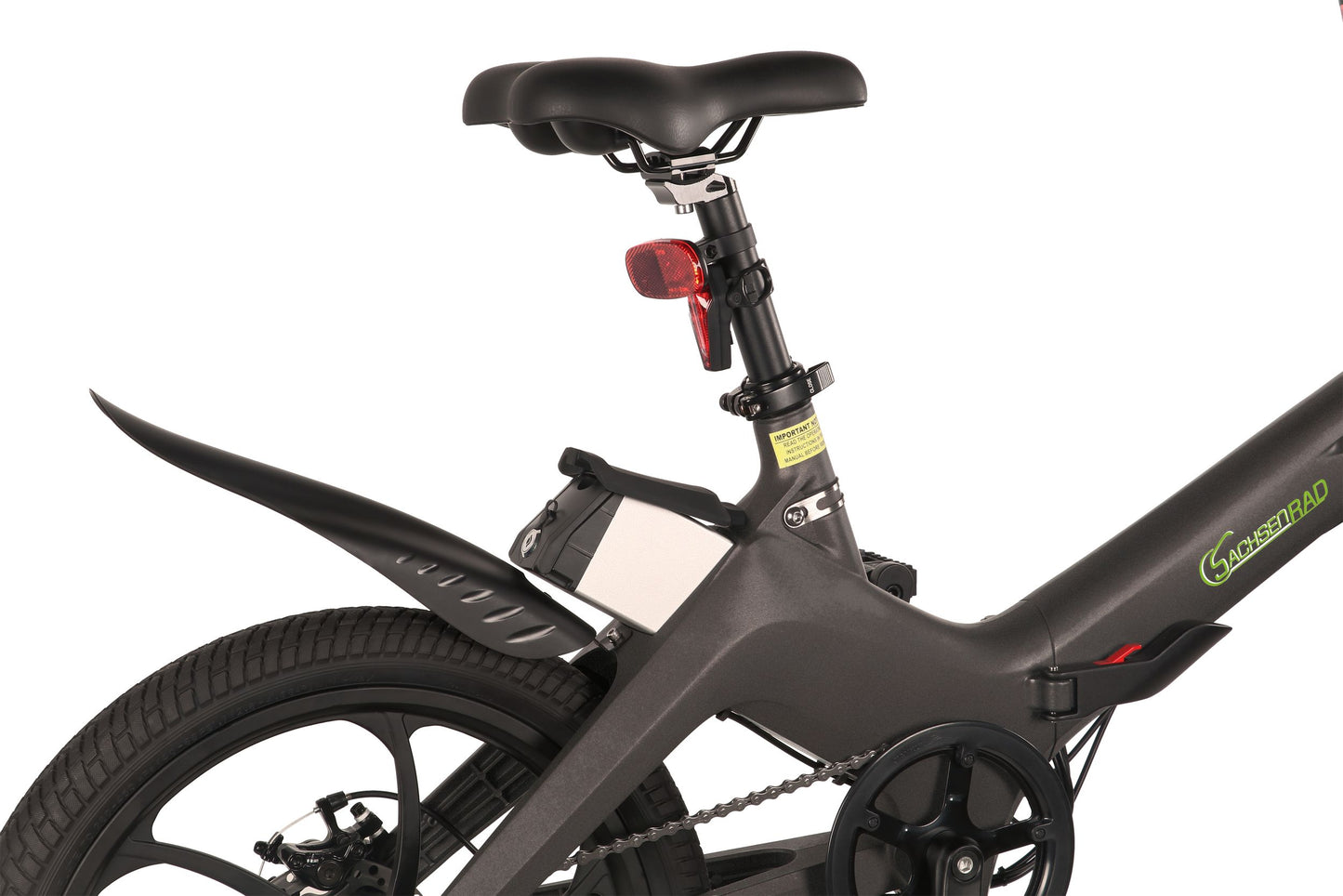

SADDLE
ergonomic SachsenRAD saddle
PARTICULARITIES
with free carrying bag, magnetic closure, foldable, LCD control display, Pedelec driving mode, LED front light / rear light, StVZO approval,
WEIGHT
19.8kg including battery, 120kg permissible load
SCOPE OF DELIVERY
SachsenRAD F11 MagPuma, carrying bag, user manual , charger 42V 1.5A
category
Bicycle | eBike | E-folding bike
Technische Details
Gewicht: 19.8 kg , Produktmaße: 152 x 65 x 108 cm , geklappt: 80 x 43 x 67 cm

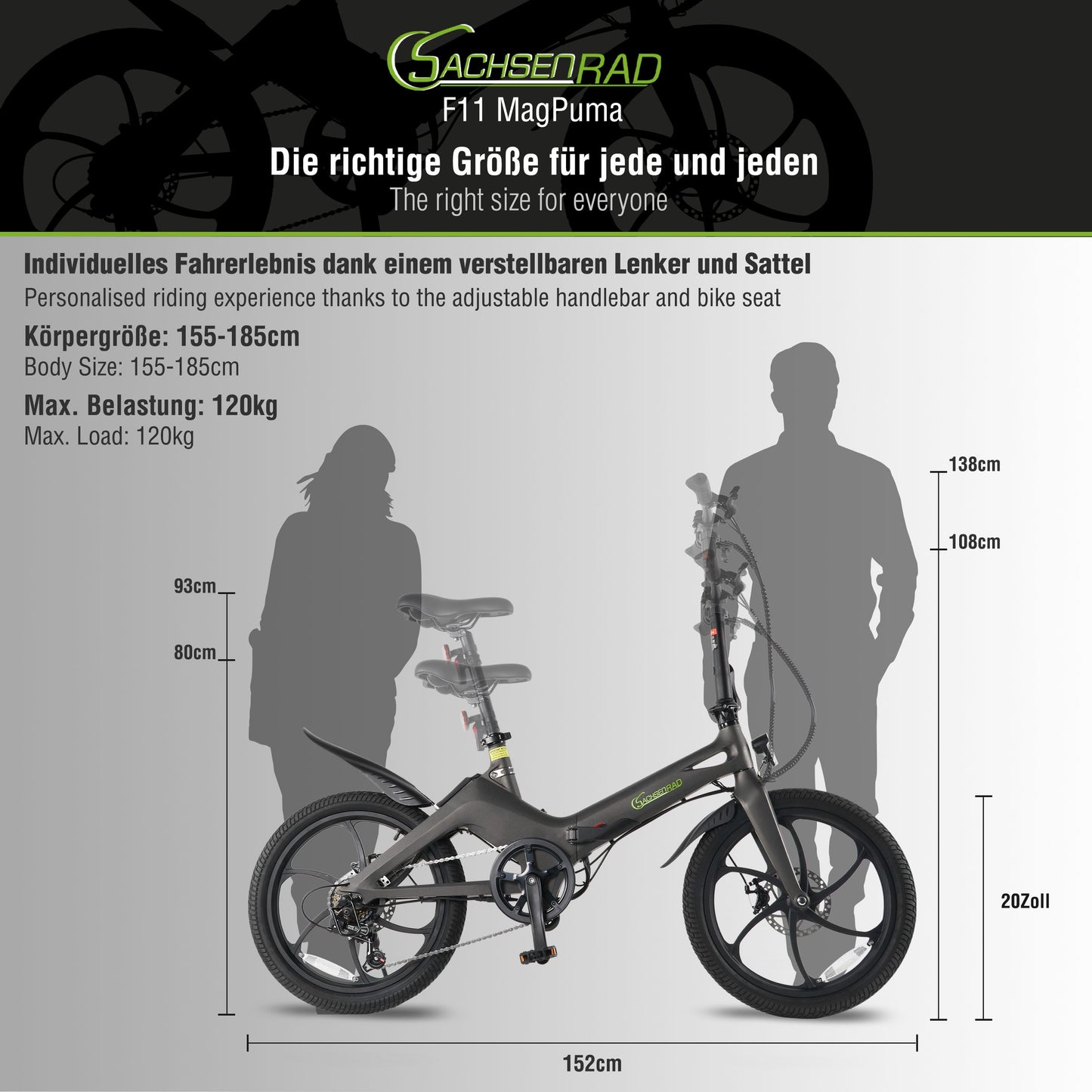

Rahmen & Geometrie Hardtail, Faltrahmen, aus Magnesium alloy, Rahmenhöhe 36 cm, empfohlen für Schrittlänge 79–73 cm, Körpergröße 159–185 cm, zulässiges Gesamtgewicht 140 kg

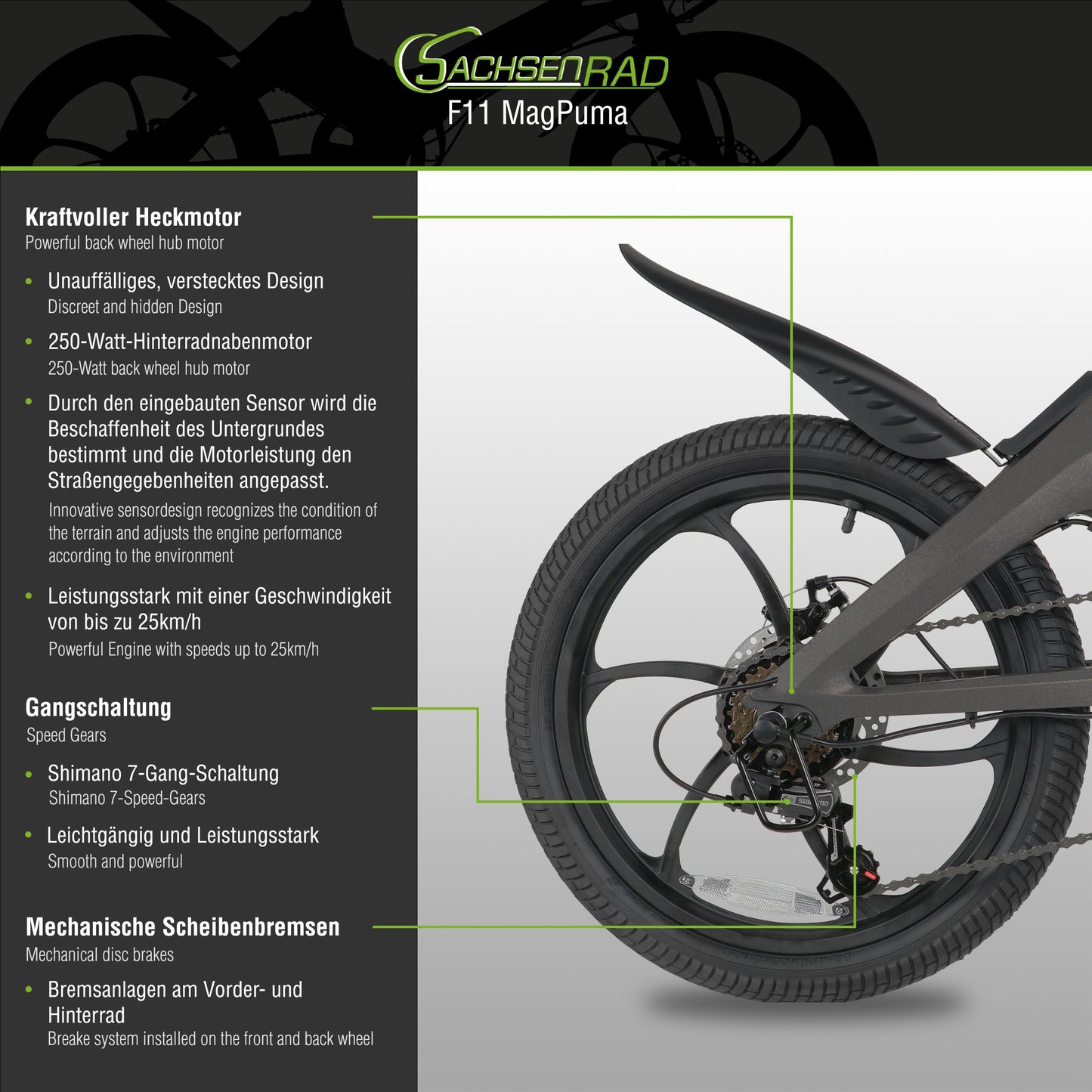

Motor SachsenRAD Hinterradmotor (Nabe), 40 Nm, 36 V/250 W, max. 25 km/h, bürstenlos, wartungsarm
Akku & Stromversorgung 1 SachsenRAD Lithium-Ionen Akku, 280 Wh / 7.8 Ah (36 V), 80 km Reichweite je nach Fahrweise, bei optimalen Bedingungen, Akkugewicht: 2.75 kg, abnehmbar und abschließbar, geladen in ca. 6 h, Position: Downtube
Display & Fahrassistenz Displaygröße: 4.5 Zoll, mit 3 Unterstützungsstufen und Schiebehilfe , Anzeige von Batteriestand,Unterstützungsstufen,Geschwindigkeit,Motor-Output,Fahrzeit, Distanz- und Gesamtstrecke, Fehlercodes, Assistent-Funktion, Beleuchtung ein-/ausschalten, Menüsprache(n): Englisch
Schaltung & Antrieb Kettenantrieb, Shimano SIS Kettenschaltung 6 Gang/Gänge (1 Kettenblatt/-blätter, 6 Ritzel), kein Kettenschutz, Shimano, Plattformpedale (klappbar)
Bremsanlage

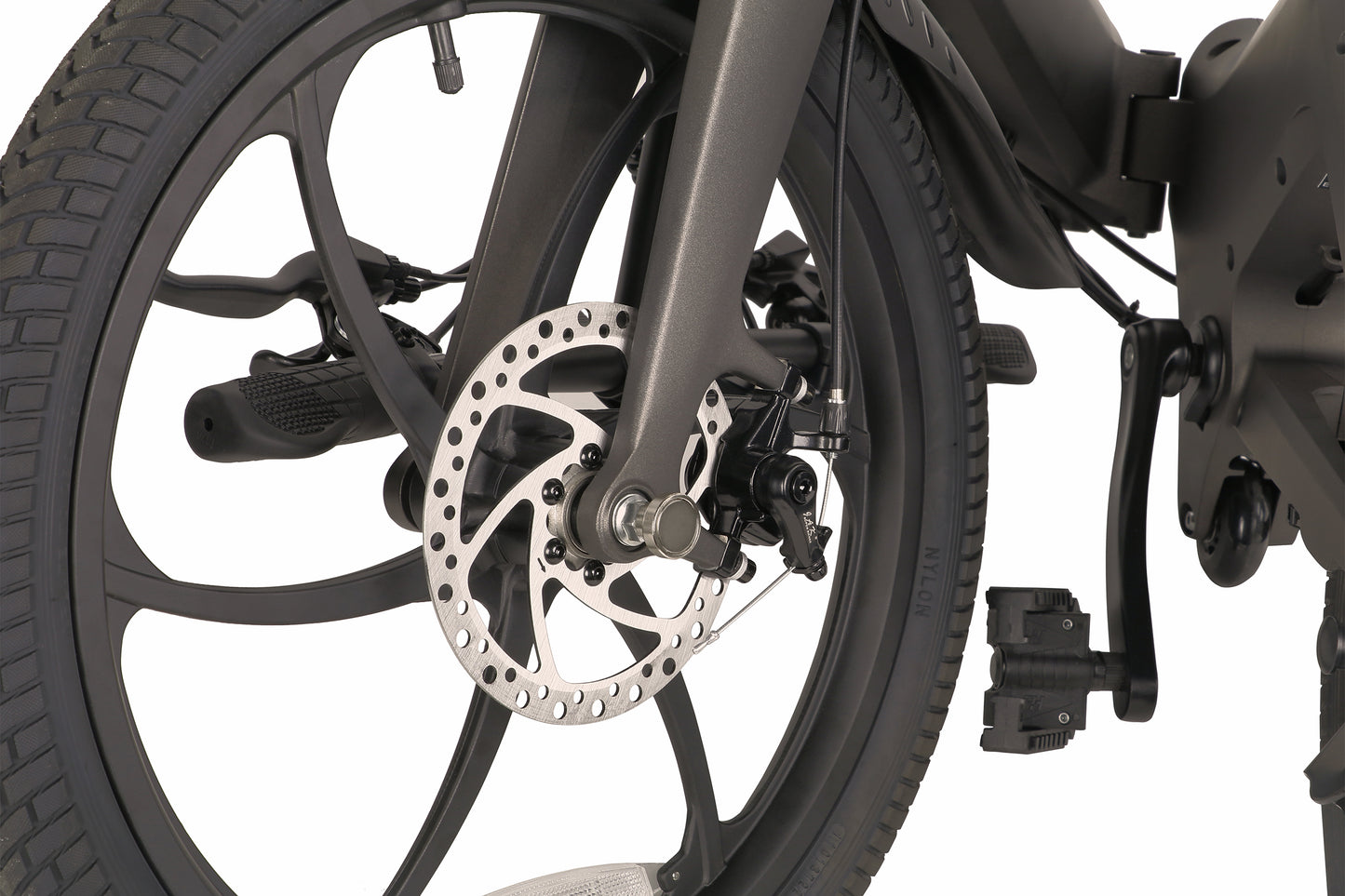

vorne: Scheibenbremse (mechanisch), Bremsscheibendurchmesser 160 mm
hinten: Scheibenbremse (mechanisch), Bremsscheibendurchmesser 160 mm
Bremsbeläge: 30x20mm; Befestigungsloch: Ecke
Lenker & Vorbau 640 mm breit, Höhe max. 115 cm, ergonomisch, rutschfest, klappbar
Gabel & Federung Starrgabel (Starrgabel)
Reifen & Laufräder vorne 20.0 Zoll Schlauchreifen, hinten 20.0 Zoll Schlauchreifen, Breite 2.125 Zoll, 54.0 mm Reifenstärke, Autoventil
Sattel & Sattelstütze Citysattel, 26.0 cm lang, 20.0 cm breit, Sitzhöhe min. 89 cm, Sitzhöhe max. 93 cm, Patentsattelstütze, Länge 34.0 cm, Durchmesser 31.6 mm, befestigt mit Schnellspanner

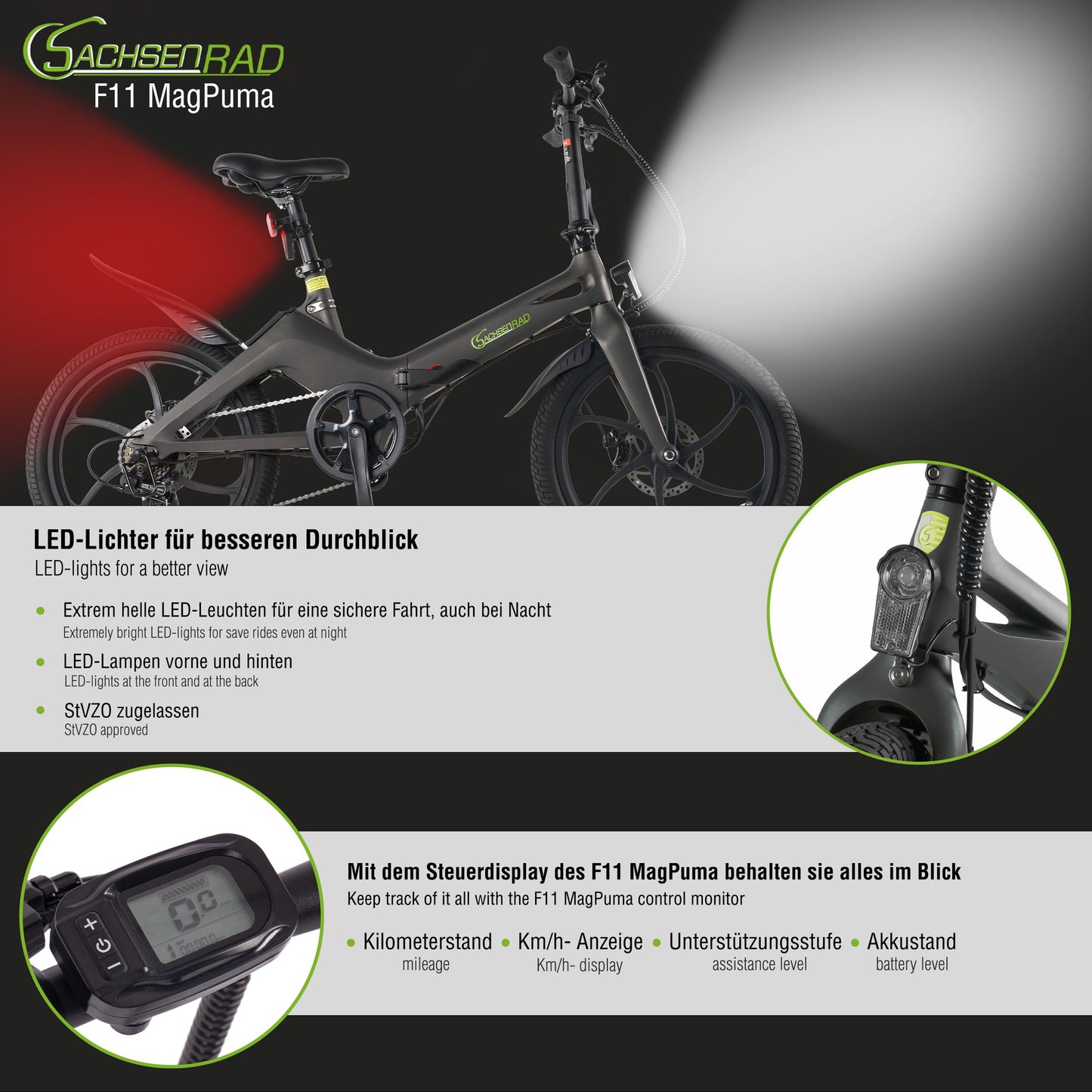

Beleuchtung
Pedalreflektoren, Speichenreflektoren
Frontlicht mit LED (Dauerlicht, Nachtfahrlicht), Rücklicht mit LED, Standlicht vorne
Ausstattung Klingel, Frontlicht, Rücklicht, Schutzbleche, Fahrradständer
Lieferumfang SachsenRad F11 MagPuma, Ladegerät, Transporttasche, Bedienungsanleitung
Montagehinweise Bremsen prüfen, der Artikel ist fast vollständig vormontiert, Lenker montieren, Lenker gerade stellen. Siehe Anleitung, noch zu montieren: Lenker
